RT12280203 | RideTech HQ Coil-Over System (1961-1965 Falcon | Hub Spindle)
1961-1965 Ford Falcon | Hub Spindle
Description
Complete Coil-Over Suspension System | 1961-1965 Falcon
The Ridetech Coil-Over suspension system for the 1961-1965 Ford Falcon was built front the ground up to bring the falcon into the 21st century.

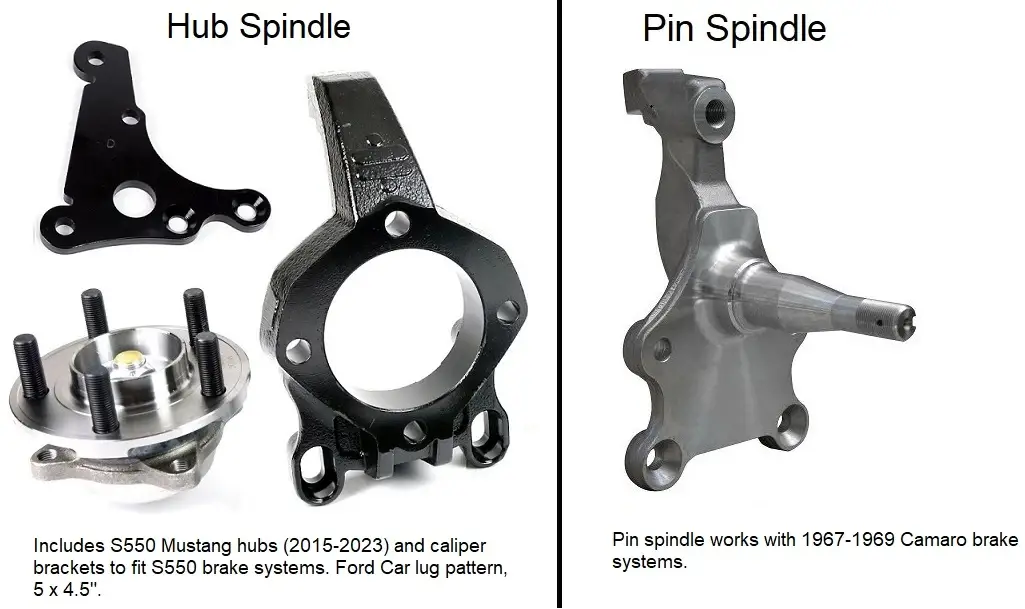

- “Hub” Spindles offer the same geometry improvements as the pin spindle but add the performance and simplicity of late model Mustang hubs and brakes. Includes S550 2015-2023 Mustang hubs for maximum strength, consistent braking and reduced maintenance. Compatible with 2015-2023 Mustang brake systems, OE and aftermarket (caliper brackets included). Minimum 17″ wheels. Hubs fit Ford car 5 x 4.5″ lug pattern and include 14mm studs.
- Bumpsteer reduced to less than 1/16 in.
- Mini-Starter required to clear Tru-Turn Draglink Adapter (not Included)
- Complete steering upgrade includes: Draglink (my require mini-starter for clearance), pitman arm (1 in. steering box sector shaft), idler arm, idler arm mount – compatible with manual steering, can be adapted to use Borgeson power steering system
- Zero to over 7 degrees of caster possible

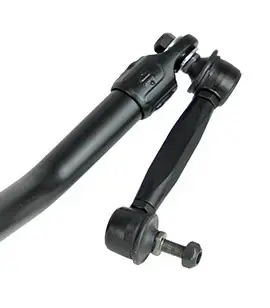

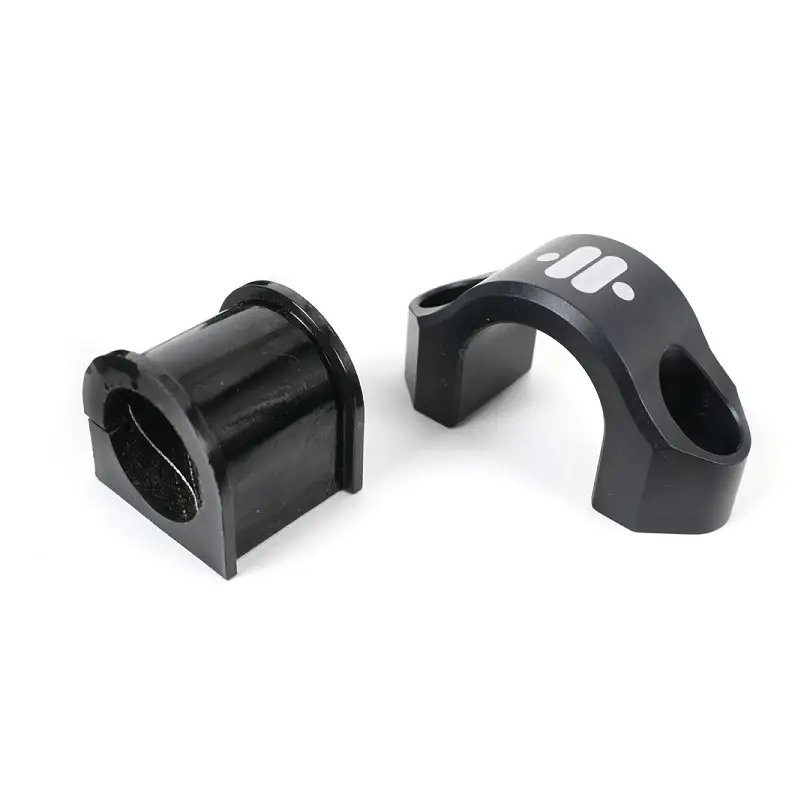

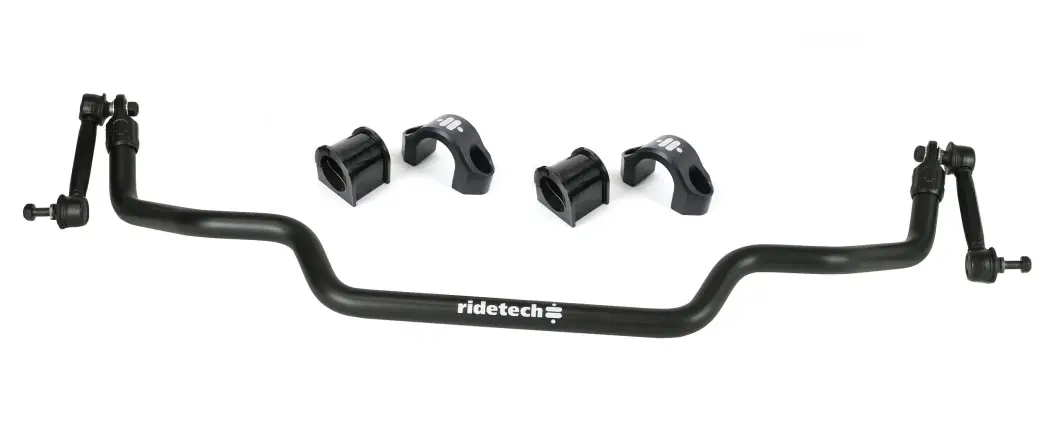

- 1 1/8 in. Solid Front Sway Bar – Rate 608 lbs/in
- When equipped with 225/40 -R18 tires, standard ride height is 22.75 in. ground to the fender lip
- Optional frame brace available to reinforce lower control arm mounts and subframe. Compatible with V8 engine mounts only.
REAR:
We chose to fix the rear suspension in much the same way we have done on many muscle cars originally equipped with leaf springs… swap in a 4-link.

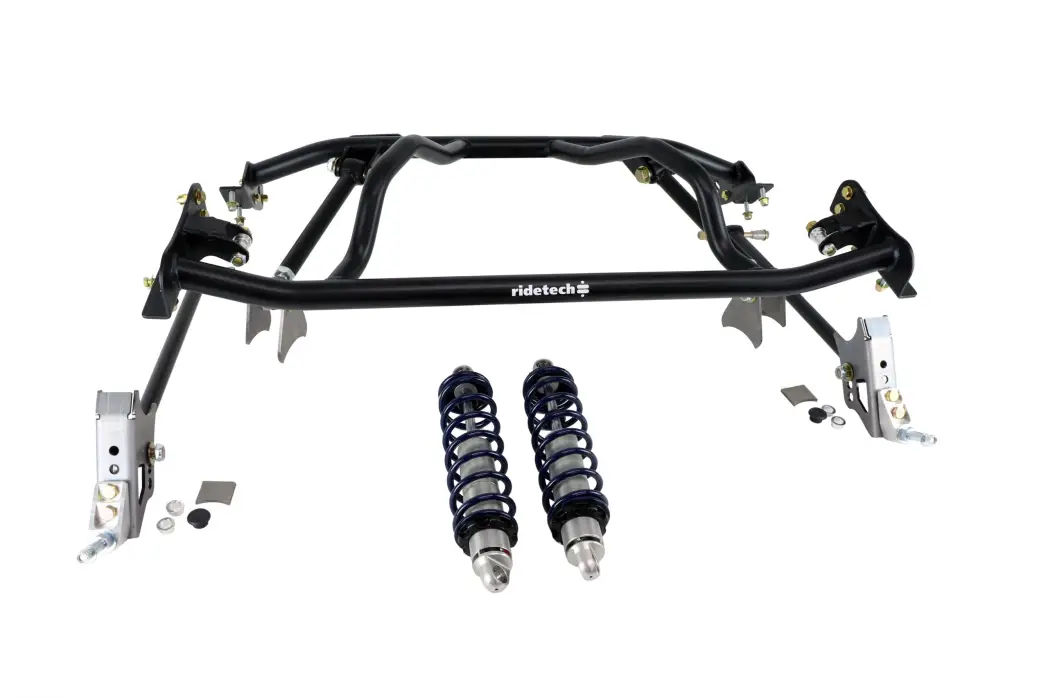

This rear bolt-on 4-link suspension system completely transforms the little Ford Falcon into a world-class handling machine, and at the same time provides an incredibly smooth ride and bind-free operation.
Starting off, the rear will accept up to a 225/40-R18 with a recommended backspace 5.50 in. – 6.00 in. and provide a ride Height: 18 ¾” ground to the fender lip.

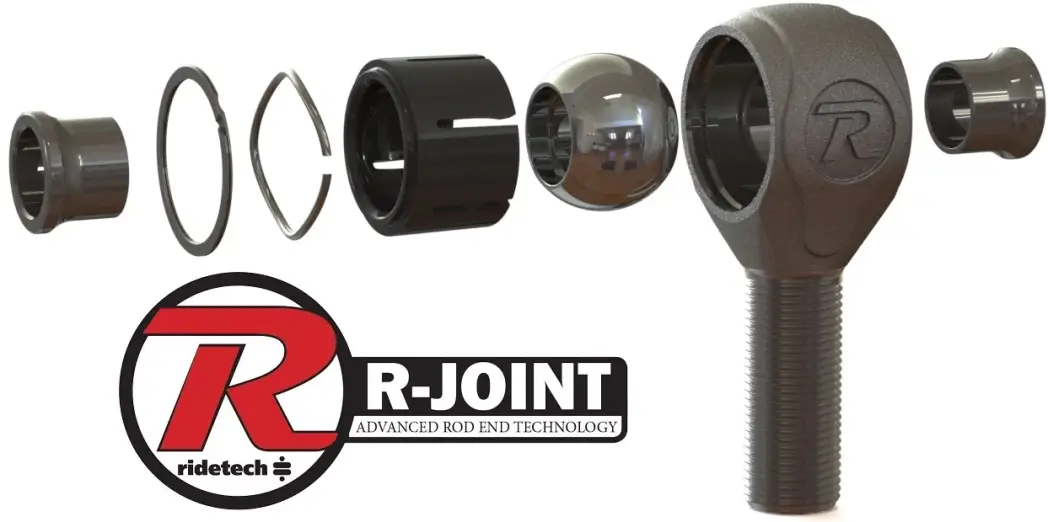

- Adjustable 4-link bars including R-Joints
- Triangulated 4-Link – no need for pan hard bar and keeps rear end movement vertical
- Bolt-in cradle
- Upper control arm axle mounts require welding
- Spacers included to fit multiple factory leaf spring mounts (2 in. and 3 in.)
- 3 mounting holes for lower control arm at axle
1 – Top hole: Anti-squat 74.4 percent – Instant Center 72.8 in. – Roll Center 12.95 in.
2 – Middle Hole: Anti-Squat 108.1 percent – Instant Center 58.35 in. – Roll Center 11.67 in.
3 – Bottom Hole: Anti-Squat 135.5 percent – Instant Center 50.25 in. – Roll Center 10.35 in.

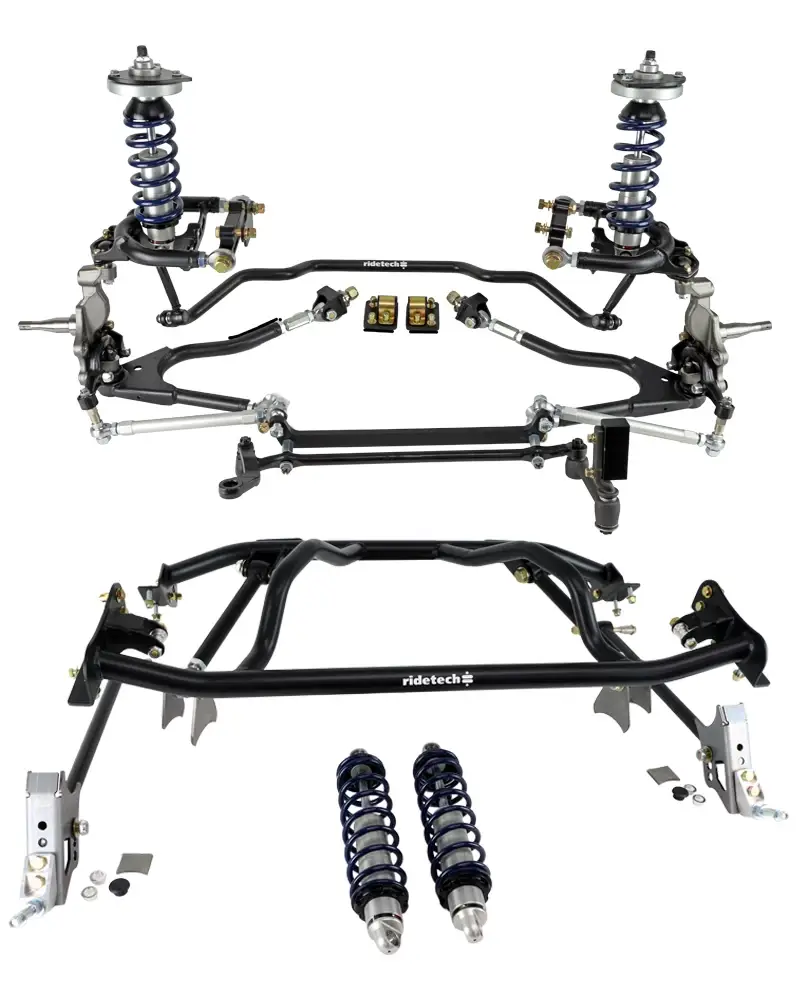

HQ Coil-Over suspension system for 61-65 Ford Falcon includes:

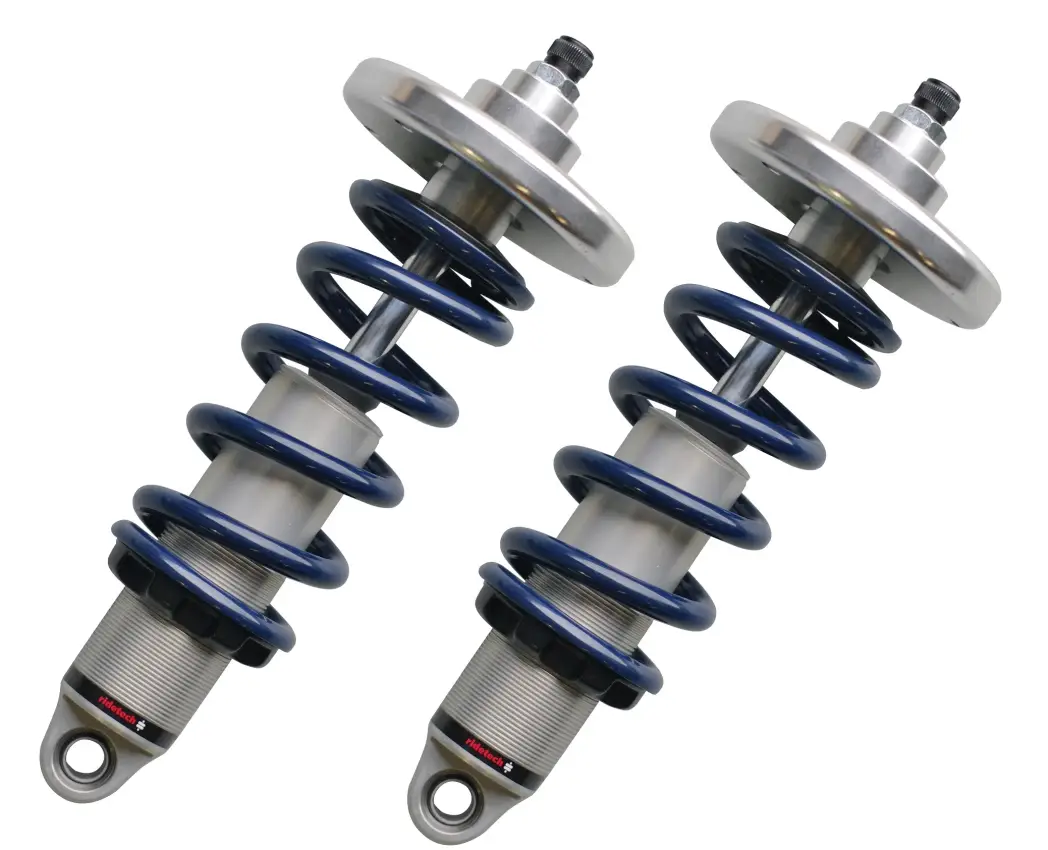

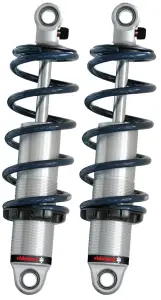

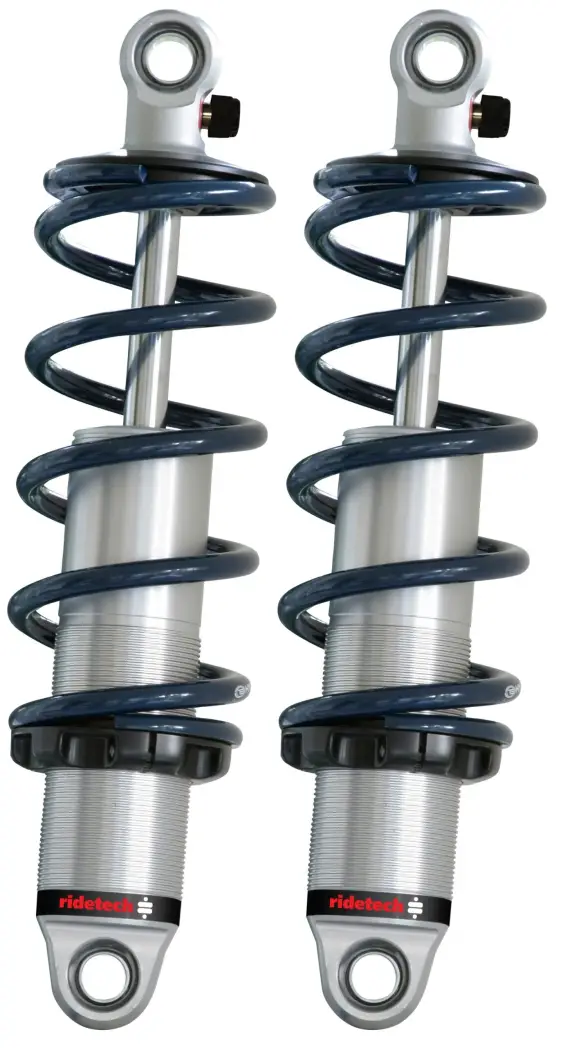

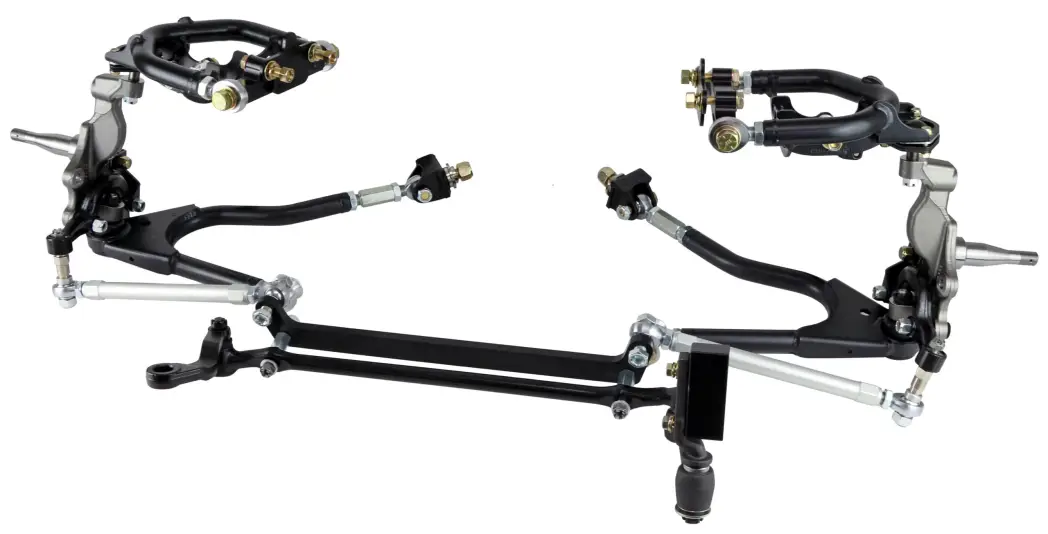

Front and rear HQ Series Coil-Overs, Front upper and lower StrongArm tubular control arms, TruTurn System, Front Sway bar, Rear 4-Link system.
Also fits Convertibles!
