RT12330201 | RideTech HQ Coil-Over System (1973-1979 F100 Pickup | Pin Spindle)

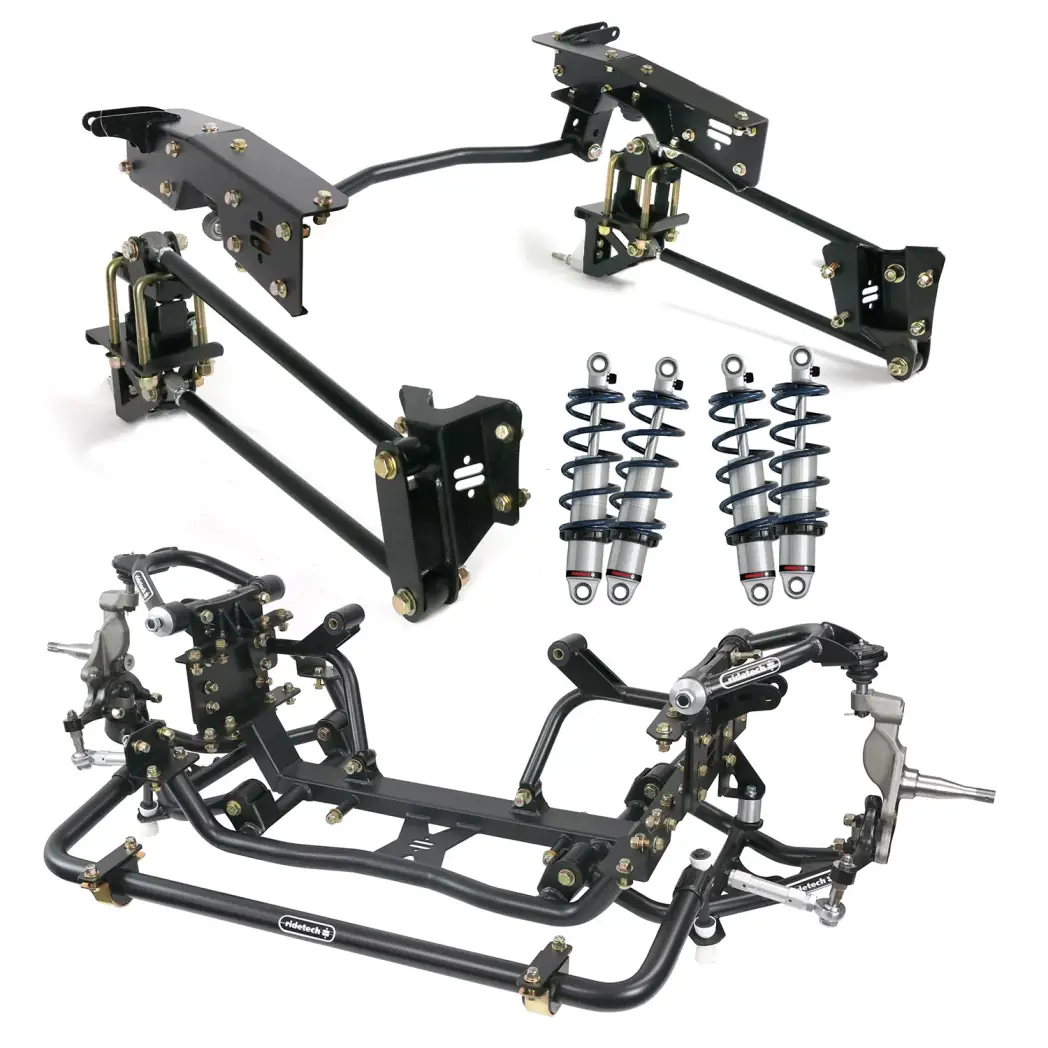

Complete Coil-Over Suspension System | 1973-1979 F-100 2WD

• Removes bulky, heavy, poor handling twin I-beam suspension

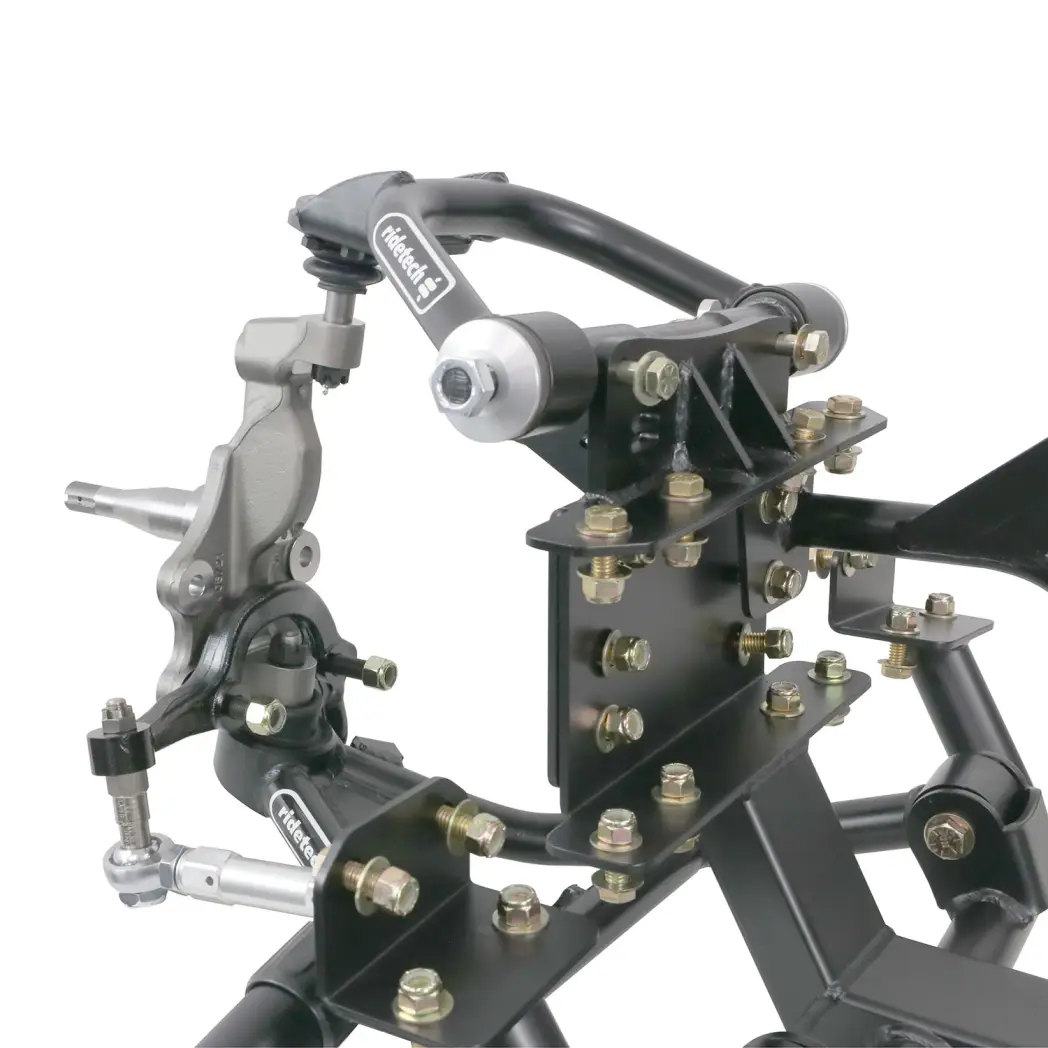

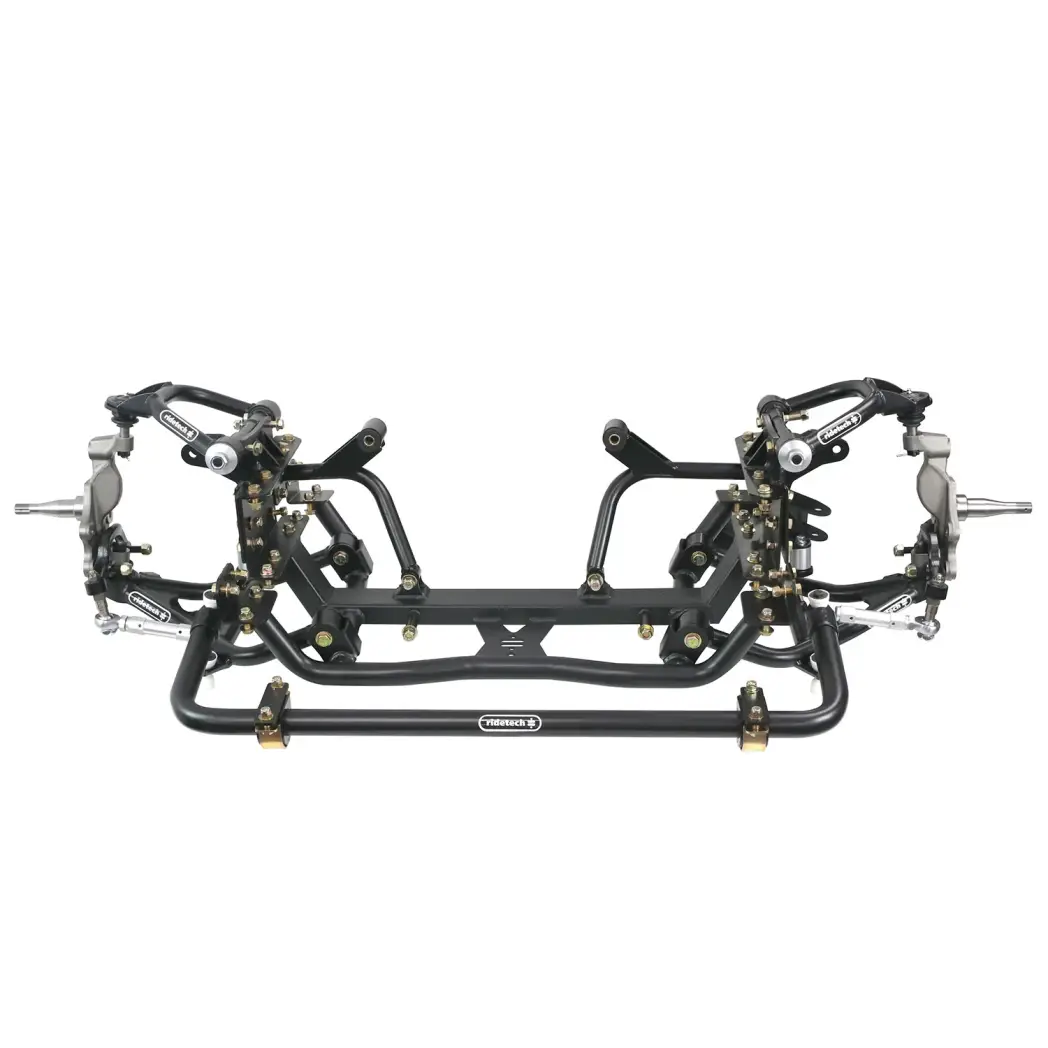

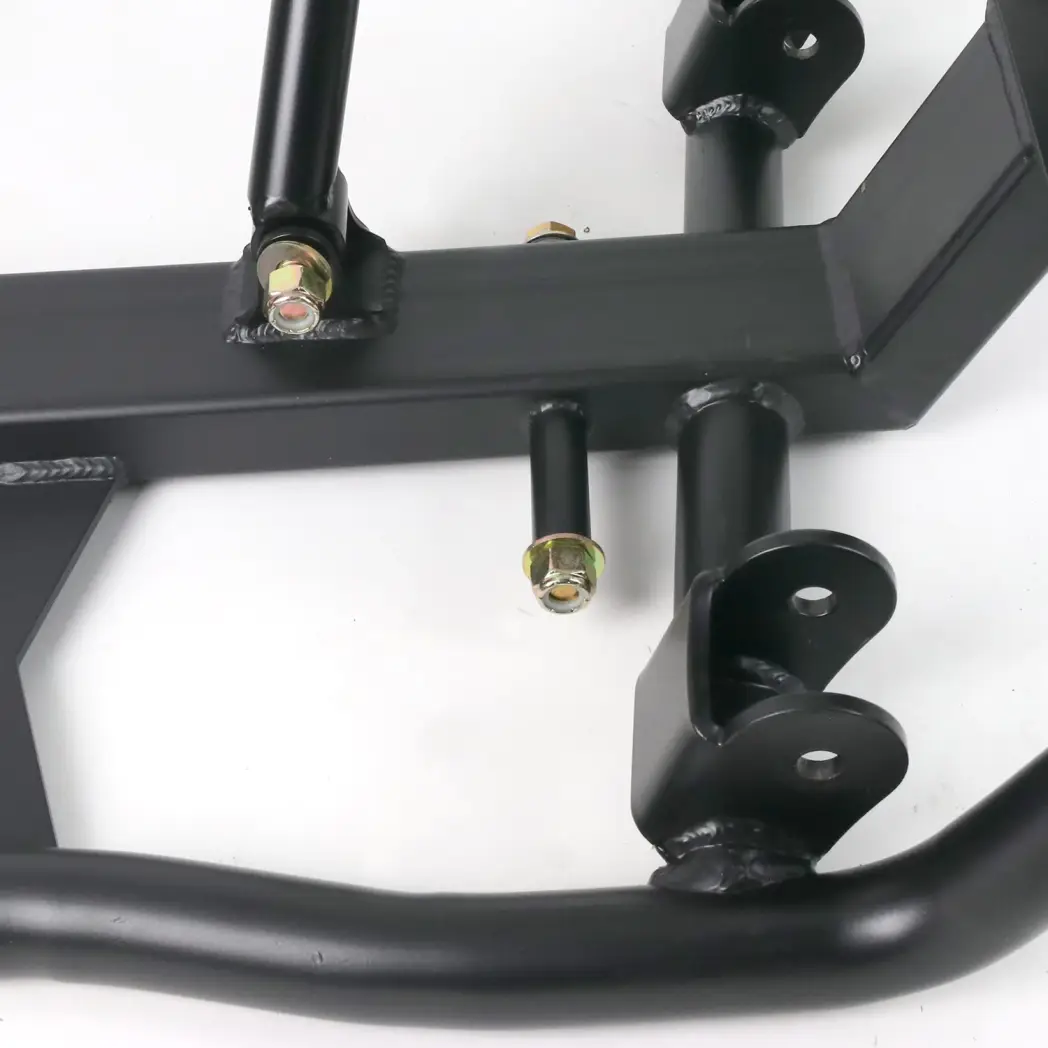

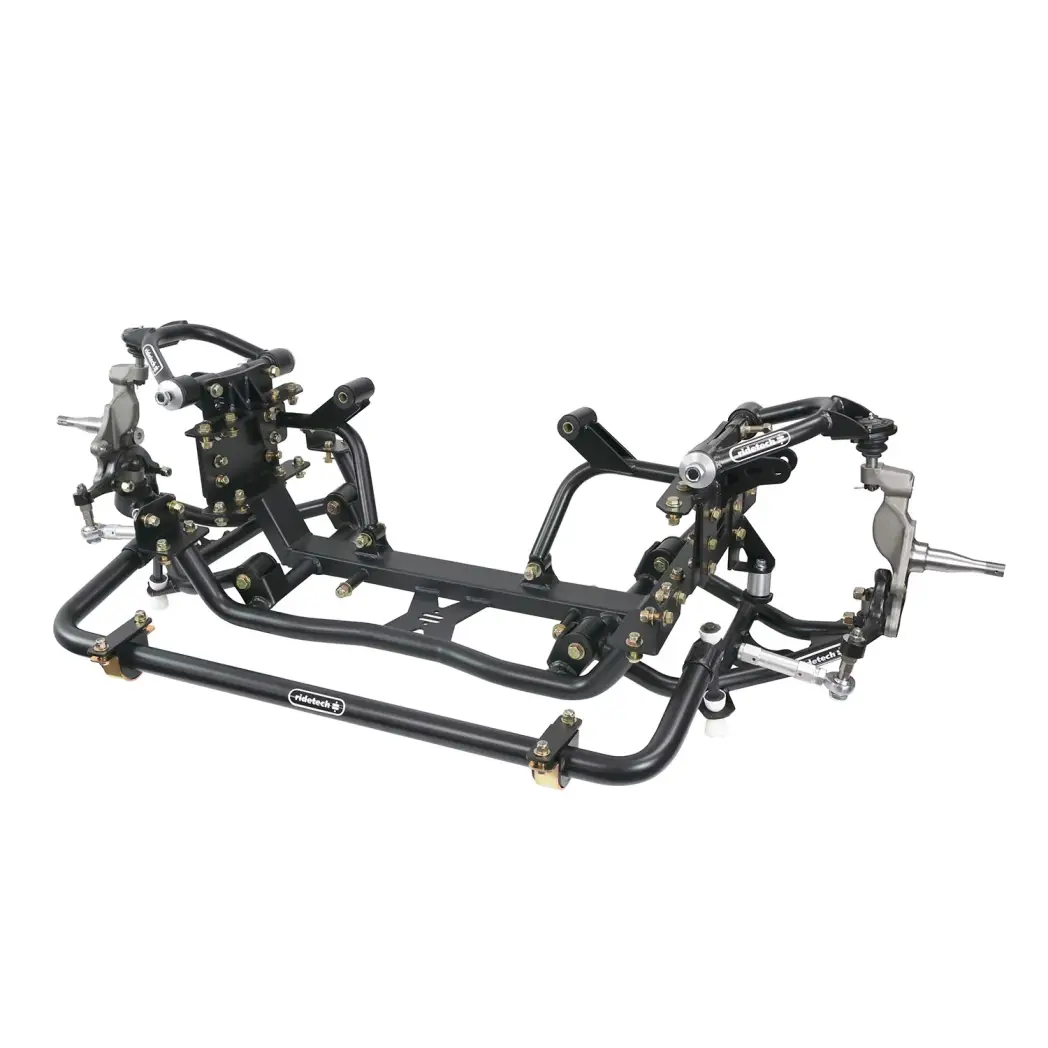

• Bolt-in cradle is super strong and strengthens the front of the truck while providing structural mounts front control arms – utilizes substantial “H” style design compared to other “I” style crossmembers.
• Superb suspension geometry, built without compromise – vastly superior to adapted salvage yard “Crown-Vic suspension swaps” or “street rod style” / Mustang II front systems with optimized roll centers and anti-dive.

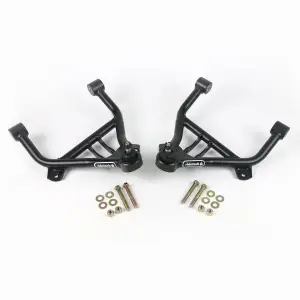

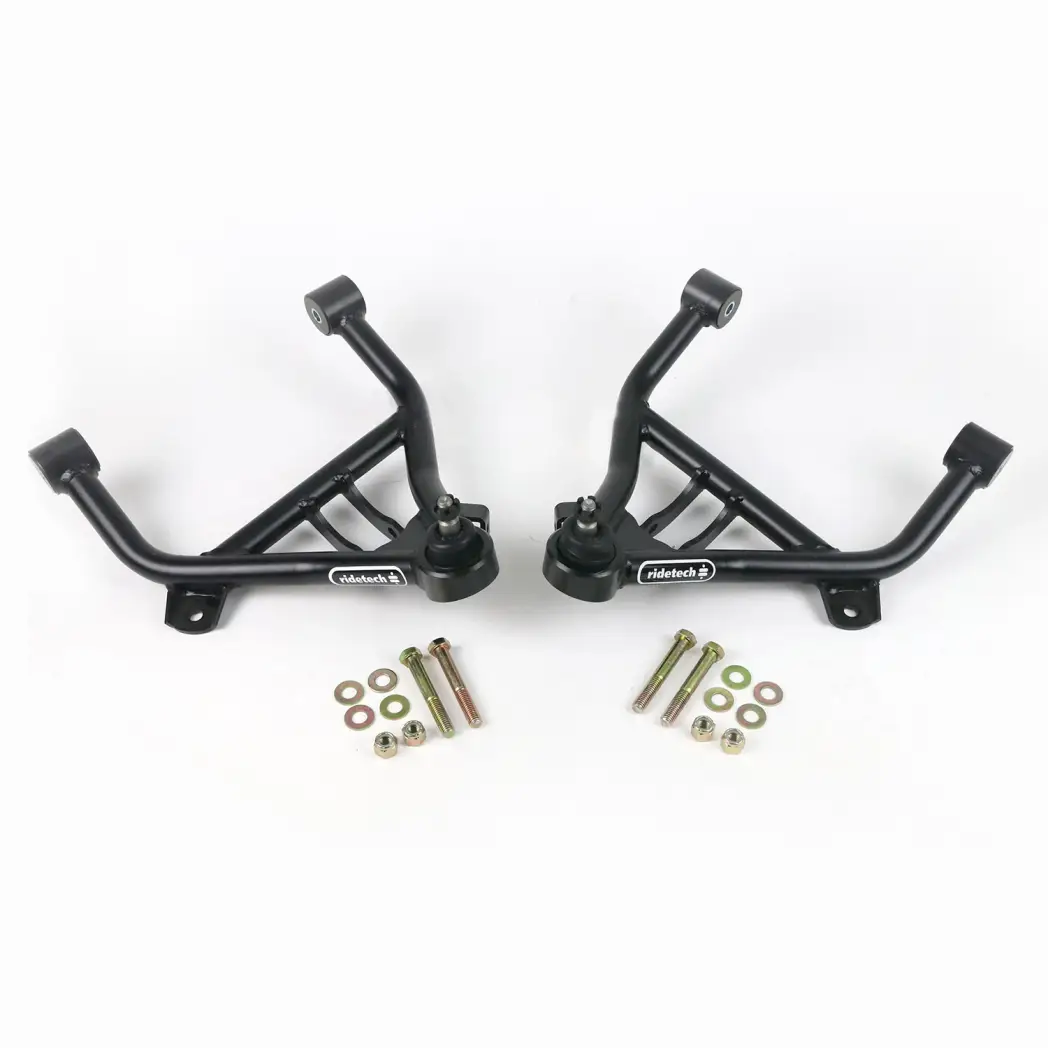

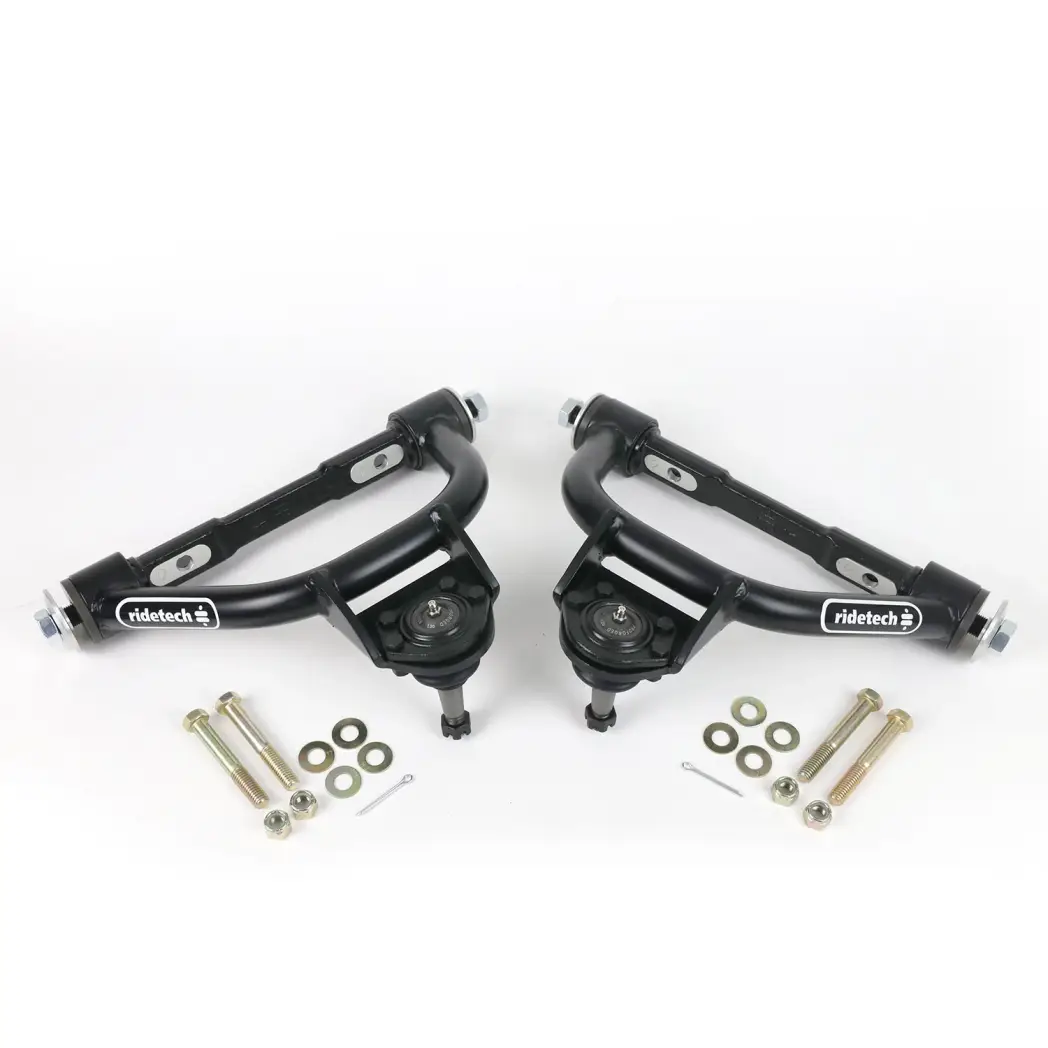

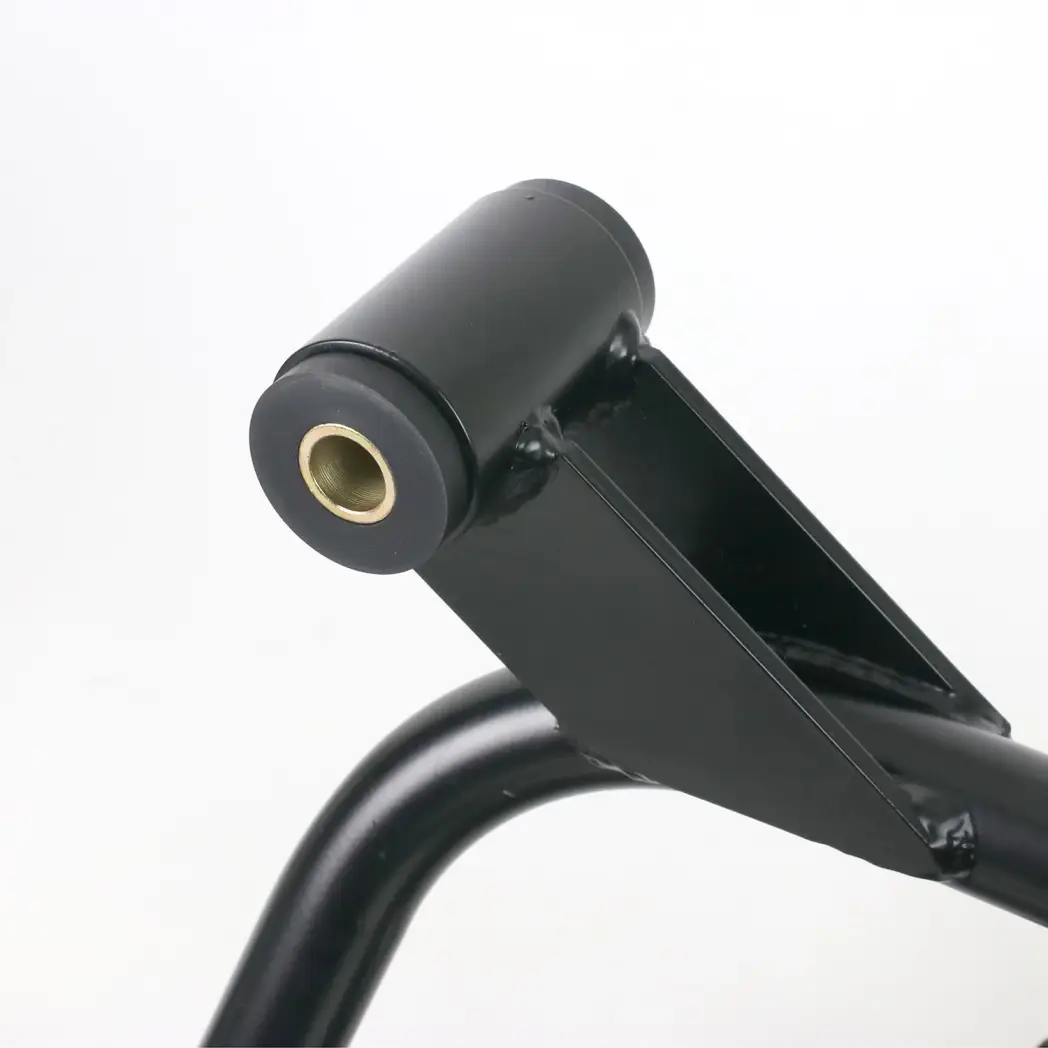

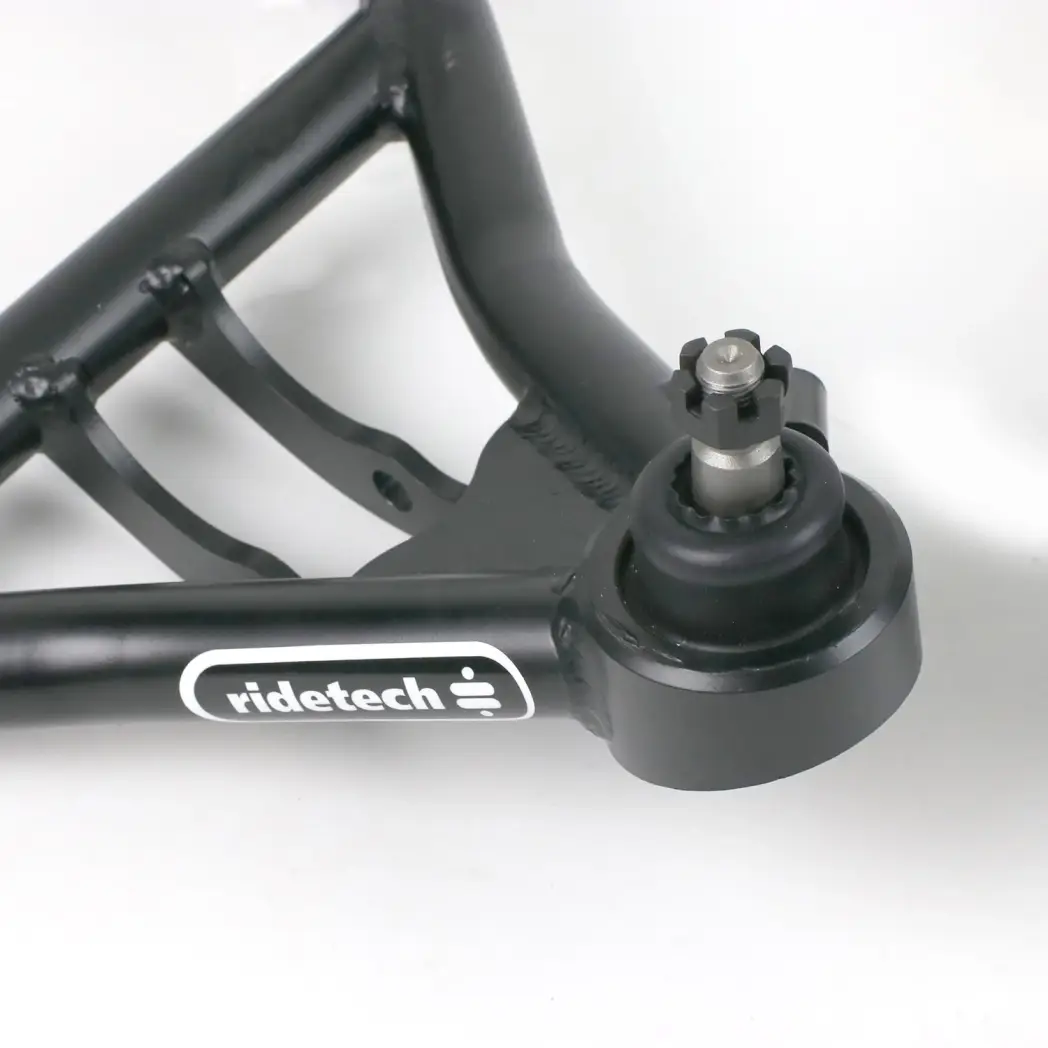

• Delrin bushings on upper and lower control arms provide smooth, squeak-free long life

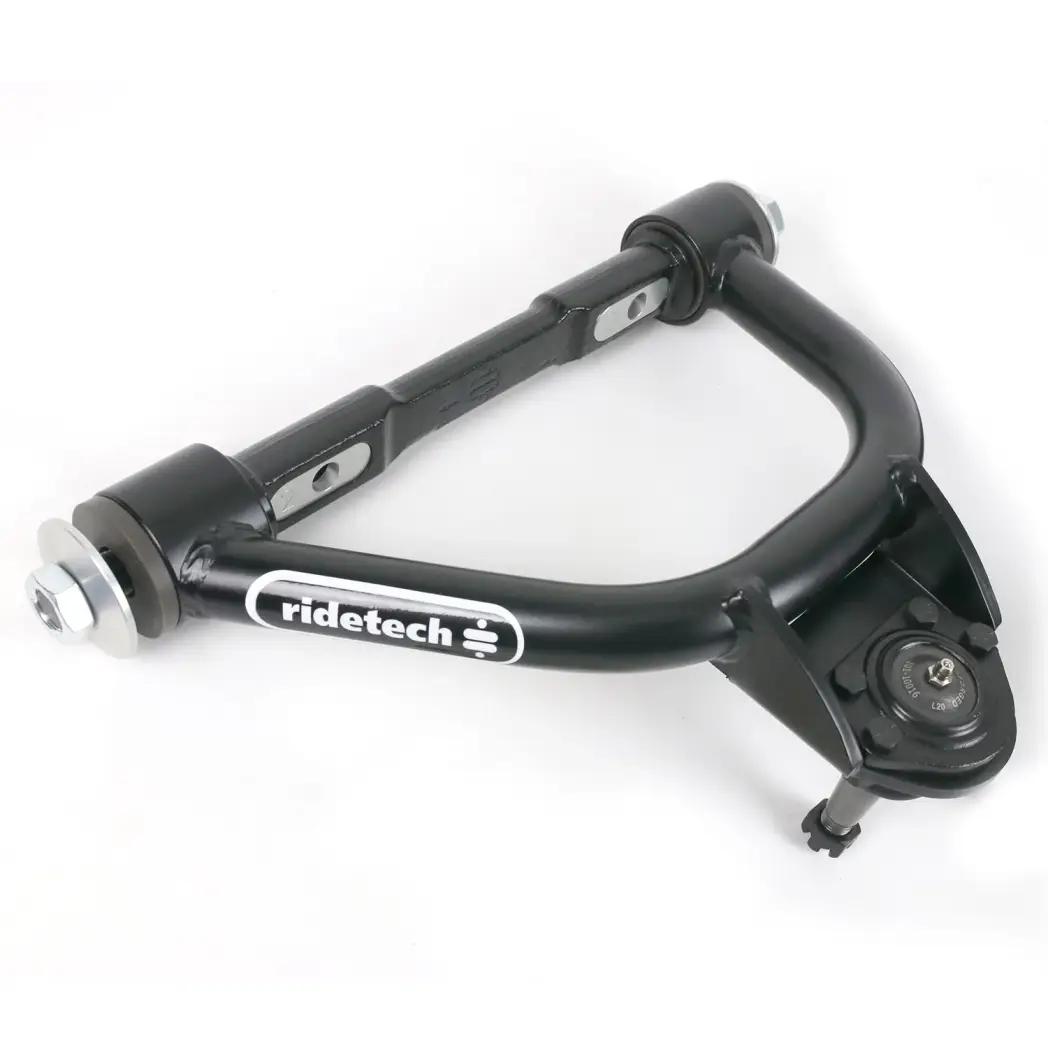

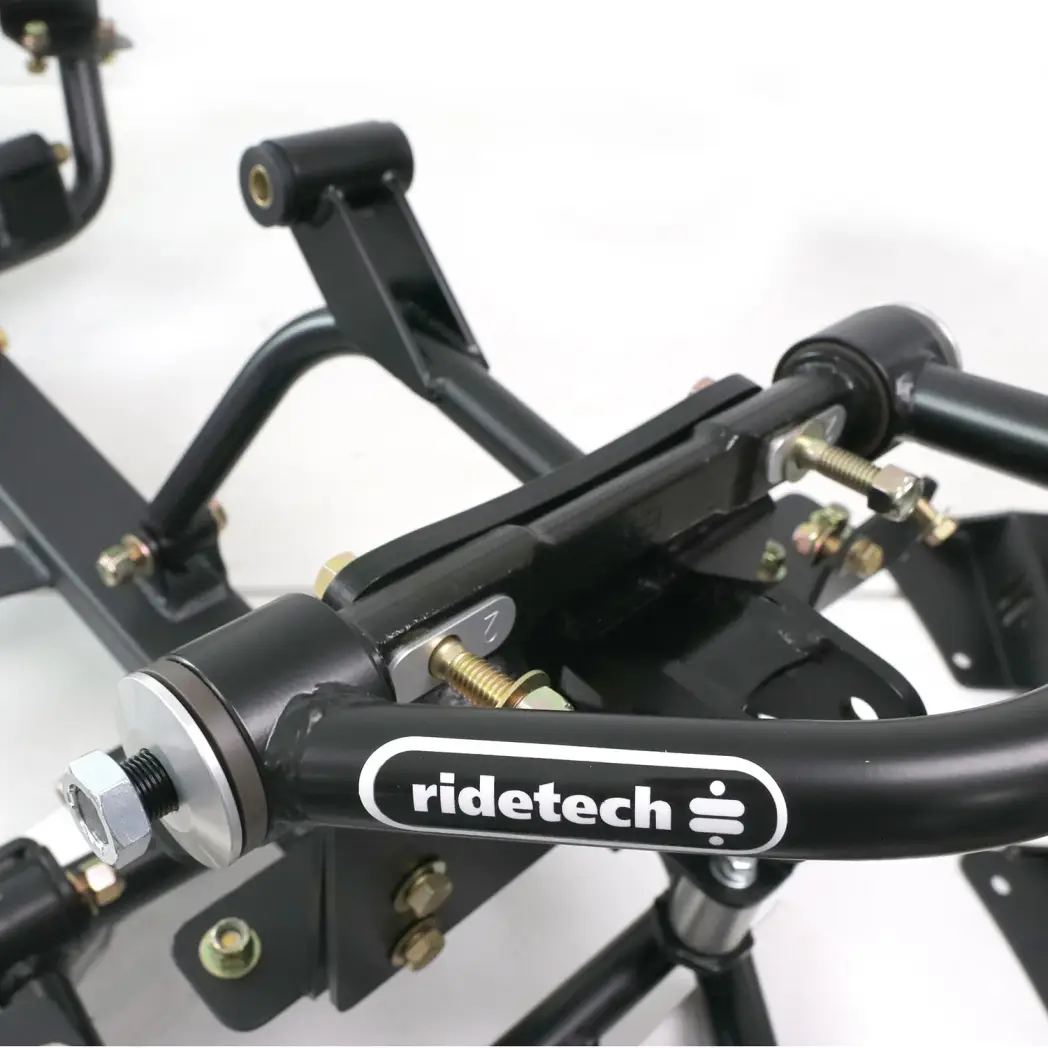

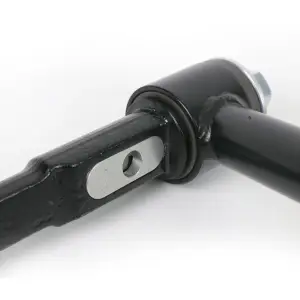

• Upper control arm cross shaft allows for easy alignment and use of caster slugs
• Adjustable steering stop on lower control arm

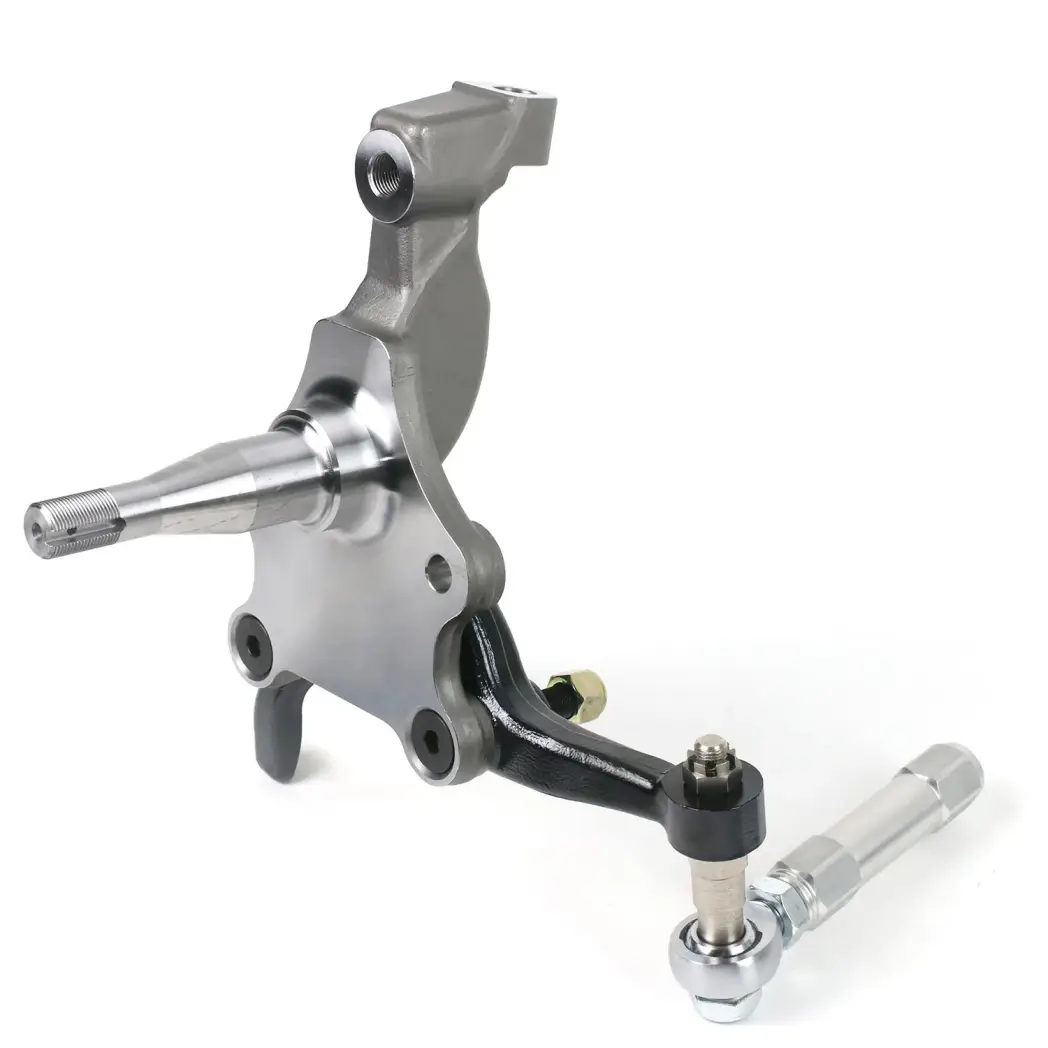

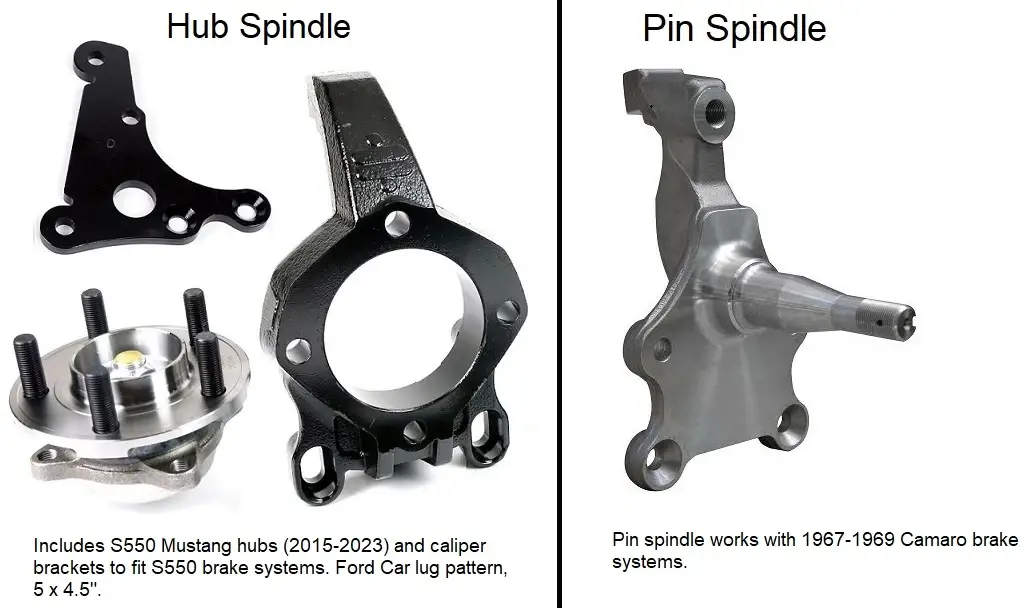

• Utilizes Ridetech tall “pin” spindle which uses “AFX brake kits” – many brake kits (including Wilwood) are dual drilled for 5 x 4.5″ or 5 x 4.75″ lug pattern
• Brake kit for the stock 5 x 5.5″ lug pattern with Ridetech pin spindle are available as well
• Increased camber gain with tall spindle, 5-8 degree’s caster for improved high speed stability
• 63.5” in front width (wheel mount surface to wheel mount surface) – provides options for “traditional” offset wheel choices (4″ narrower than Crown Vic)
• Fits 14 inch and larger wheels. If using more than 4.5 inches of backspacing,18 inch wheels are required.
• Motor mount “loops” connect cradle to frame rails to reinforce frame
• Motor mounts options for Modular Ford, Ford FE, and Small Block Ford, Chevy LS / Small Block / Big Block

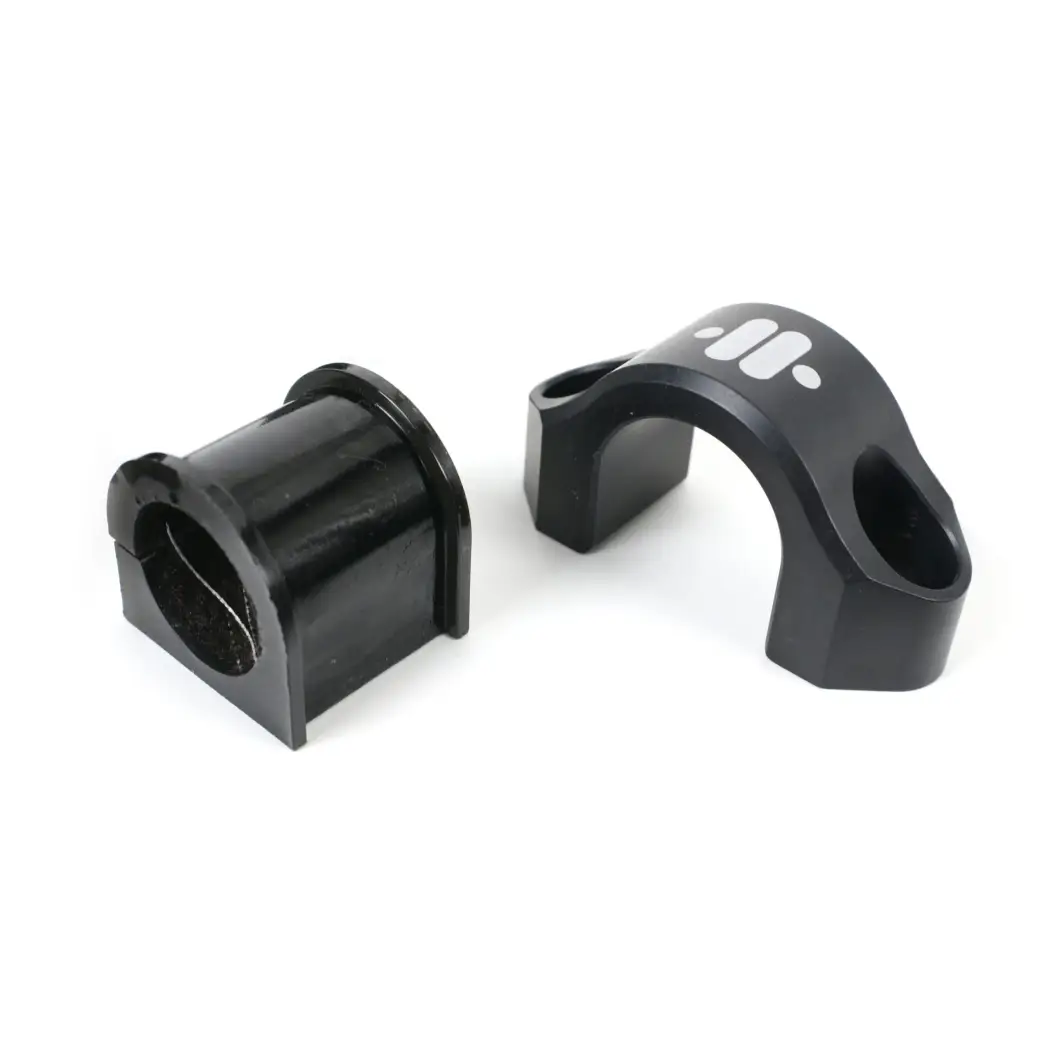

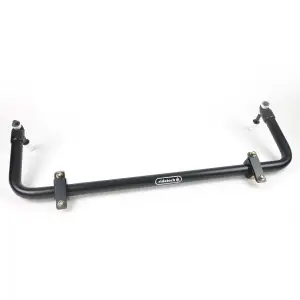

• Front sway bar measures 1.5″ x .250 wall and provides confident cornering and smooth ride. Includes billet aluminum frame straps (anodized black) and low friction bushings.
• Adjustable bump stops
• Rack and pinion steering conversion with 15.5” center to center bushing mounts for 79-93 Mustang style steering rack
• Includes billet adjustable tie rods
• Bump steer has been virtually eliminated
• Adaptable to stock steering column using kit 12319505, includes column adapter, U-Joint and shaft.
• High quality satin black powder coat finish
• Entire system saves approximately 130lbs. from the front of the truck.

• Removes factory leaf spring suspension and bracketry

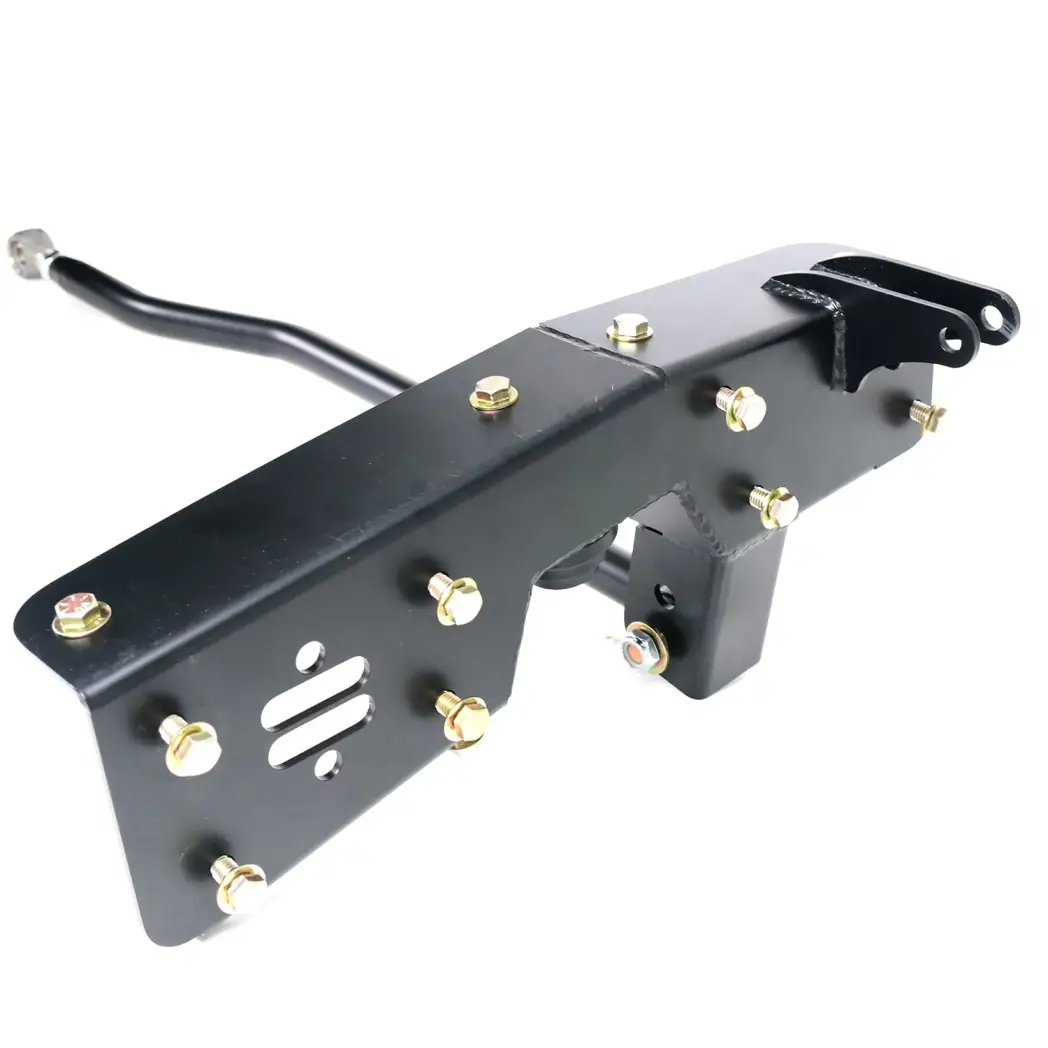

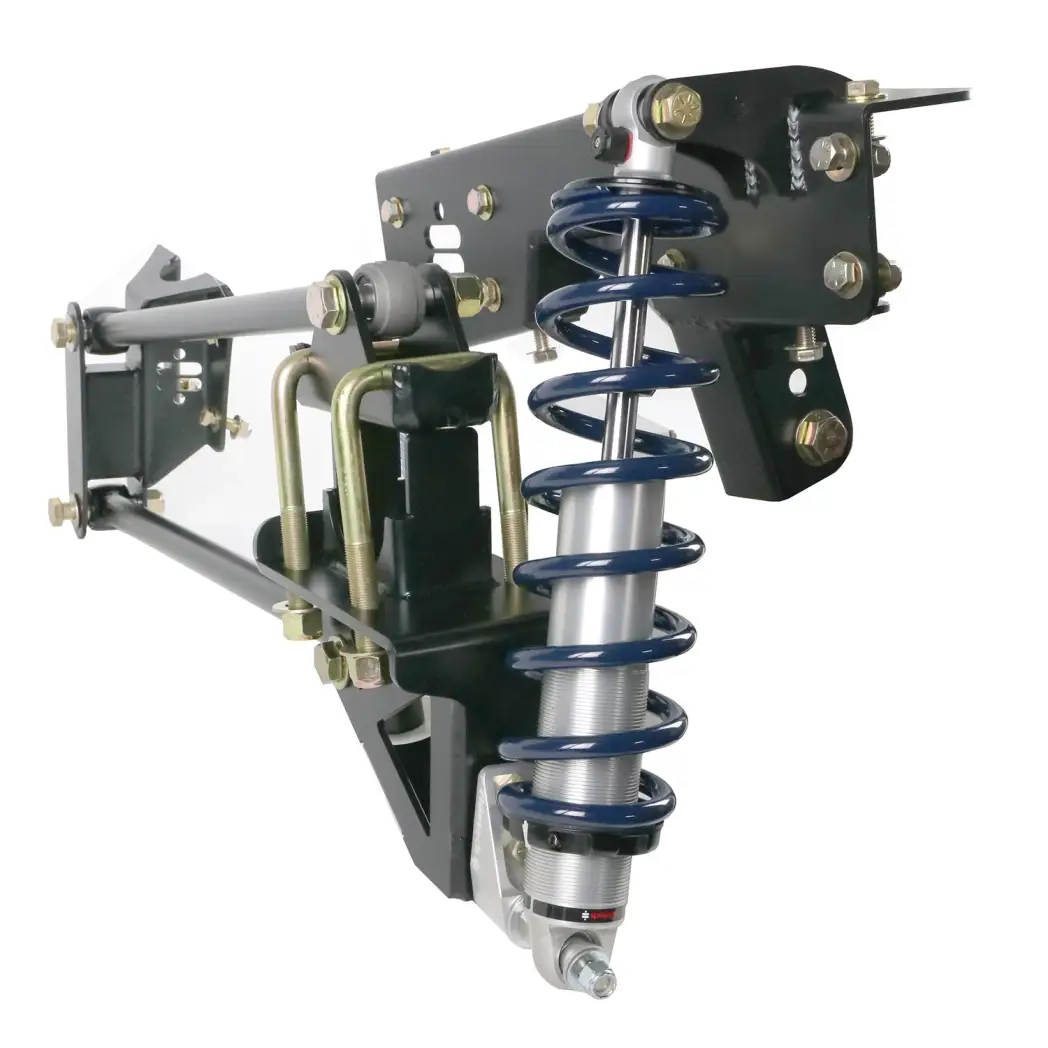

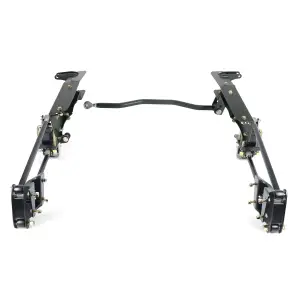

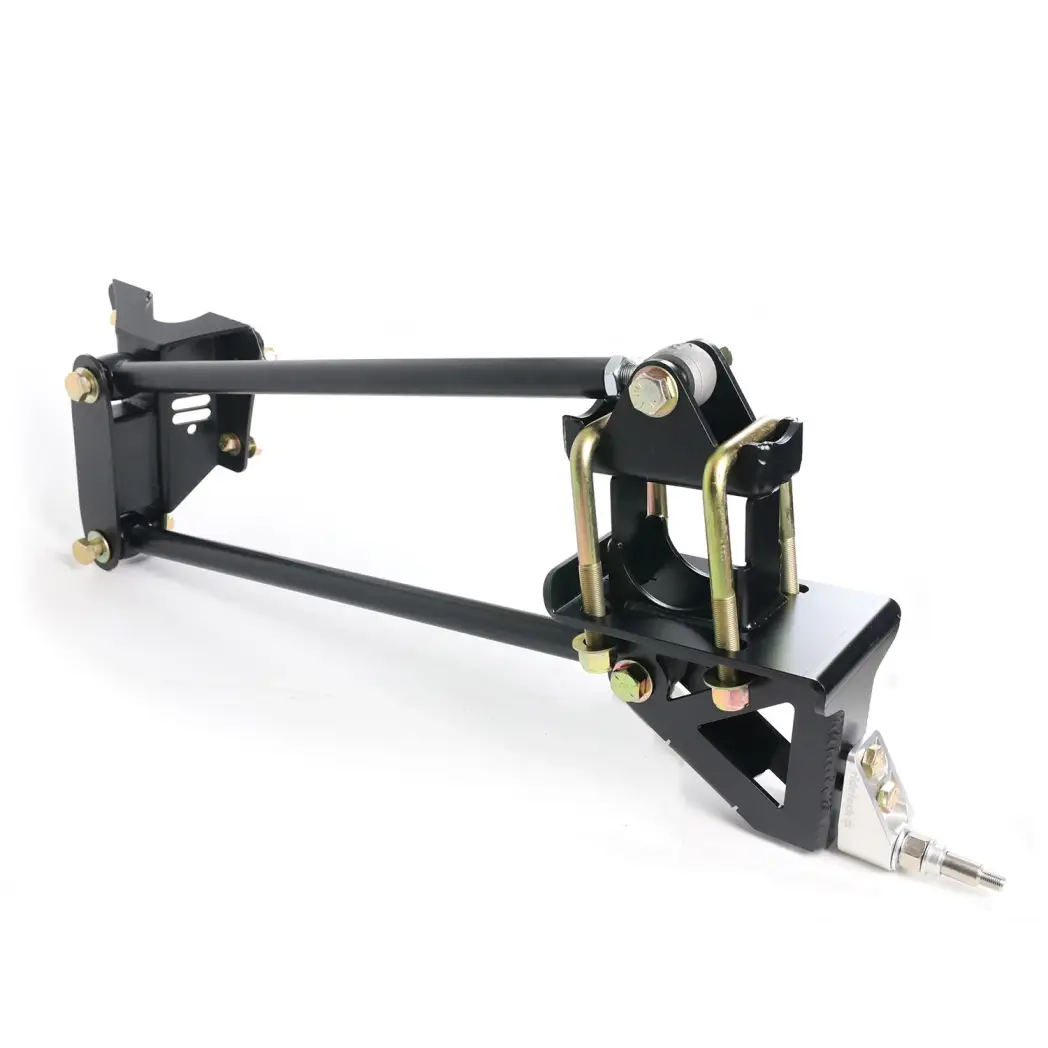

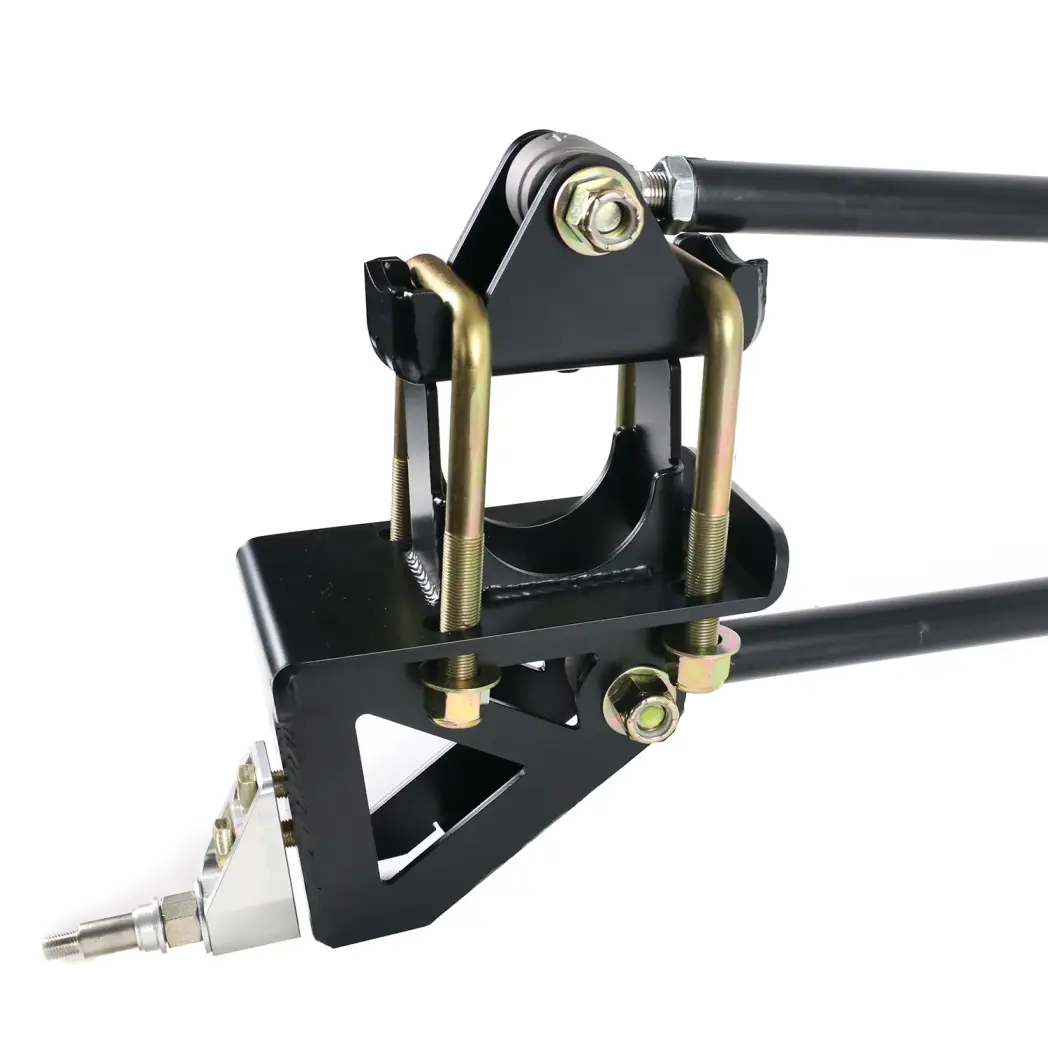

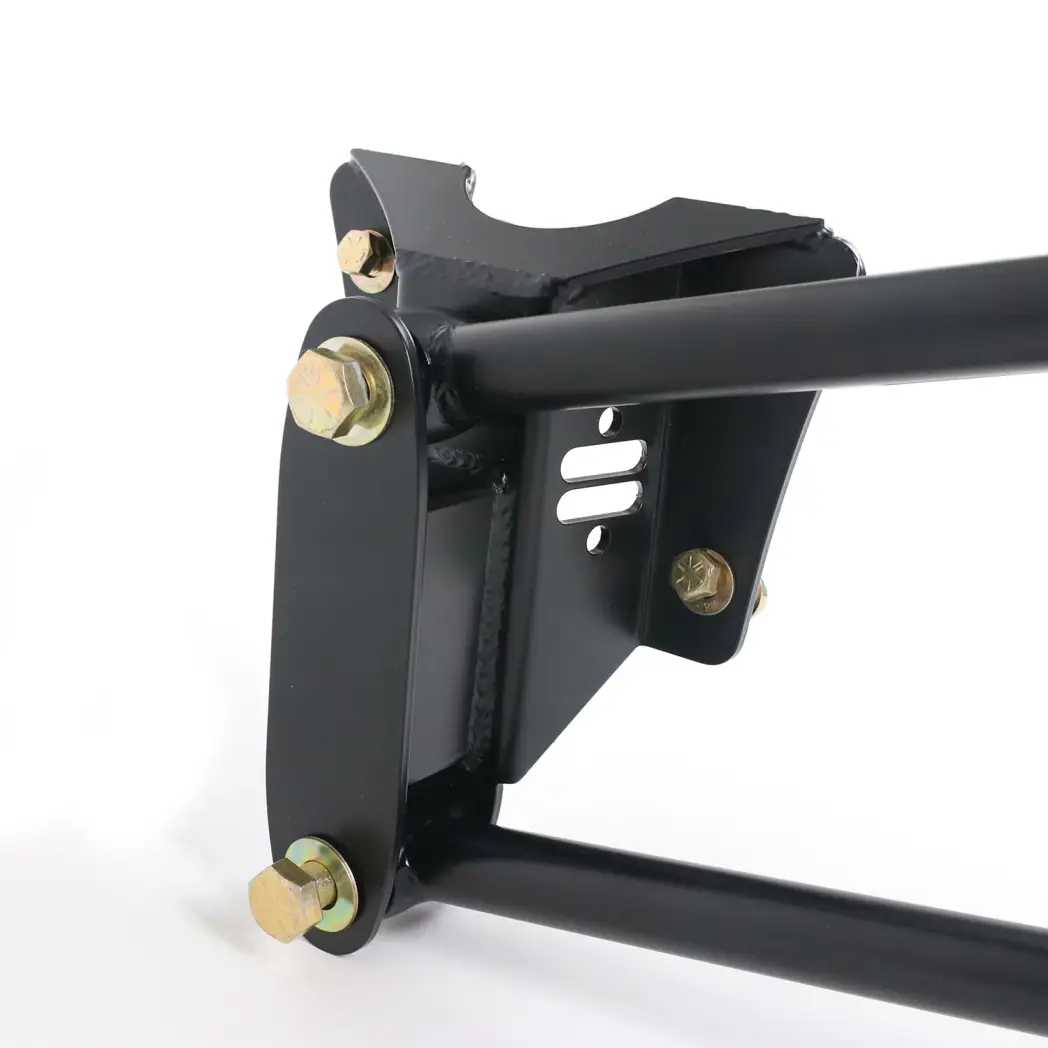

• Complete parallel 4-link with panhard and c-notches
• Works with Coilover or Shockwaves Air Suspension

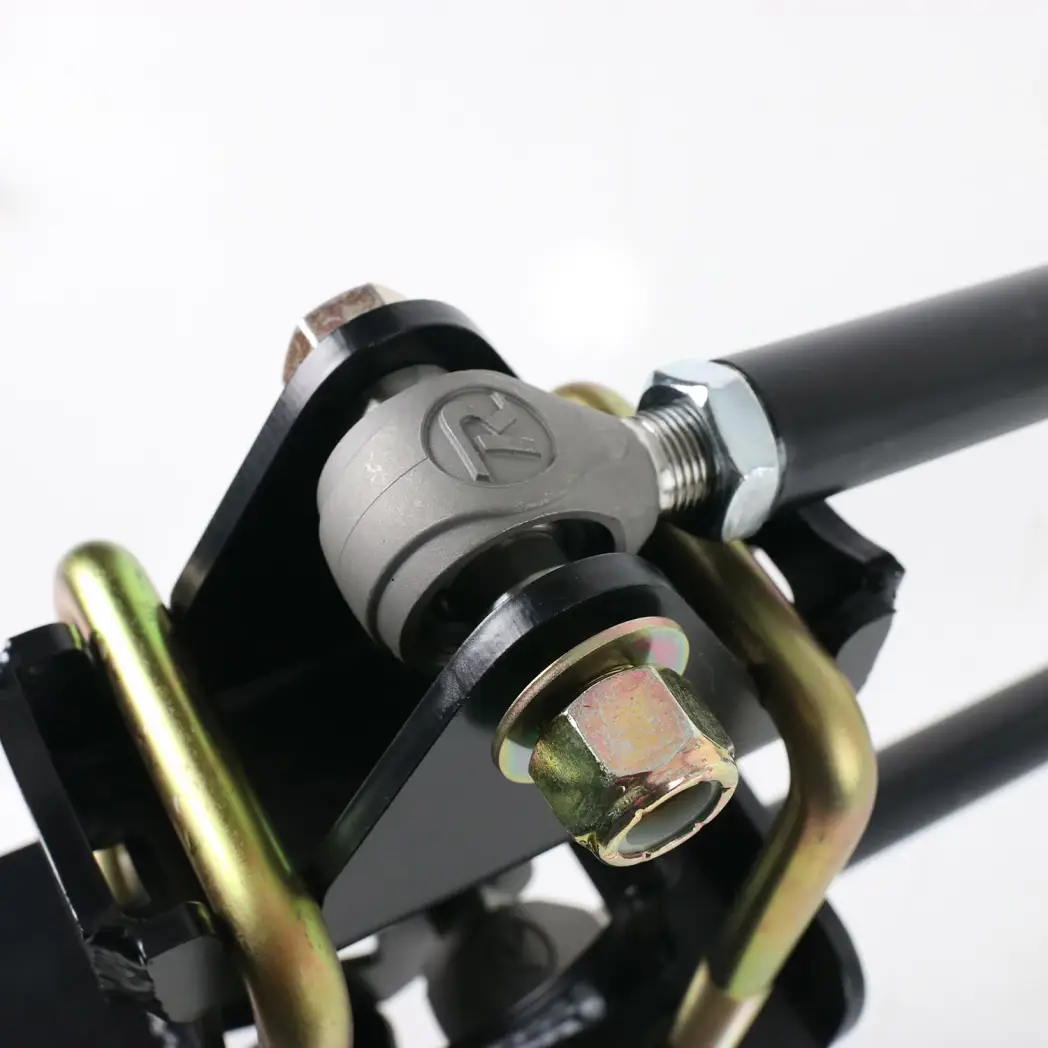

• Includes R-Joints on all links for smooth, bind free, quite operation and long life
• Optimized roll center and anti-squat (60% anti-dive) for amazing traction and elimination of wheel hop
• High quality satin black powder coat finish
• Reduces rear weight by 50 lbs
• 1965-1972 – No bed modification needed
• 1973-1979 – Slight bed support rail modification needed (not visible from the top side of the truck
• Compatible with short bed and long bed trucks

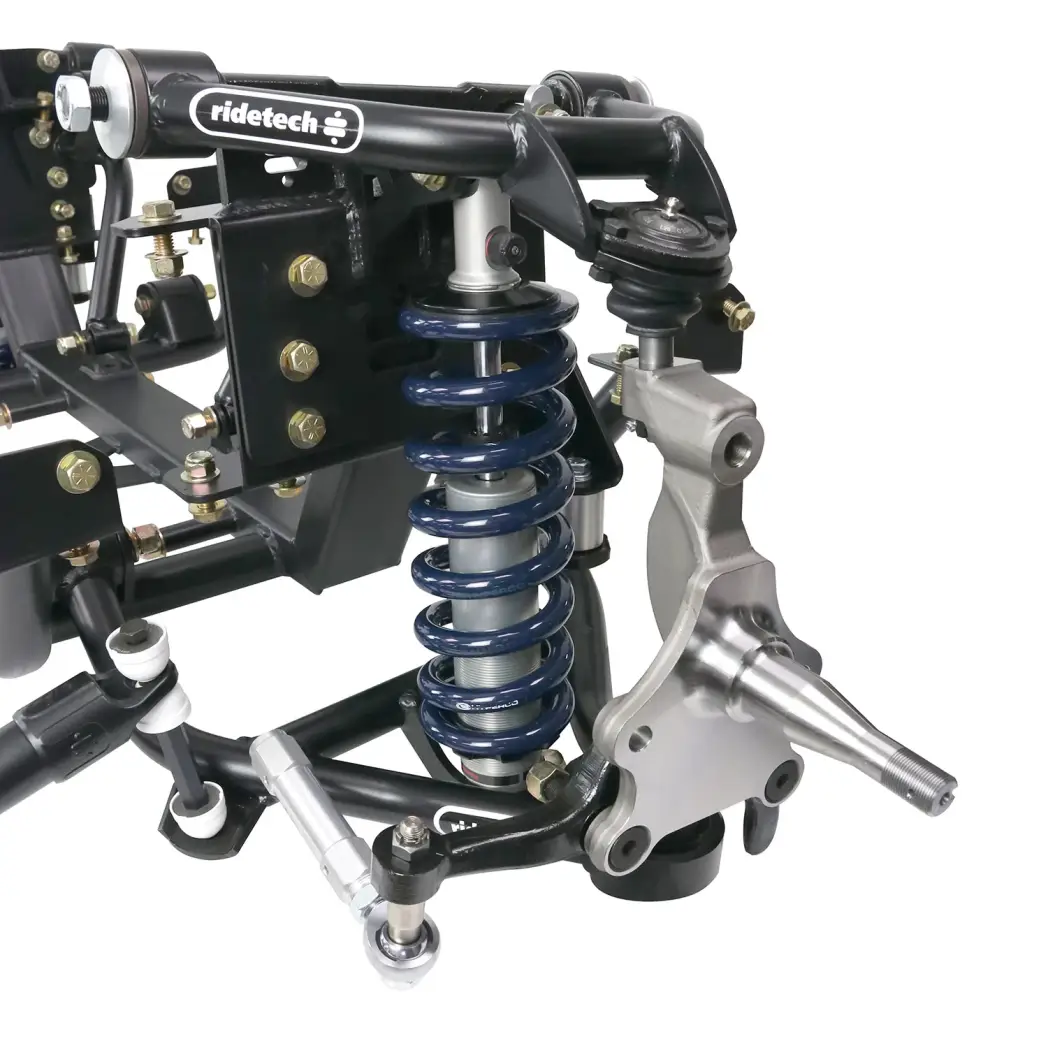

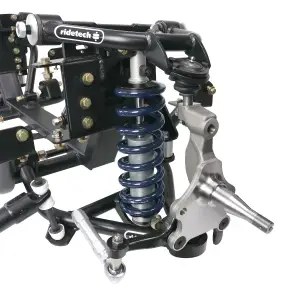

Coil-Over suspension system:

This system uses Ridetech coil-overs to provide adjustable suspension to your classic Ford. The coil-over system provide a small amount of adjustable ride height and easy to swap Hyperco springs for simple spring rate changes if needed. The system is designed to lower ride height by approximately 5”.

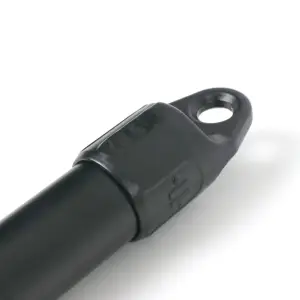

With 24-position rebound adjustment clicks, you fine tune the shocks to your driving preferences and vehicle demands. Advanced Fox Factory Shock Technology hides within the shocks.

The Fox Factory monotube-gas-pressure design features large 1.834″ pistons, heavy duty 5/8″ shafts, and impact-forged aluminum bodies.

Shock calibrations and spring default rates are based on more than 20 years of extensive experience on the street, highways and race tracks. If you find you need stiffer or softer spring than provided in the kit we can help you find the best spring rate for your use.
