BDS554H | BDS Suspension 4 Inch Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Leaf Springs, NX2 Nitro Series Shocks
Lift Kit For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Leaf Springs, NX2 Nitro Series Shocks
Description
Increase ground clearance on your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

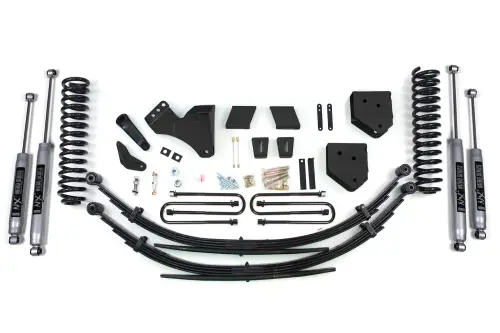

Up front the lift kit includes diesel-specific Pro-Ride coil springs, heavy-duty radius arm drop brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.
In the rear this kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.
Features & Benefits
- Easy, 100% Bolt-on installation
- Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
- Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
- Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
- Fabricated steel blocks provide level stance from front to rear
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Pro-Ride Coil Springs
A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.
Steering Correction
To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.
Rear Lift Option
Block Kit
- Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
- Blocks made of steel for high strength.
- Designed to provide correct pinion angles.
Leaf Springs
- Eliminates any need for a lift block.
- Reduces axle wrap and creates a more controlled and stable feel.
- Multi-leaf progressive design for a smooth ride.
- Maintains factory payload weight ratings.
Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- If equipped with 2-piece driveshaft, a driveshaft alignment kit may be required
Installation
Est. Install Time :
8 hrsDifficulty Level :
Moderate
Specialty Tools Needed :
Pitman Arm Puller
Specification
- Front Lift Method : Coil Spring
- Rear Lift Method : Leaf Spring
- Shocks Included : Yes
- Front Lift Height : 4"
- Rear Lift Height : 6"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2008 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2008 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2009 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2009 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2010 | Ford | F-250 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
2010 | Ford | F-350 Super Duty | ALL | 4WD | DIESEL | ALL | ALL |
Component List
1 BDS013412 08 Ford F250/350 4in Front Box Kit
1 BDS033411 2005-2023 Ford F250/F350 Superduty 4" Coil Kit - Diesel
1 BDS85415 Steering Stab 23.9 x 14.3 - EB1/EB1
2 BDS85700 Shock- 25.20 x 15.20 x 2-3/8 - S50/EB2
2 BDS85760 Shock- 33.00 x 19.25 x 2-3/8 - EB1/EB1
4 UBT4032 Automotive Axle U-Bolt - Round
Tires & Wheels
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 4.5 in. Backspace
Details
- BDS554H
- BDS554H
- 840416417487
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
