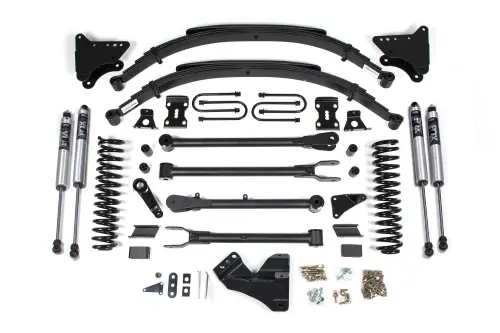

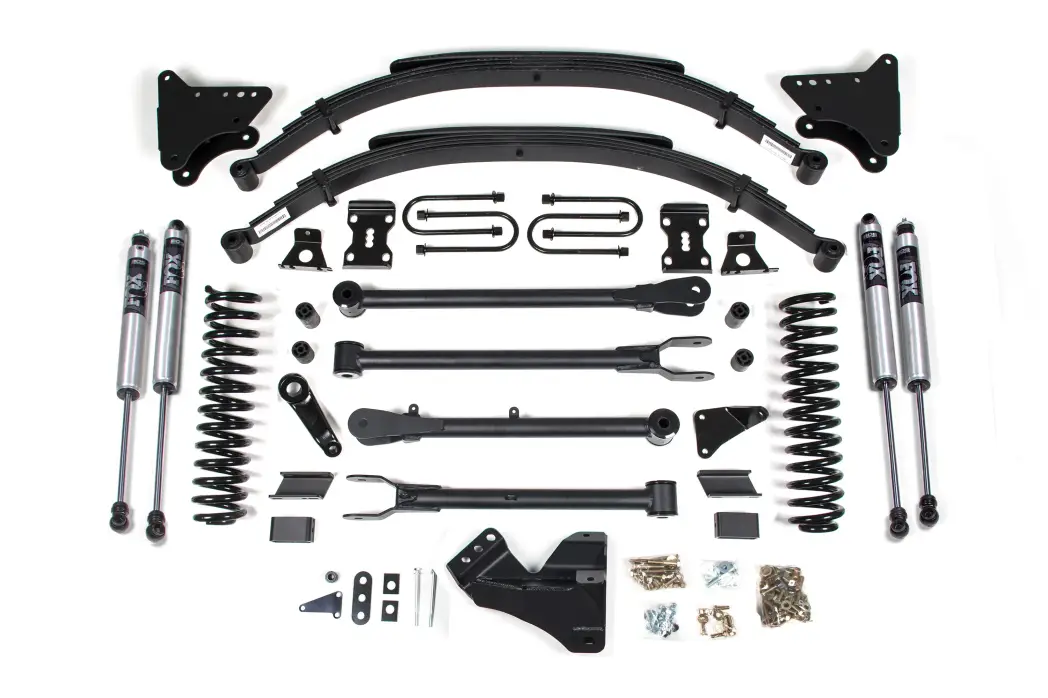

BDS555FS | BDS Suspension 4 Inch Lift Kit With 4 Link For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Leaf Springs, Fox 2.0 Performance Series Shocks

Lift Kit With 4 Link For Ford F-250/F-350 Super Duty 4WD | 2008-2010 | Diesel | Rear Lift Leaf Springs, Fox 2.0 Performance Series Shocks

BDS555FS
Pricing: $5,893.00
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Raise the height of your 2008-2010 Ford F250 and F350 Super Duty diesel truck with this 4-inch lift kit and 4-Link conversion from BDS Suspension. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 35" tires.

Up front the lift kit includes diesel-specific Pro-Ride coil springs, 4-link control arms with conversion brackets, forged drop pitman arm and track bar bracket for steering correction, sway bar relocation, brake line brackets and precision tuned nitrogen charged shocks.

In the rear the base kit utilizes a high-strength lift block, longer u-bolts and a matching set of NX2 Nitro or FOX Performance shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Pro-Ride dual rate coil springs provide a remarkable ride through any terrain
  • Heavy duty tubular steel radius arms that correct caster while maximizing ground clearance
  • Track bar relocation bracket and pitman arm maintain proper steering angles for improved handling
  • Fabricated steel blocks provide level stance from front to rear
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 37 x 12.5 with 17 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 18 x 9 and 4.5 in. Backspace
  • 37 x 12.5 with 20 x 9 and 4.5 in. Backspace

4-Link Conversion

Convert the factory stamped steel radius arms over to the BDS 4-link to optimize suspension geometry for better handling characteristics while adding strength and stability. This bolt-on upgrade utilizes high-strength ¼-inch steel brackets that allow mounting of HD upper and lower control arms to correct axle positioning while limiting caster change throughout wheel travel.

Pro-Ride Coil Springs

A pair of full-length, diesel-specific, Pro-Ride coil springs are supplied to provide the correct lift height and smooth, predictable ride across various terrains.

Steering Correction

To optimize steering geometry once lifted, a forged drop pitman arm is used to minimize the steering angle and pair it with a heavy duty track bar drop bracket to keep them in phase through suspension travel while recentering the front axle.

Rear Lift Option

Block Kit

  • Determine if your truck was manufactured with or without top-mounted overload springs on the rear leaf springs.
  • Blocks made of steel for high strength.
  • Designed to provide correct pinion angles.

Leaf Springs

  • Eliminates any need for a lift block.
  • Reduces axle wrap and creates a more controlled and stable feel.
  • Multi-leaf progressive design for a smooth ride.
  • Maintains factory payload weight ratings.

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish

Important Notes

  1. These trucks were manufactured with and without top mounted overload springs on the rear leaf springs. A top mounted overload is an extra leaf separate from the pack that set above the main leaf. You will need to identify which you have before ordering.
  2. If your vehicle is equipped with a carrier bearing, you will need to order 123402 in the accessories section.
  3. Removal of factory block required.
  4. Front exhaust modification may be required to clear the front driveshaft on gas models.
  5. U-bolts will not fit dually models.
  6. Dropped pitman arm will not fit 10 lug widetrack F350 models.

Installation

Est. Install Time :

8 hrs

Difficulty Level :

Moderate

Specialty Tools Needed :

Drill / Bit Set, Pitman Arm Puller

Specification

  • Front Lift Method : Coil Spring
  • Rear Lift Method : Leaf Spring
  • Shocks Included : Yes
  • Front Lift Height : 4"
  • Rear Lift Height : 6"

Application List

YearMakeModelSubmodelDrive TypeFuel TypePositionLift Height
2008FordF-250 Super DutyALL4WDDIESELALLALL
2008FordF-350 Super DutyALL4WDDIESELALLALL
2009FordF-250 Super DutyALL4WDDIESELALLALL
2009FordF-350 Super DutyALL4WDDIESELALLALL
2010FordF-250 Super DutyALL4WDDIESELALLALL
2010FordF-350 Super DutyALL4WDDIESELALLALL

Component List

2 BDS003629 Ford F250/350 6in Rear Spring
1 BDS013010 05 Ford F250/350 4-link Kit (1of2)
1 BDS013012 08 Ford F250/350 4-link Box Kit
1 BDS033411 2005-2023 Ford F250/F350 Superduty 4" Coil Kit - Diesel
1 BDS85415 Steering Stab 23.9 x 14.3 - EB1/EB1
2 FOX98224700 Fox 2.0 Shock 25.65 x 16.05 x 2- S50/EB1
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
4 UBT4032 Automotive Axle U-Bolt - Round

Tires & Wheels

(Trimming may be required)
37 x 12.5 with 17 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 20 x 9 and 4.5 in. Backspace

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 149.0 lbs.
  • W24.0000” x H18.0000” x L48.0000”
