RT11257197 | RideTech Bolt-On 4-Link with double adjustable bars (1962-1967 Chevy II Nova)

Bolt-On 4-Link System | 1962-1967 Chevy II Nova | Double Adjustable Both Ends

Muscle cars have always been the backbone of hot rodding … and now they are hotter than ever! The problem is nobody wants to put up with the ride quality, handling, and braking technology of 40 years ago. After driving a modern car, the compromises of a standard leaf spring suspension just doesn’t cut it! Now there is a solution……

This Ridetech 4-Link System is specifically designed for the 1962-1967 Chevy II Nova and Acadian and is for use with Coil-Overs or ShockWave air suspension (sold separately). Replacing the leaf springs with a 4-Link dramatically improves ride quality, traction and handling, while offering an adjustable stance at 1”-3” lower than stock. Instead of a wallowing soft ride, you’ll experience a crisp, controlled ride that will inspire confidence. The 4-Link design offers more precise positioning of the rear axle, eliminates axle wrap (wheel hop) and increases stability through the corners with optimized roll center height and anti-squat.

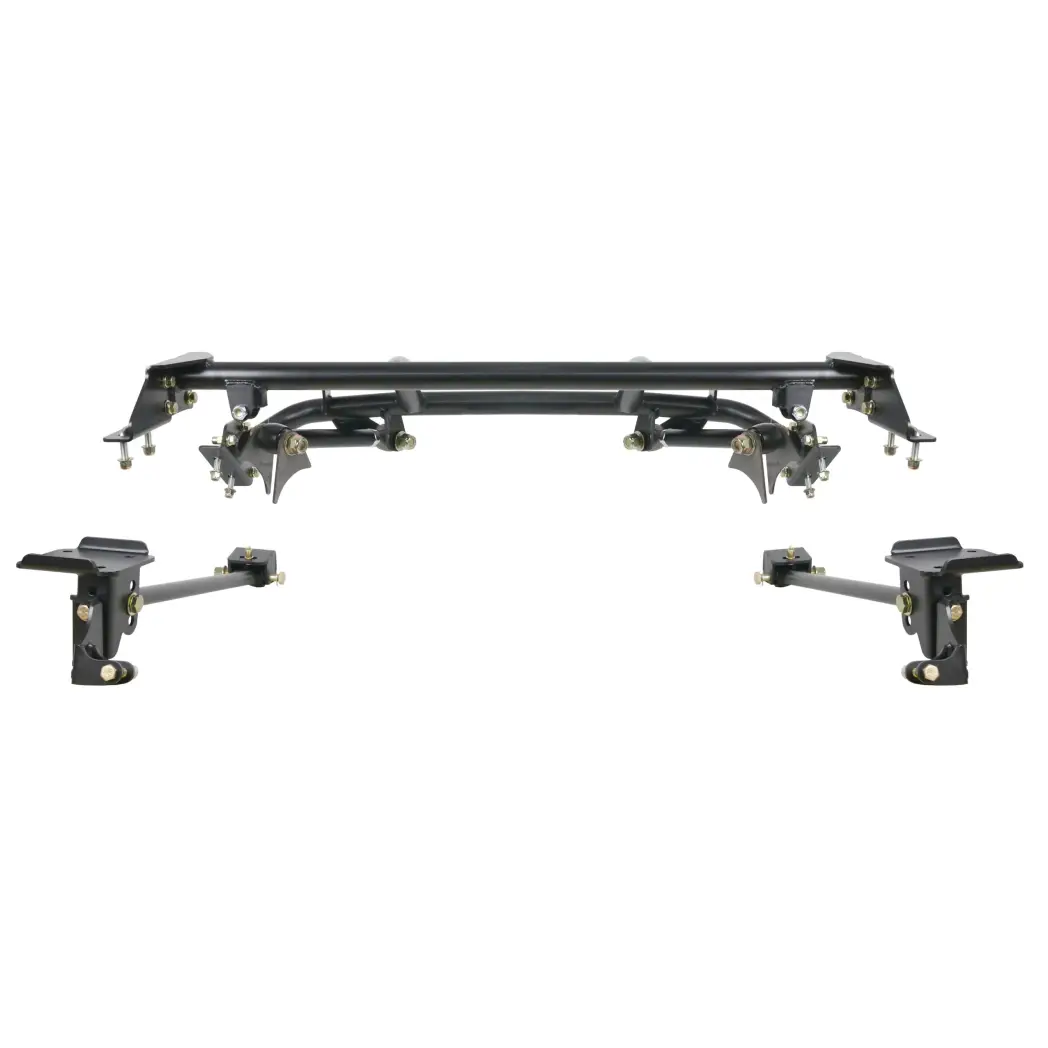

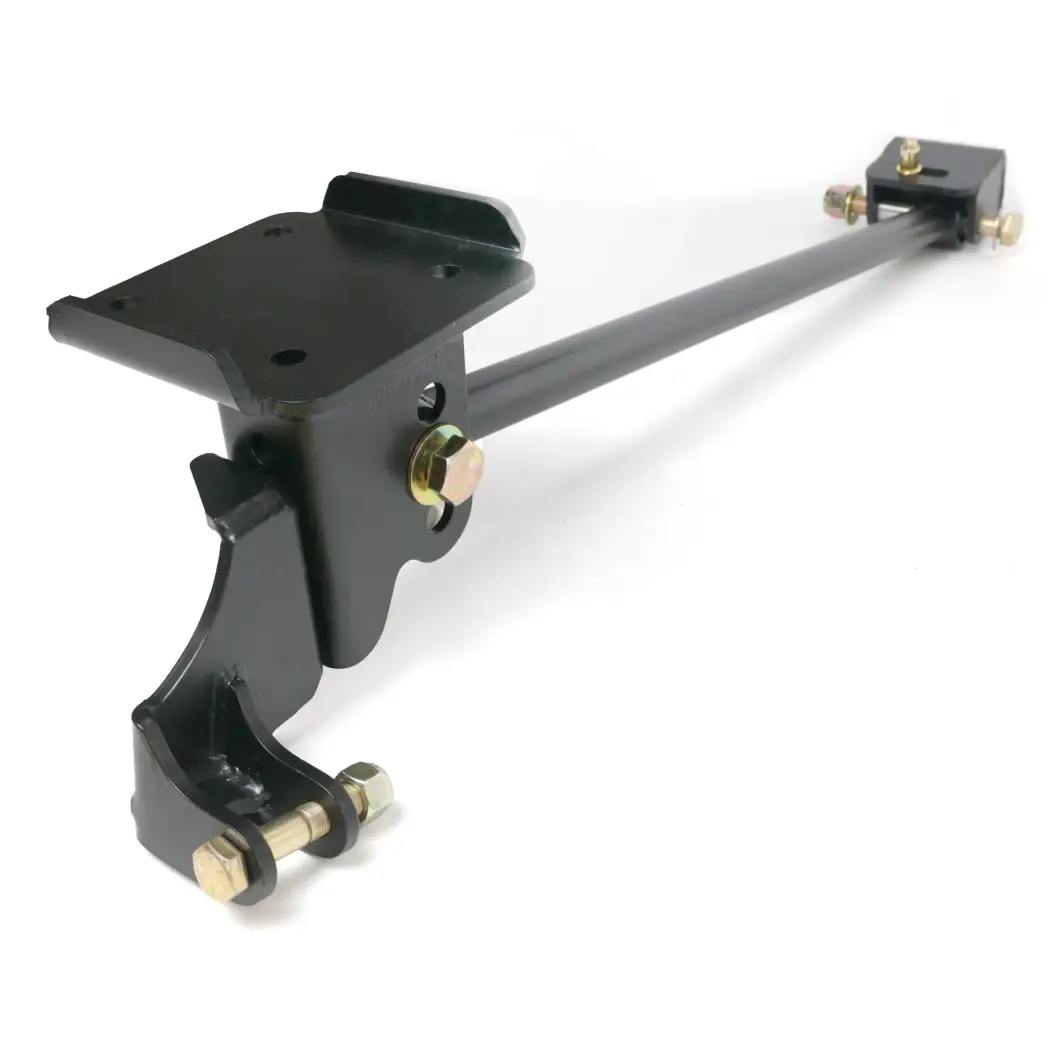

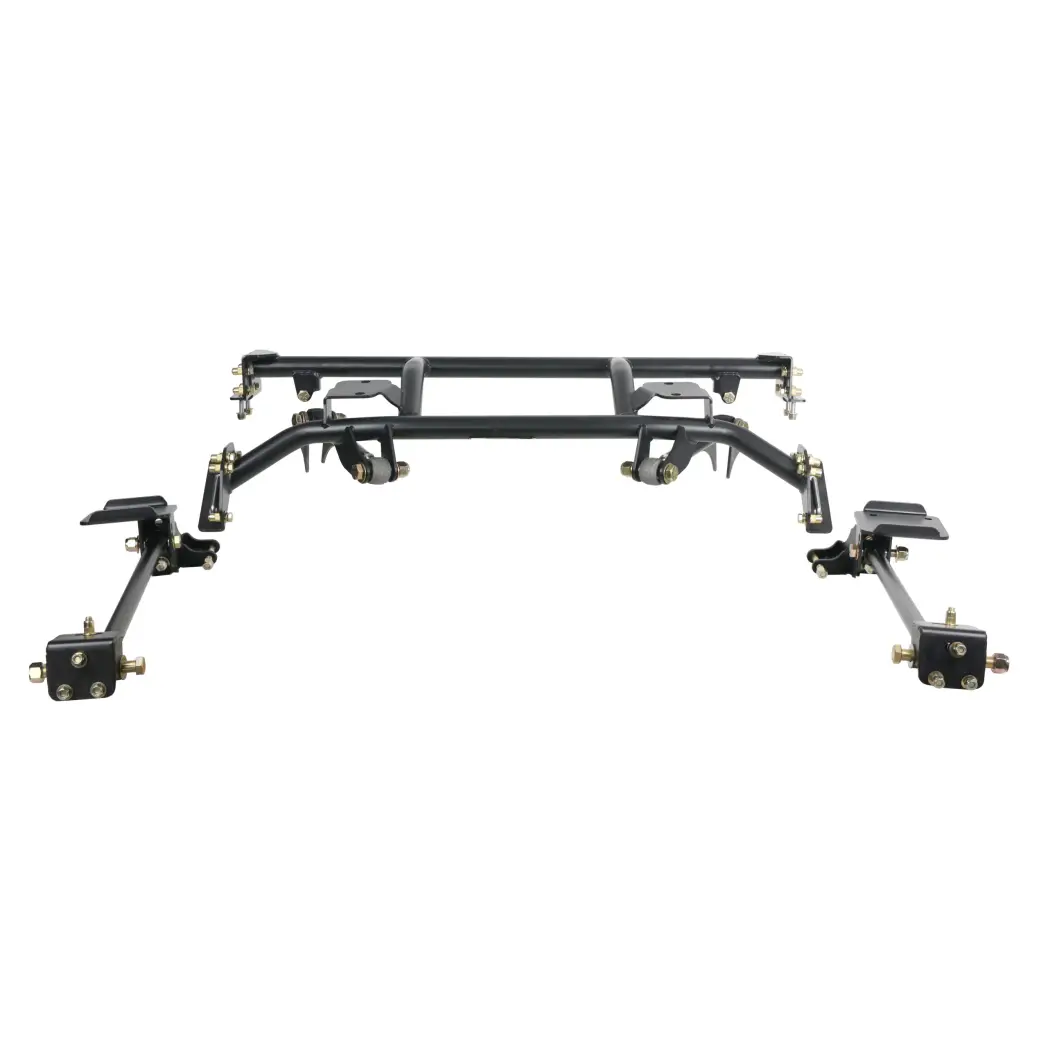

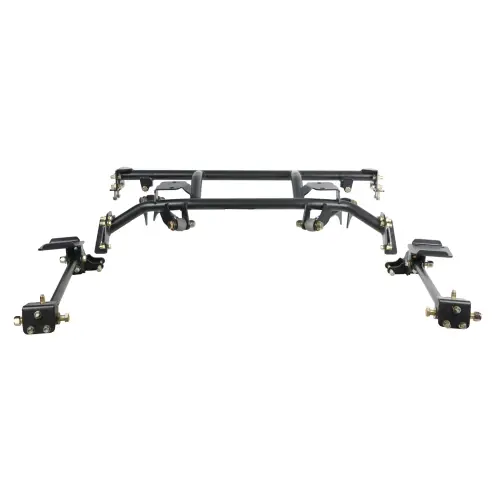

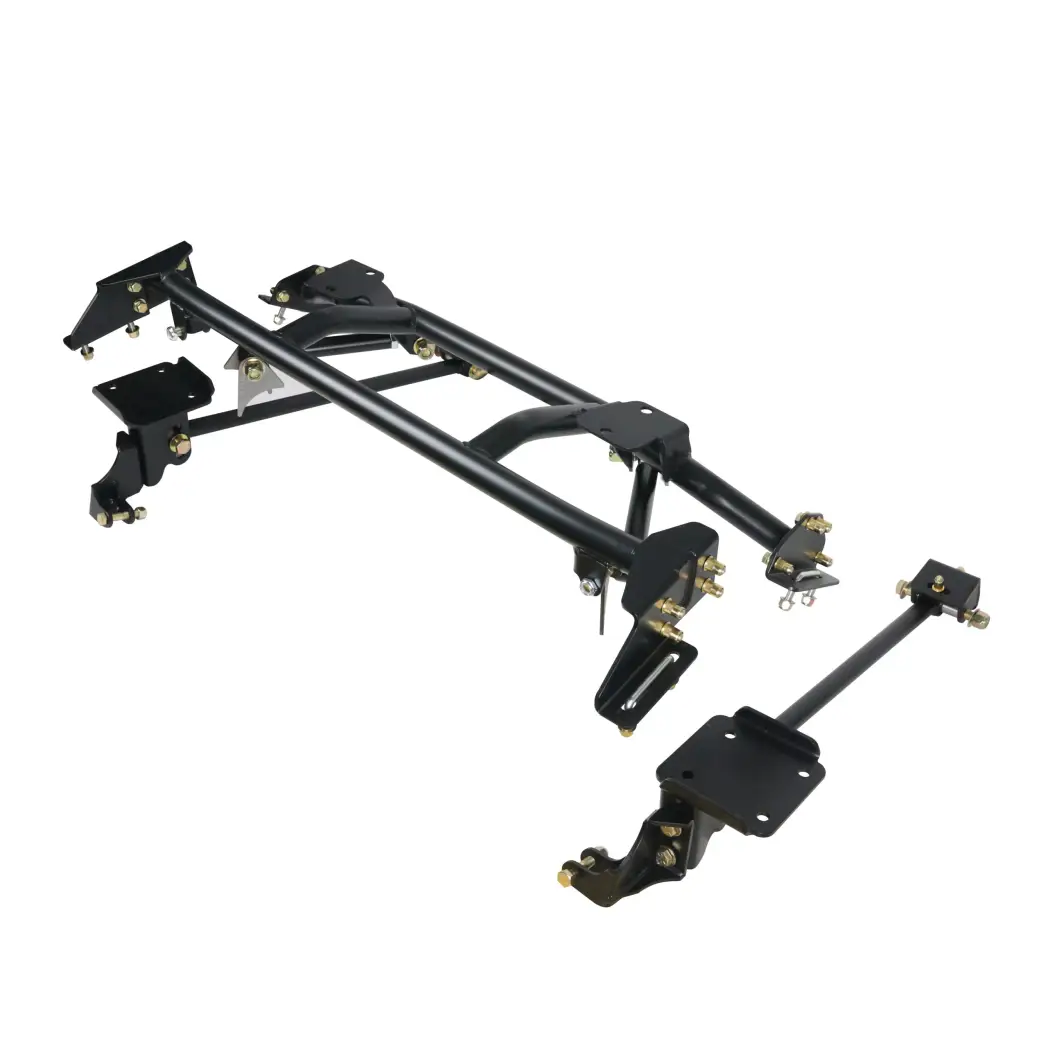

The lower bars attach to the OEM leaf spring mounts and to the axle with bolt-on brackets. A stout tubular cradle bolts between the frame rails creating attachment points for the upper bars and shocks. No cutting or fabrication to your prized muscle car, just four small tabs that are welded to the axle to attach the upper bars. The patented R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!

Features:

• Made in the USA
• Greatly improves traction, handling, and ride quality.
• Suspension geometry improvements include optimized roll center and adjustable anti-squat (41% – 109%).
• The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!
• Installation does not require any major modifications to the floor pan and requires only minimal welding to the axle tube.
• Durable satin black powder coat
• Front lower bar mount reinforces leaf spring bucket and integrates with Ridetech subframe connector

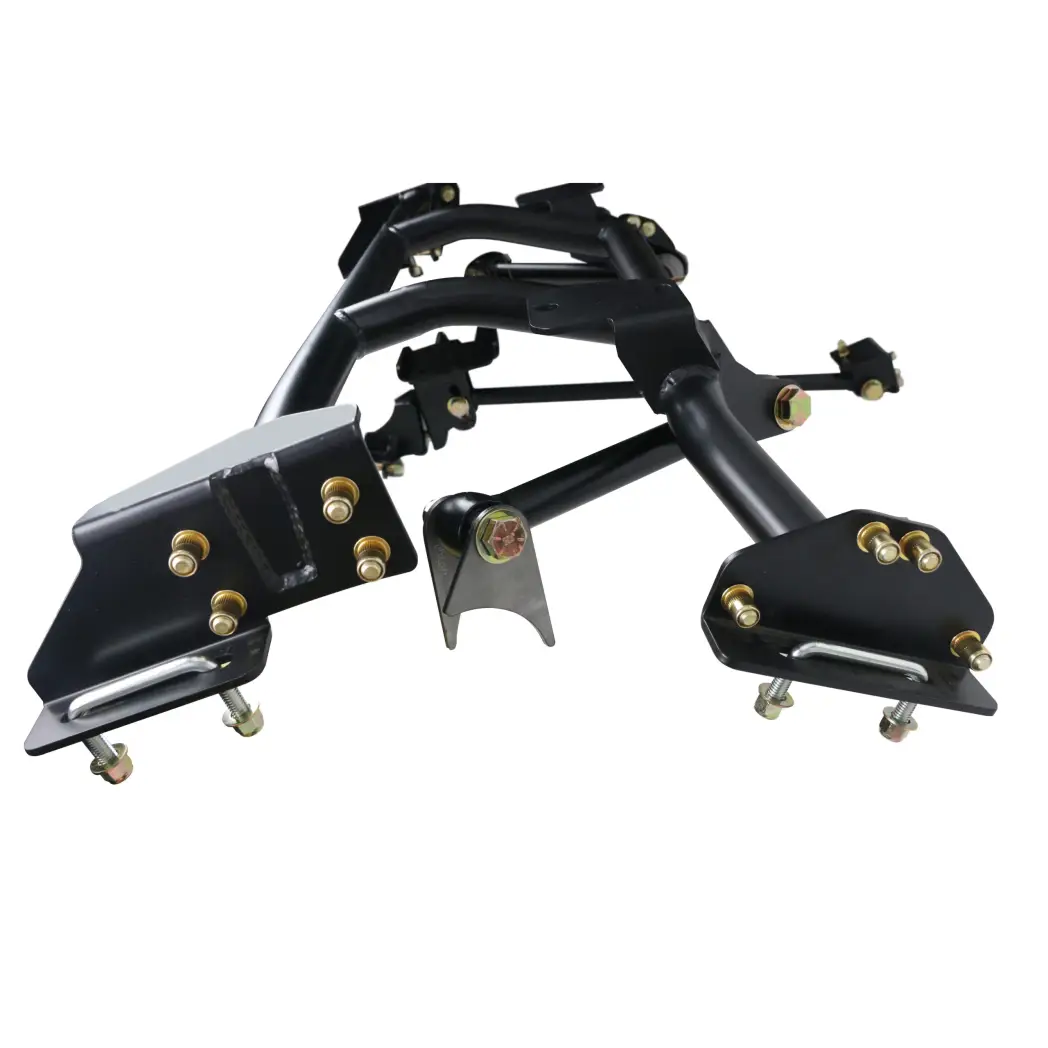

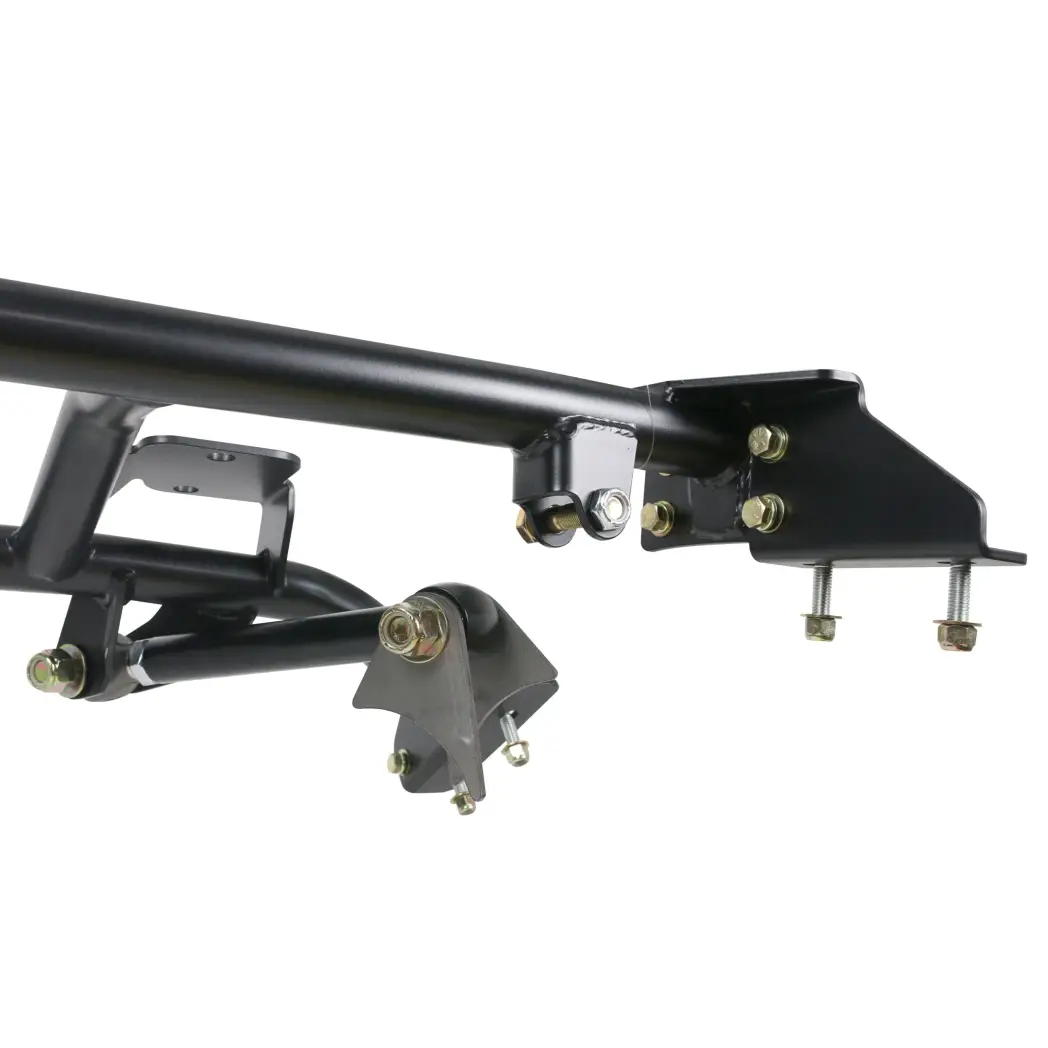

• Upper cradle bridges the frame rails to create attachment points for the upper 4 link bars and the shocks.  Strong bolt-in installation using square U-bolts and 3/8″ riv-nuts (tool included)
• Compatible with mini-tubs
• Fit’s 2 door, 4 door and Wagon

Options:

• Weld-on lower axle brackets are available if using an aftermarket axle housing without stock style leaf spring pads. Part # 70010122, sold separately.
