RT11377195 | RideTech Bolt-On Wishbone (1990-1993 C1500 454 SS | 14 Bolt Rear)

Bolt-On Wishbone System | 1990-1993 C1500 454SS

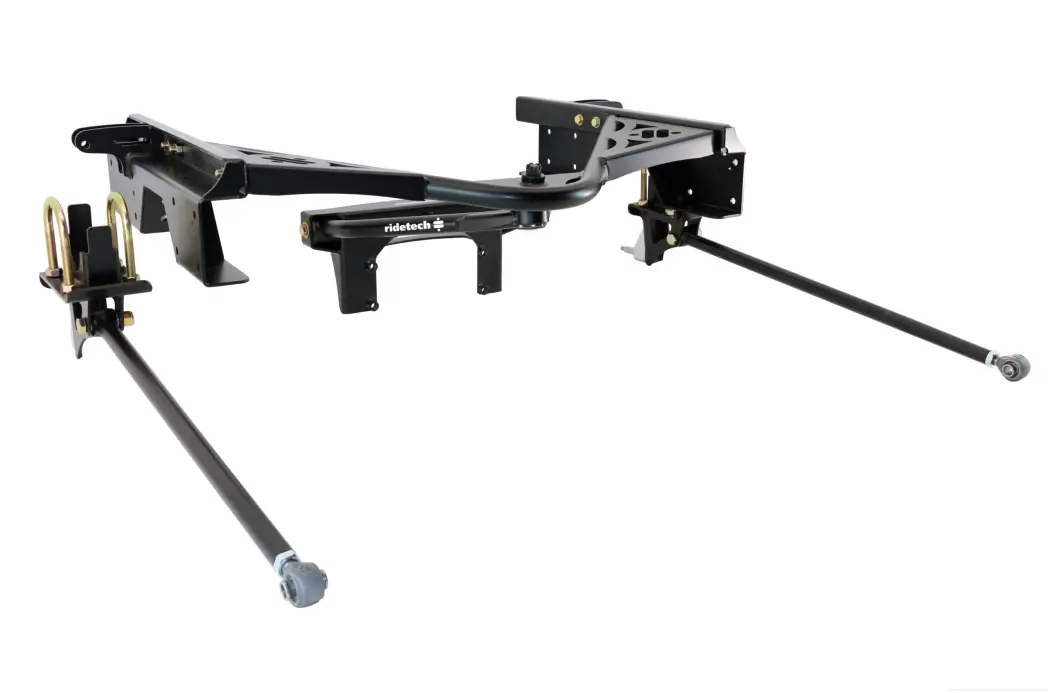

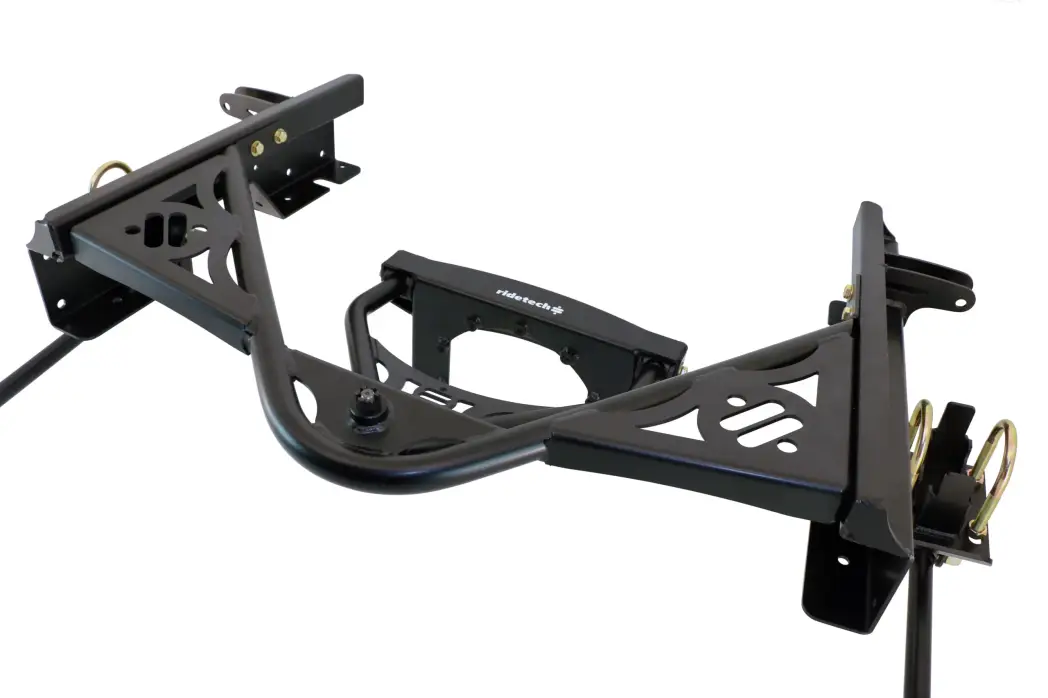

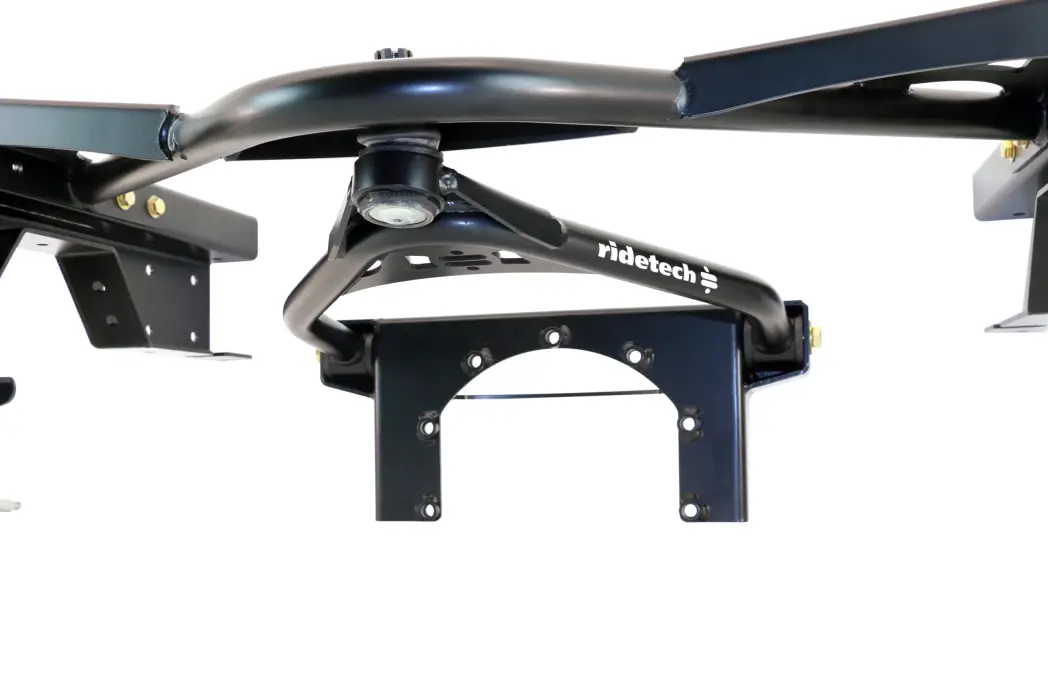

The Bolt-On Wishbone System for 1988-1998 C1500 (OBS) replaces the leaf springs to provide excellent ride quality, handling, traction and load capacity.  It is completely bolt-on and provides mounting for Shockwaves or Coil-Overs. DOM lower bars, upper wishbone and mounting brackets eliminate springs wrap which leads to wheel hop.  Corrected anti-squat provides excellent traction and a low roll center minimizes body roll. The R-Joint rod ends combine the best qualities of low friction movement, lateral stability, full range articulation, and quiet operation into one special bearing that is as home on the street as it is on the racetrack!  The heavy-duty C-notches are included with the kit and FIT the frame rail.  All fabricated components are powder coated satin black. Compatible with all cab and bed configurations.

Features:

• Made in the USA
• Bolt-on installation
• Lower ride height approximately 6″ (additional 3″ with air suspension)
• Eliminated spring wrap / wheel hop
• Increased compression travel with heavy-duty c-notch
• Durable satin black powder coat
• Optimized roll center height for confident cornering
• Adjustable panhard bar with R-Joint rod ends
• Correct pinion angle to eliminate driveline vibration
• Compatible with 14 bolt, used in 454SS trucks
• Designed for use with Coil-Overs or ShockWave air suspension (sold separately)
