RT11397198 | RideTech Bolt-On Wishbone (1982-2003 S10, S15 2WD | 8.5" Differential)

Bolt-On Wishbone System | 1982-2003 S10, S15 Pickup | 8.5 Inch Rear End

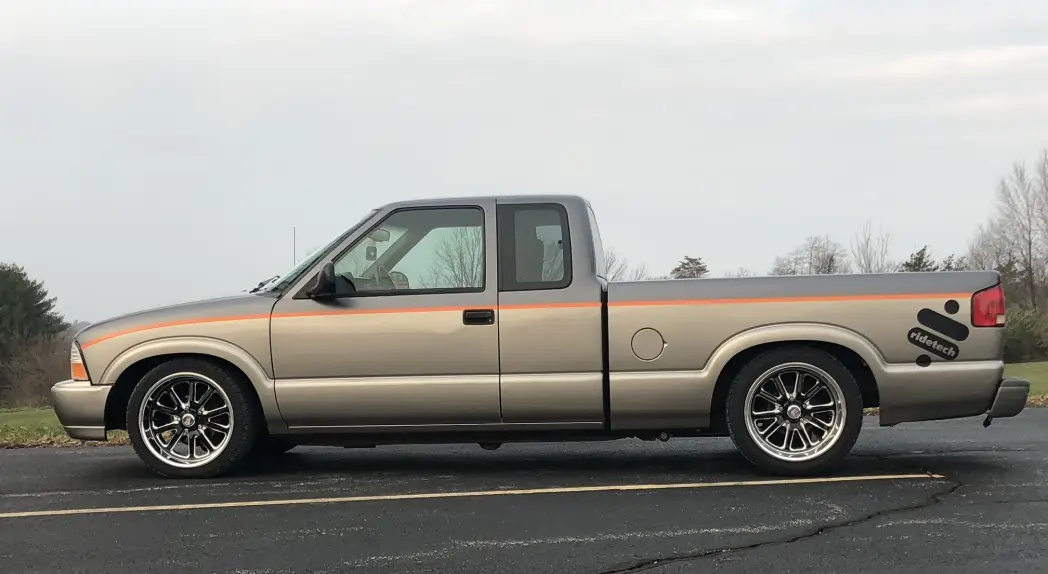

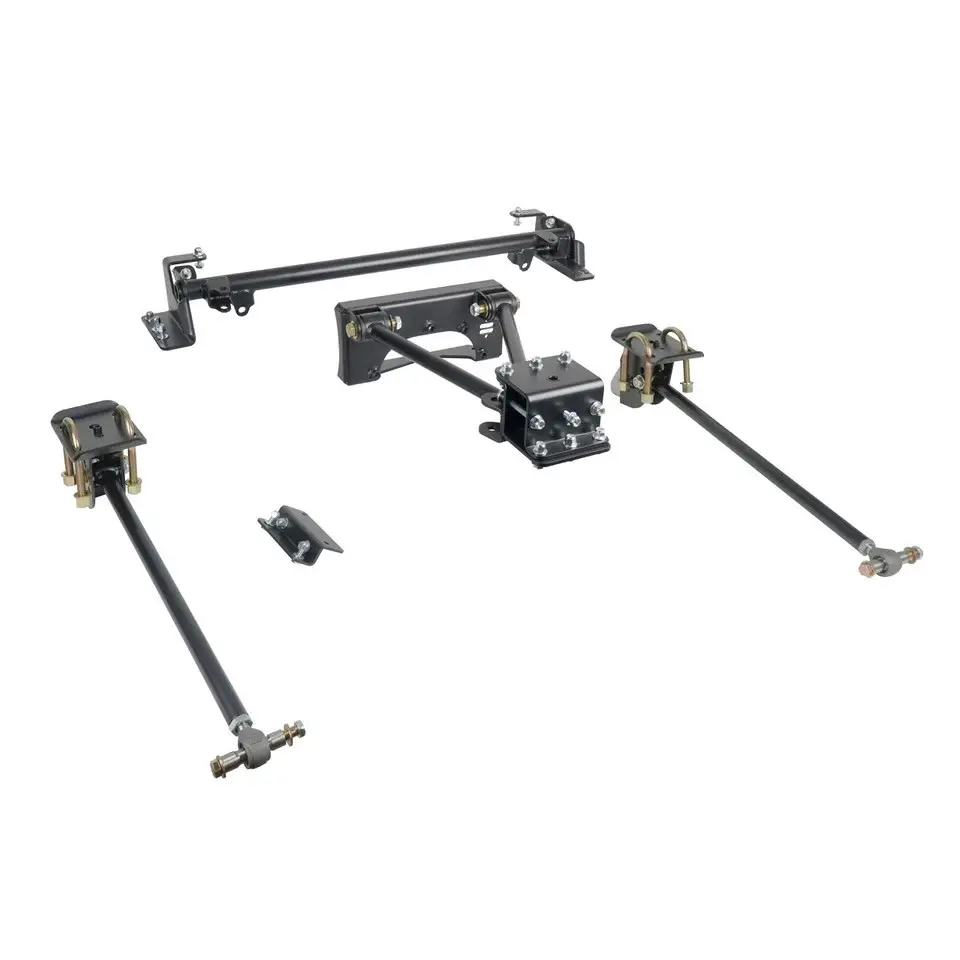

Chevrolet S-10, S-15 and GMC Sonoma 2WD pickup trucks greatly benefit from lowered ride height and improved ride quality. These trucks are plentiful, affordable and can easily be upgraded to V8 engines with great power to weight ratio. This bolt-on Wishbone rear suspension system eliminates your truck’s factory leaf springs and replaces them with a heavy-duty wishbone style system that includes Ridetech’s long lasting R-Joints for smooth, bind-free articulation. Overall, you’ll be thoroughly impressed with how well your truck handles, rides and looks. Includes lower bars, wishbone, mounting brackets, crossmembers & hardware. For use with Coil-overs or Shockwaves (Sold separately).

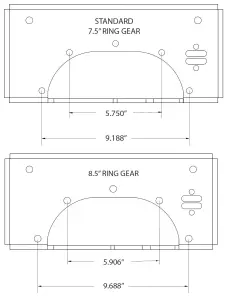

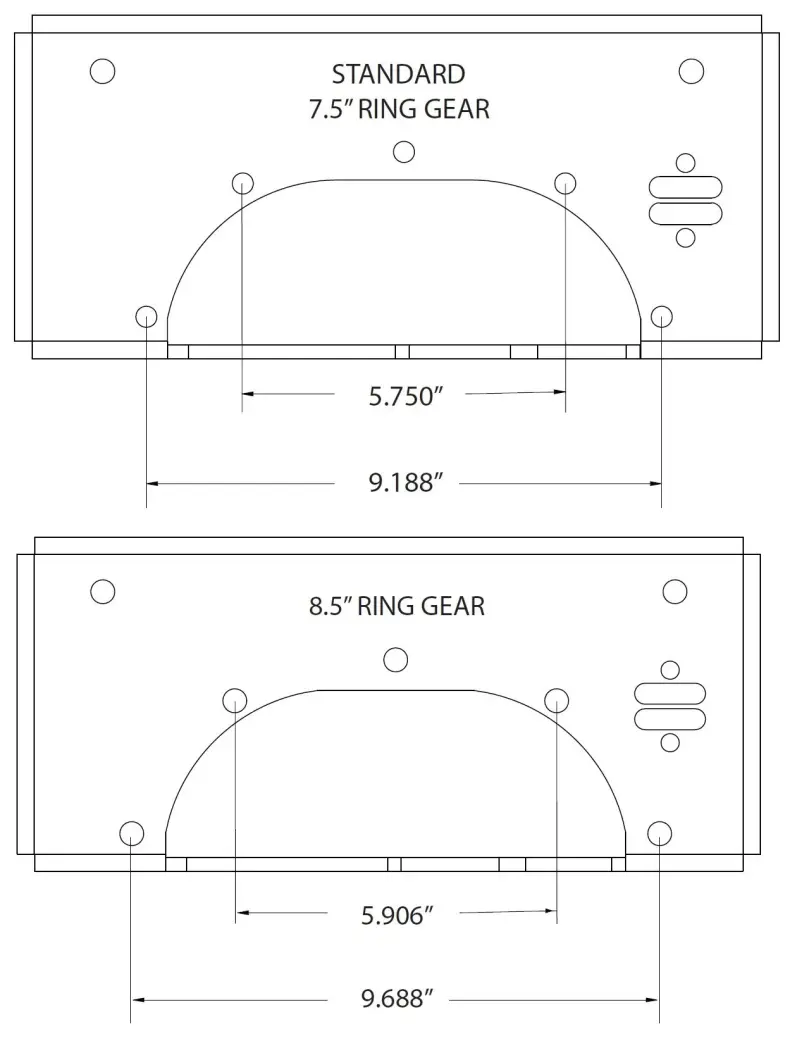

Designed for use with the stock 8.5″ rear end. Choose option above.

Features:

• Made in the USA
• Bolt-on installation
• Lower ride height approximately 4-5″ (additional 3″ with air suspension)
• Eliminated spring wrap / wheel hop (50% anti-squat)
• Durable satin black powder coat
• Optimized roll center height for confident cornering

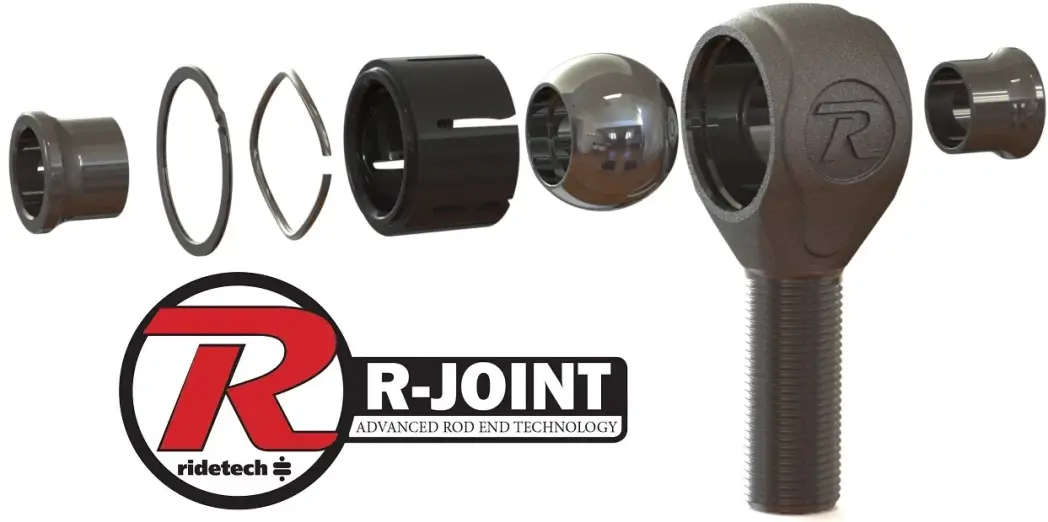

• Patented R-Joint rod ends
• Correct pinion angle to eliminate driveline vibration
• Designed for use with Coil-Overs or ShockWave air suspension (sold separately)
• Optional gas tank crossmember brace kit available for V8 swapped trucks (part # 11397299)

Note: This system does not fit S10/S15 Blazer
