RT11363699 | RideTech Front upper StrongArms (1973-1987 C10 Pickup)

Front Upper StrongArms | 1973-1987 C10

• Tubular control arms add strength, style and improved performance
• Self-lubricating Delrin bushings reduce deflection and suspension bind
• Increased caster dramatically improves handling and control

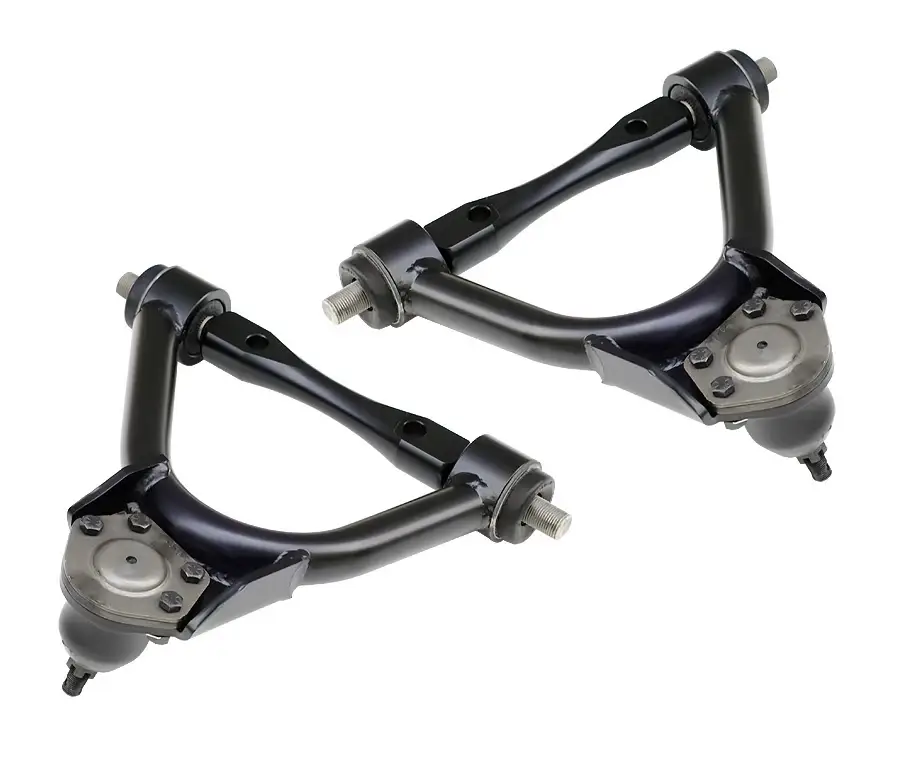

Front upper tubular control arms for  lowered 73-87 Chevy and GMC C10, C15 and C1500 trucks. Designed to be used CoolRide air suspension system or as factory replacements.

What says performance more than a set of tubular control arms! After all of the time and effort expended on your ride, you definitely can’t let your stamped OEM control arms detract from all that work. Finish your suspension off with these new tubular control arm systems from Ridetech. Built with all of the care and experience you have come to expect from us.  When you combine the performance benefits with the elegant design of these arms, there is no question…. You want these.

Development
StrongArms™ are developed by Ridetech® in Jasper, Indiana on an actual running, driving vehicle. This allows us to properly address ALL fitment and performance issues. It also allows us to document an installation, demonstrate the installation to our sales techs and dealers, and allows ongoing evaluation of the performance of the StrongArms™

Design
We think the best way to design any component is to keep it simple. That is why Strong Arms™ are designed with as few components as possible.  They are manufactured in-house on our 4 axis tubing bender that allows precise, repeatable bends that no other machine can achieve. We can create elegant tubing bends that would otherwise require several separate welded components.  The perimeter of the StrongArm is contoured to allow maximum wheel clearance and turning radius.

Components
Powder coated in a satin black finish and completely assembled with ball joints, bushings and cross shafts.  To reduce deflection and stiction from the suspension movement Injection Molded Delrin Bushings are used, which are also impregnated with Teflon to eliminate the need for lubrication.

Geometry
Properly designed control arms will add more positive caster and will position the wheel in the wheel opening for maximum clearance.   Ball joint angles are repositioned to prevent binding.
