1325RED | Rough Country 1.75 Inch Leveling Kit With Red Upper Control Arms (2019-2025 Sierra 1500 AT4 4WD)

2019-2025 GMC Sierra 1500 AT4 4WD

1325RED
Pricing: $545.95
Qty:
Free Ground Shipping | Exclusions Apply*

Description

1.75 Inch Leveling Kit | Forged Alum UCA | AT4 | GMC Sierra 1500 4WD (19-25)

The Easy Way to a Leveled Stance. Take your Sierra 1500 to new heights and add a more aggressive appearance with Rough Country's 1.75-inch Leveling Kit. From the factory, the GMC Sierra AT4 sits lower in the front than the rear, creating a nose-down look that leaves a lot to be desired. This leveling kit is the easiest way to lift the front of your ride 1.75 inches, providing a leveled look and additional clearance for larger tires, while maintaining factory ride quality.

Innovative Design and Construction. The Rough Country's 1.75" leveling kit includes two front pre-load strut spacers constructed from a proprietary composite material that is lightweight, durable, and 100% corrosion-resistant. Our kit includes upper control arms for improved ball joint angles and promotes better CV angles for off-road driving.

Easy Installation. With no cutting or drilling required, this easy bolt-on installation takes approximately 2-3 hours to complete.

Limited Lifetime Replacement Warranty. Rough Country's 1.75" Leveling Kit is backed with a limited lifetime replacement warranty towards manufacturer defects. As such, the product is protected from structural and workmanship damage after the date of purchase. With our industry-leading warranty give yourself peace of mind when using Rough Country's Suspension products!

Features

  • Maintains factory ride quality.
  • Increased ground clearance.
  • Levels the front with the rear of the vehicle.
  • Includes upper control arms for improved ball joint angles.
  • Made of forged aluminum for unsurpassed strength and durability.
  • No welding weak spots.
  • Includes POM ball joints for a greater range of motion and easier installation.
  • Ball joints are fully greaseable.
  • Includes Clevite brand OEM-style rubber bushings.

Notes - Important

  • ONLY fits GMC AT4 models.
  • Does NOT fit models equipped with Multimatic DSSV suspension. (AT4X)
  • Does NOT fit Chevy Trailboss models.

Specs

Est. Install Time  2-3 hours

Application List

2019-2025 GMC Sierra 1500 AT4 4WD

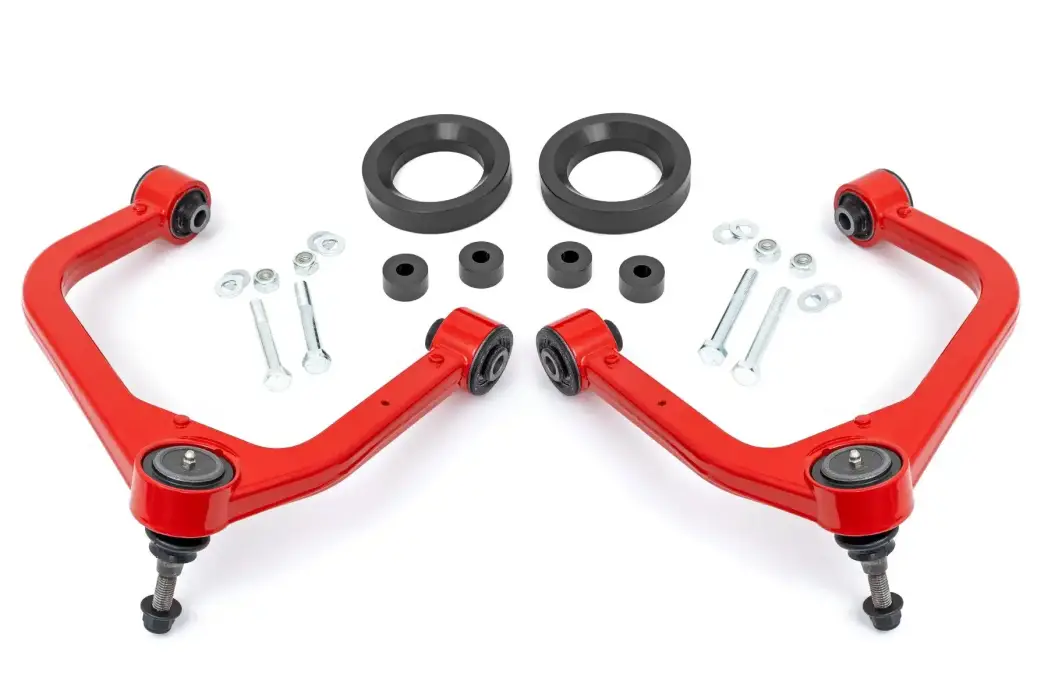

Components

(2) Pre-load Spacers
(2) Upper Forged Control Arms
(2) Lower Strut Spacers
Hardware

Tires & Wheels

TireWheelBolt PatternOffsetNote
275/65R20Factory 206x5.5--
305/65R1818x96x5.5+0-
305/60R1818x96x5.5+0-
295/70R1818x96x5.5+0-
285/70R1818x96x5.5+0-
285/65R1818x96x5.5+0Minor Trimming
275/75R1818x96x5.5+0-
305/65R1818x96x5.5+1-
305/60R1818x96x5.5+1-
295/70R1818x96x5.5+1-
285/70R1818x96x5.5+1-
285/65R1818x96x5.5+1Minor Trimming
275/75R1818x96x5.5+1-
305/65R1818x96x5.5+18-
305/60R1818x96x5.5+18-
295/70R1818x96x5.5+18-
285/70R1818x96x5.5+18-
285/65R1818x96x5.5+18Minor Trimming
275/75R1818x96x5.5+18-
305/65R1818x96x5.5+20-
305/60R1818x96x5.5+20-
295/70R1818x96x5.5+20-
285/70R1818x96x5.5+20-
285/65R1818x96x5.5+20Minor Trimming
275/75R1818x96x5.5+20-
305/55R2020x96x5.5+0Minor Trimming
295/60R2020x96x5.5+0Minor Trimming
285/60R2020x96x5.5+0-
285/55R2020x96x5.5+0-
275/65R2020x96x5.5+0-
265/60R2020x96x5.5+0-
305/55R2020x96x5.5+1Minor Trimming
295/60R2020x96x5.5+1Minor Trimming
285/60R2020x96x5.5+1-
285/55R2020x96x5.5+1-
275/65R2020x96x5.5+1-
265/60R2020x96x5.5+1-
305/55R2020x96x5.5+18Minor Trimming
295/60R2020x96x5.5+18Minor Trimming
285/60R2020x96x5.5+18-
285/55R2020x96x5.5+18-
275/65R2020x96x5.5+18-
265/60R2020x96x5.5+18-
305/55R2020x96x5.5+20Minor Trimming
295/60R2020x96x5.5+20Minor Trimming
285/60R2020x96x5.5+20-
285/55R2020x96x5.5+20-
275/65R2020x96x5.5+20-
265/60R2020x96x5.5+20-

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 28.0 lbs.
  • W14.0000” x H6.0000” x L16.0000”
  • Free Ground Shipping | Exclusions Apply*

Documents
