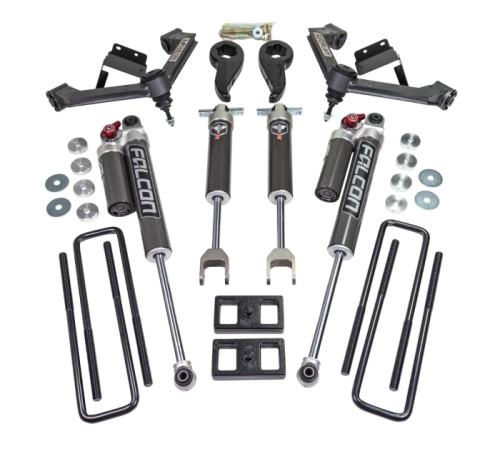

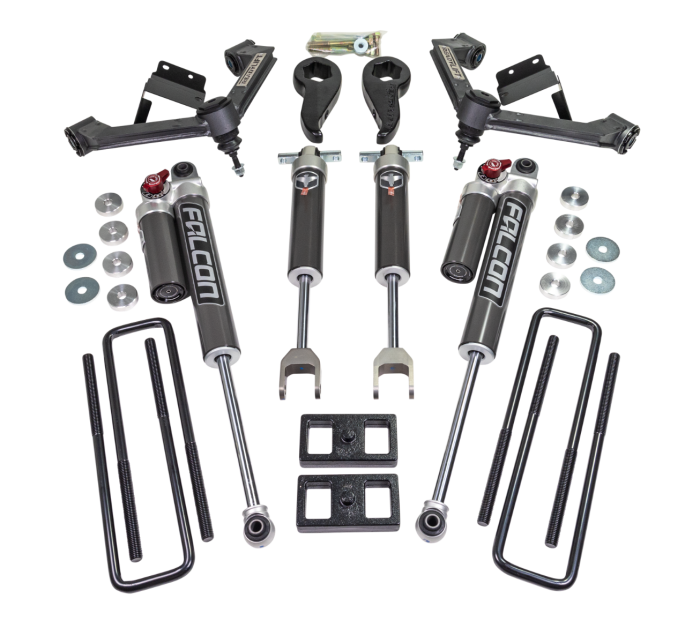

62-30360 | ReadyLift 3 Inch SST 2.1 Lift Kit with Fabricated Control Arms & Falcon 2.1 Shocks (2020-2024 Silverado, Sierra 2500 HD, 3500 HD)

2020-2024 Chevrolet Silverado 2500 HD, 3500 HD 2WD/4WD | 2020-2024 GMC Sierra 2500 HD, 3500 HD 2WD/4WD

62-30360
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,794.94
Qty:

Description

3'' SST2.1 LIFT KIT WITH FABRICATED CONTROL ARMS AND FALCON 2.1 SHOCKS- GM SILVERADO / SIERRA 2500HD/3500HD 2020-2024

Features and Benefits:

  • 3" Front/ 1" Rear SST Lift Kit
  • Fits 2020-2024 GM HD 2500/3500
  • SST lift-specific Forged Torsion Keys
  • Xtreme-Duty fabricated 4130 chromoly steel upper control arms
  • Front inner fender bracket to fit larger tires
  • Allows for no-trim 20x9 0 offset on a 35x12.50 tire.
  • *Max with trimming: 20x10 -18 offset - 35x12.50.  Some fender well trim variances may be experienced between Silverado and Sierra models.

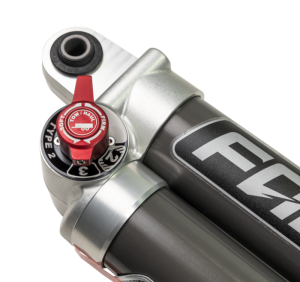

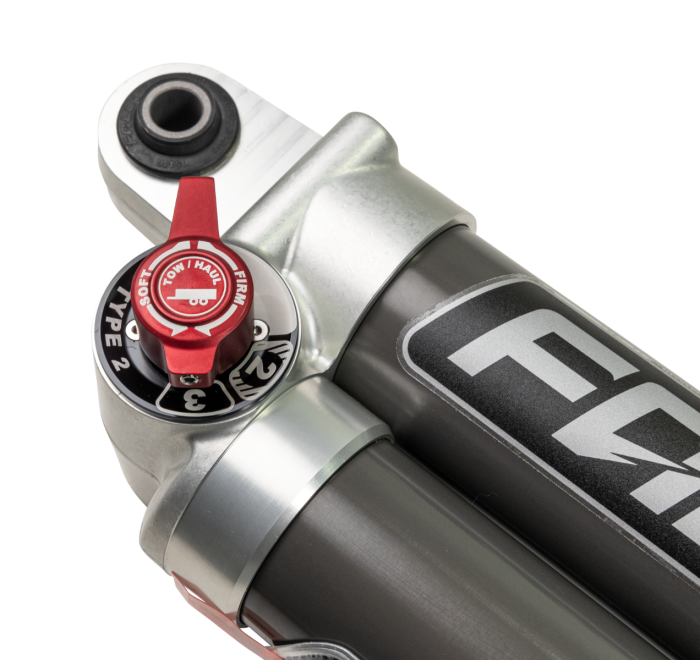

Vehicle-specific performance-tuned Falcon 2.1 monotube dampers on all four corners.

  •  Improved dynamic roll control and low-speed damping.
  • Dramatic improvement in on-road comfort and off-road performance.
  • Optimized fitment for unobstructed suspension travel and articulation.
  • 6061-T6 aluminum alloy shock body resists Impact to protect internal components.
  • Smooth-honed internal shock body surface for long-term performance.
  • 3/4” induction hardened chrome plated shaft resists rock damage, corrosion, and shaft buckling.
  • Large shaft diameter provides a wide range of adjustments on adjustable shocks.
  • Hard anodized 6061-T6 aluminum alloy billet piston.
  • 1-piece Teflon bronze piston wear band w/ O-ring.

Special Note:
When setting the torsion key adjustment bolt do not exceed 27” from the wheel center to the fender edge.
Exceeding this will overlift the vehicle creating a top-off condition, meaning the suspension has little to no down travel.
The result is poor ride quality and premature wear of components.

Application List

2020-2024 Chevrolet Silverado 2500 HD 2WD/4WD
2020-2024 Chevrolet Silverado 3500 HD 2WD/4WD
2020-2024 GMC Sierra 2500 HD 2WD/4WD
2020-2024 GMC Sierra 3500 HD 2WD/4WD

Components

GM HD FR FNDR BRACKET RIGHT QTY 1
GM HD FR FNDR BRACKET LEFT QTY 1
GM HD 1" UBOLT KIT QTY 1
1/2" DIFF DROP SPACER QTY 8
DIFF SPACER LASER CUT WASHER QTY 4
HARDWARE KIT FOR QTY 1
TORSION BAR KEY 0-3" QTY 2
1" REAR BLOCK QTY 2
FALCON FRONT SHOCK QTY 2
FALCON REAR SHOCK QTY 2
UPPER CONTROL ARM RIGHT QTY 1
UPPER CONTROL ARM LEFT QTY 1

Tires & Wheels

20x9 0 offset - 35x12.50 tire.

*Max with trimming: 20x10 -18 offset - 35x12.50

Note: Silverado and Sierra have different fender well opening sizes - some minor trimming my be required depending on true tire size and design. Max width on stock wheels is 11.5".

Tire Size Note: ReadyLIFT wheel and tire fitment recommendations are typically based on Wheel Pros wheels and Nitto tires. Due to product differences among tire manufacturers, tire specifications and dimensions including, but limited to, overall diameter, rolling diameter, tread width, aspect ratio, lug pattern, sidewall construction and inflation pressure, will vary meaningfully by tire and wheel manufacturer. Every tire and wheel combination should be test fit prior to installation. Consult your local installer to learn more about the right tire fitment for your application.

Ride Quality Note: When lifting a vehicle and installing aftermarket wheels and tires, a tire manufacturer's construction and material quality can alter vehicle ride quality. When increasing a vehicle wheel and tire size, most larger aftermarket truck and SUV tires are 10-ply (or more) E tires compared to typical OEM 6-ply C tires. This more rigid sidewall construction increases the perception of suspension stiffness often described as ride harshness. The ride, handling, traction, noise, fuel economy, and wear differences between All-Season, All-Terrain, Mud-Terrain, or Trail-Terrain type tires can be significant. Please take into account tire and wheel choice will generally have a meaningful impact on the ride & handling experience.

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 100.0 lbs.
  • W11.5000” x H12.5000” x L30.0000”
  • $150.00
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
