RT24129901 | RideTech HQ Coil-Over shock with 2.9" stroke and 1.7" eye mount | universal

HQ Coil-Over shock with 2.9" stroke and 1.7" eye mount | universal

24129901
Pricing: $472.60
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Universal HQ Coil-Over Shock-Single Adjustable-Each

Shock Length 2.9 Inch Stroke (10.5 Inch Ride Height)
Mounting Style 1.7 Inch Eye Mount
Finish Anodized

HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they’ll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
FEATURES:

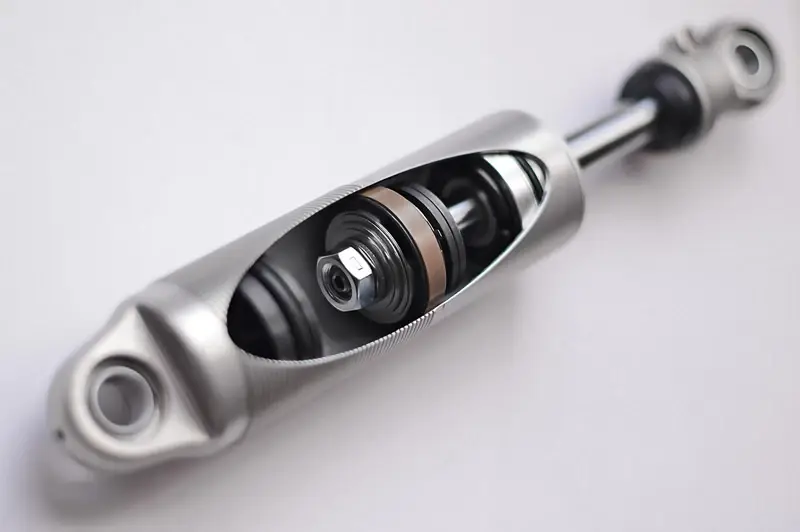

  • Mono tube gas pressure design is far superior to twin-tube.
  • 24-Position Rebound Adjustment
  • Exclusive 1,000,001 Mile warranty
  • Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
  • Larger 1.834″ piston significantly larger than twin tube pistons.
  • Heavy duty 5/8″ chromed shaft.
  • Bodies are anodized for long lasting corrosion resistant appearance.
  • Double sealed rod guide with dust cover eliminates oil leakage.
  • CNC machined billet aluminum adjusting hardware.
  • Unique fine-threaded pinch clamp height adjuster provides easy adjustment.

Sold Individually

Included Components
1- Aluminum mono tube shock with threaded body
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2

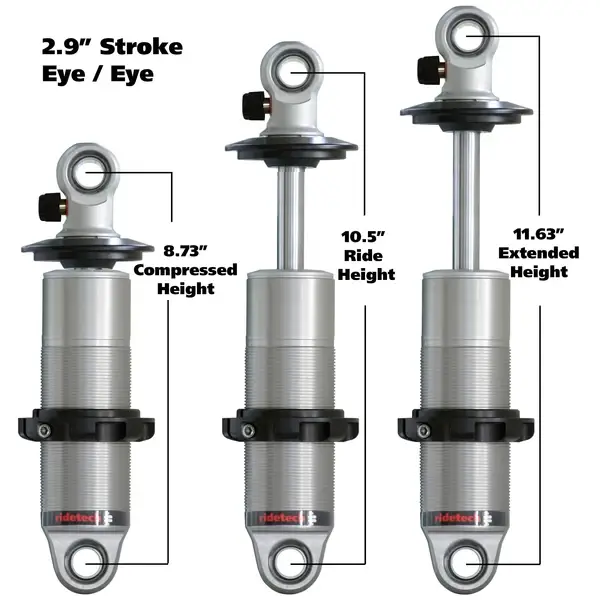

Coil-over Dimensions



Shock
Mounting
Compressed
Ride
Extended
HQ Spring

Stroke
Style
Height
Height
Length
Length

2.9 Eye/Eye 8.73″ 10.5″ 11.63 7″
3.6 Eye/Eye 9.43″ 11.5″ 13.03 8″
4.1 Eye/Eye 10.13″ 12.5″ 14.23 10″
5.2 Eye/Eye 11.23″ 14.5″ 16.43 12″
6.3 Eye/Eye 12.33″ 16″ 18.63 14″
6.9 Eye/Eye 13.13″ 17.25″ 20.03 14″

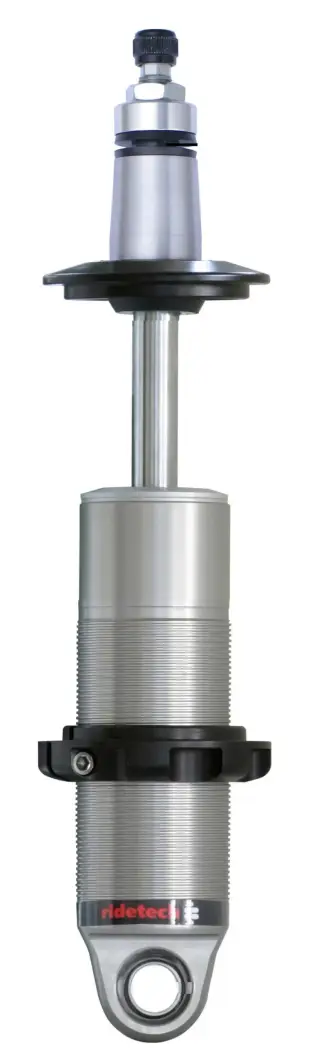

2.9 Stud/Eye 9.03″ 10.8″ 11.93 7″
3.6 Stud/Eye 9.73″ 11.8″ 13.33 8″
4.1 Stud/Eye 10.43″ 12.8 14.53 10″
5.2 Stud/Eye 11.53″ 14.8 16.73 12″
6.3 Stud/Eye 12.63″ 16.3 18.93 14″
6.9 Stud/Eye 13.43″ 17.55 20.33 14″

Application List

Universal

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 4.0 lbs.
  • W4.0000” x H3.0000” x L16.0000”
