RT24129705 | RideTech Polished HQ Coil-Over shock with 2.9" stroke and 2" stud mount | universal

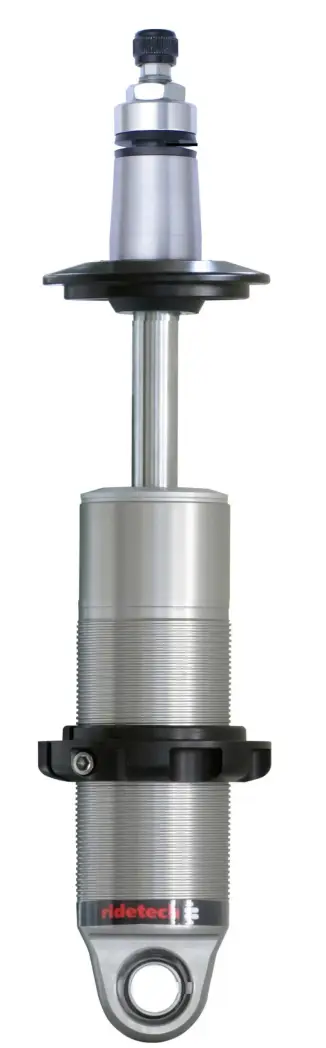

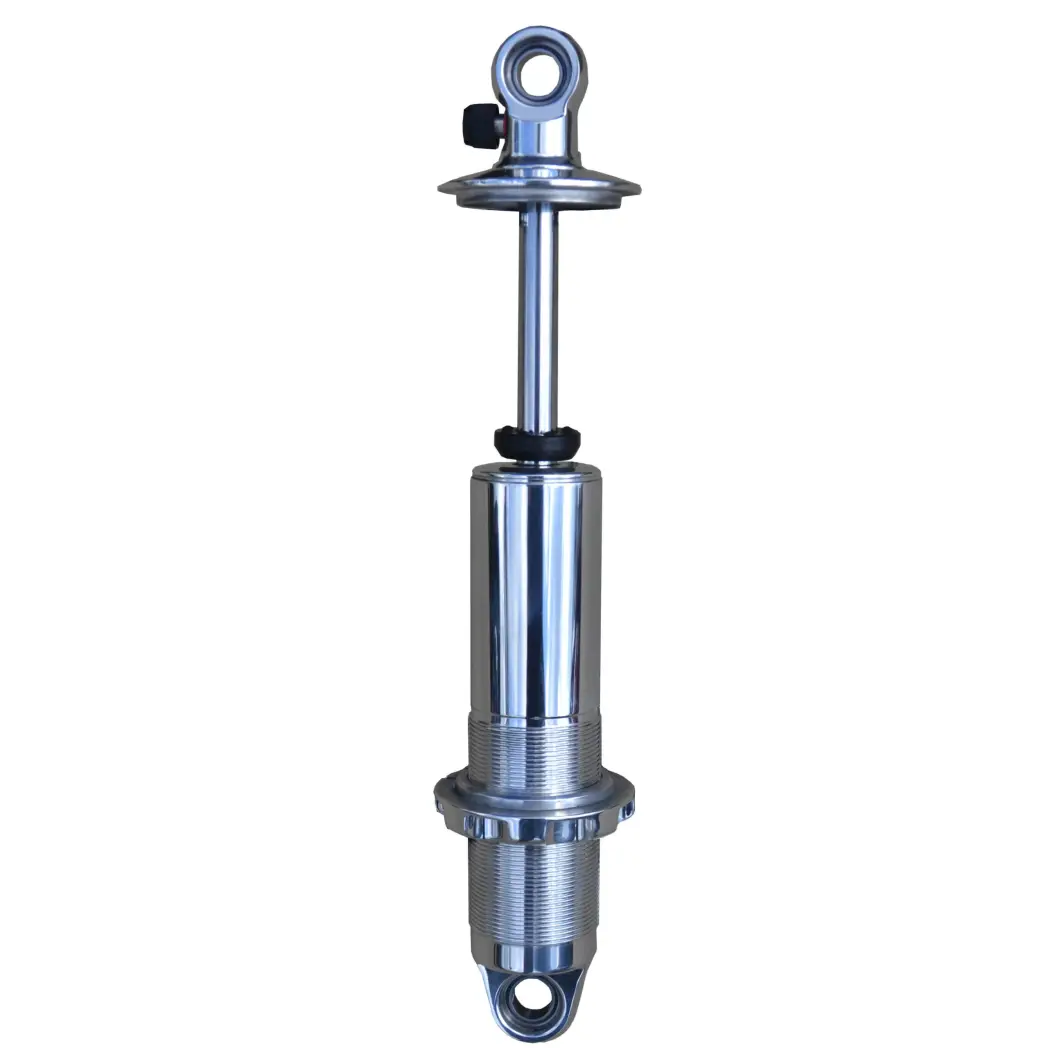

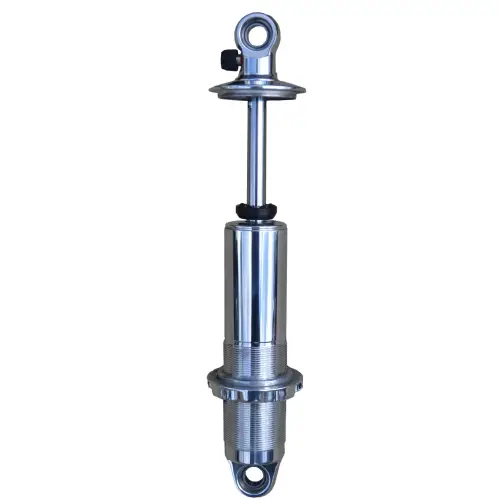

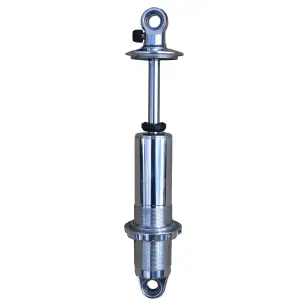

Polished HQ Coil-Over shock with 2.9" stroke and 2" stud mount | universal
24129705
Pricing:
$646.35
Description
Universal HQ Coil-Over Shock-Single Adjustable-Each
Shock Length 2.9 Inch Stroke (10.5 Inch Ride Height)
Mounting Style 2 Inch Stud Mount
Finish Polished
HQ Series Universal Coil-overs provide high performance handling, exceptional ride quality and incomparable reliability. HQ Series Universal Coil-overs can be custom configured for pro-touring cars, street rods, customs pickup trucks and pro-street cars. The quality and performance are underscored by Ridetech’s world class technical support and a million and one mile warranty. We’re here to help you choose the right coil-overs for your application. Likewise, we guarantee that they’ll last. HQ Series Coil-overs feature 24-position rebound adjustment to to help you fine tune the shocks to your driving preferences and vehicle demands. Universal Coil-overs are available in six lengths and multiple mounting configurations to adapt to nearly any application.
FEATURES:

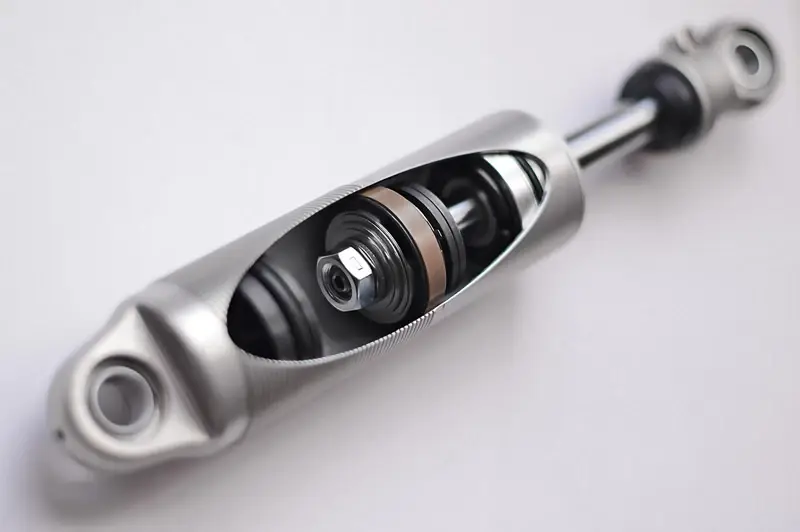

- Mono tube gas pressure design is far superior to twin-tube.
- 24-Position Rebound Adjustment
- Exclusive 1,000,001 Mile warranty
- Impact forged aluminum body provides the best combination of strength, light weight and reliable service.
- Larger 1.834″ piston significantly larger than twin tube pistons.
- Heavy duty 5/8″ chromed shaft.
- Bodies are anodized for long lasting corrosion resistant appearance.
- Double sealed rod guide with dust cover eliminates oil leakage.
- CNC machined billet aluminum adjusting hardware.
- Unique fine-threaded pinch clamp height adjuster provides easy adjustment.
Sold Individually
Included Components
1- Aluminum mono tube shock with threaded body
1- Upper spring seat
1- Lower adjuster nut
1- Upper spring seat clip
1- set of 5/8”-1/2” bearing spacer kit
1- Delrin Washer set of 2
Coil-over Dimensions
Shock | Mounting | Compressed | Ride | Extended | HQ Spring | |
Stroke | Style | Height | Height | Length | Length | |
2.9 | Eye/Eye | 8.73″ | 10.5″ | 11.63 | 7″ | |
3.6 | Eye/Eye | 9.43″ | 11.5″ | 13.03 | 8″ | |
4.1 | Eye/Eye | 10.13″ | 12.5″ | 14.23 | 10″ | |
5.2 | Eye/Eye | 11.23″ | 14.5″ | 16.43 | 12″ | |
6.3 | Eye/Eye | 12.33″ | 16″ | 18.63 | 14″ | |
6.9 | Eye/Eye | 13.13″ | 17.25″ | 20.03 | 14″ | |
2.9 | Stud/Eye | 9.03″ | 10.8″ | 11.93 | 7″ | |
3.6 | Stud/Eye | 9.73″ | 11.8″ | 13.33 | 8″ | |
4.1 | Stud/Eye | 10.43″ | 12.8 | 14.53 | 10″ | |
5.2 | Stud/Eye | 11.53″ | 14.8 | 16.73 | 12″ | |
6.3 | Stud/Eye | 12.63″ | 16.3 | 18.93 | 14″ | |
6.9 | Stud/Eye | 13.43″ | 17.55 | 20.33 | 14″ |
Application List
Universal
Details
- 24129705
- 24129705
- Ridetech
- New
Categories
Shipping Information
- Item Requires Shipping
- 4.0 lbs.
- W4.0000” x H3.0000” x L16.0000”
