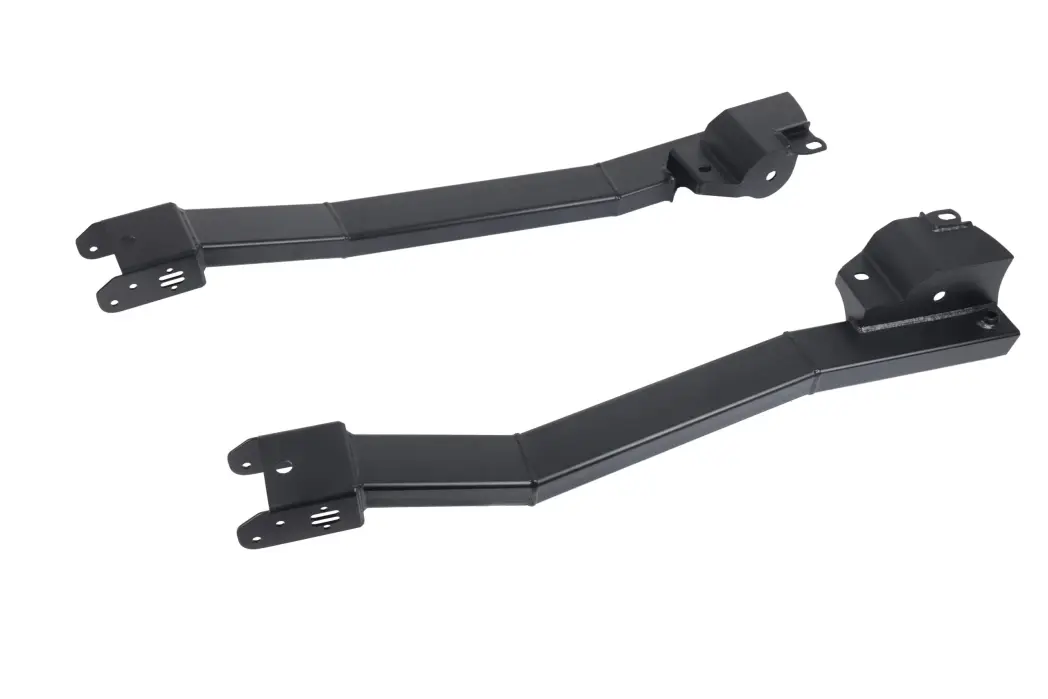

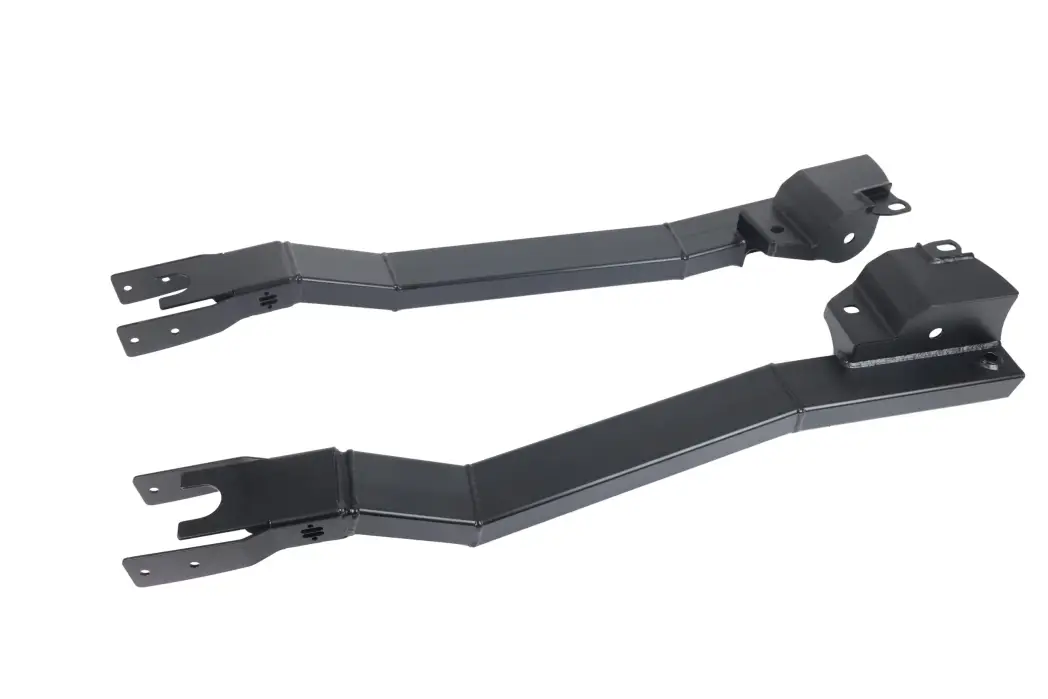

RT11197300 | RideTech Bolt-On subframe connectors (1974-1981 Camaro, Firebird)

1974-1981 Chevrolet Camaro | 1974-1981 Pontiac Firebird

11197300
Pricing: $945.20
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Subframe Connectors | 1970-1981 Camaro / Firebird

Easy to install – removes chassis flex – integrated leaf spring mount

100% compatible with:

  • Original equipment leaf springs
  • Ridetech Streetgrip composite leaf springs
  • Ridetech 4-Link rear suspension systems (except older uni-cradle design)

The Ridetech subframe connectors for the 1970-81 Chevy Camaro / Firebird adds rigidity to your vintage chassis and improve performance by reducing chassis flex.

Modern tires and aftermarket suspension components are pushing the limits of OEM chassis designs – particularly the popular GM F Body platform. Ridetech’s subframe connectors offer a simple bolt-on improvement that significantly increases the performance of the OEM chassis and dramatically transforms the handling and ride quality of your 2nd Gen Camaro / Firebird.

  • Fabricated from 1.5 in. x 3 in. x .125 wall steel for high strength

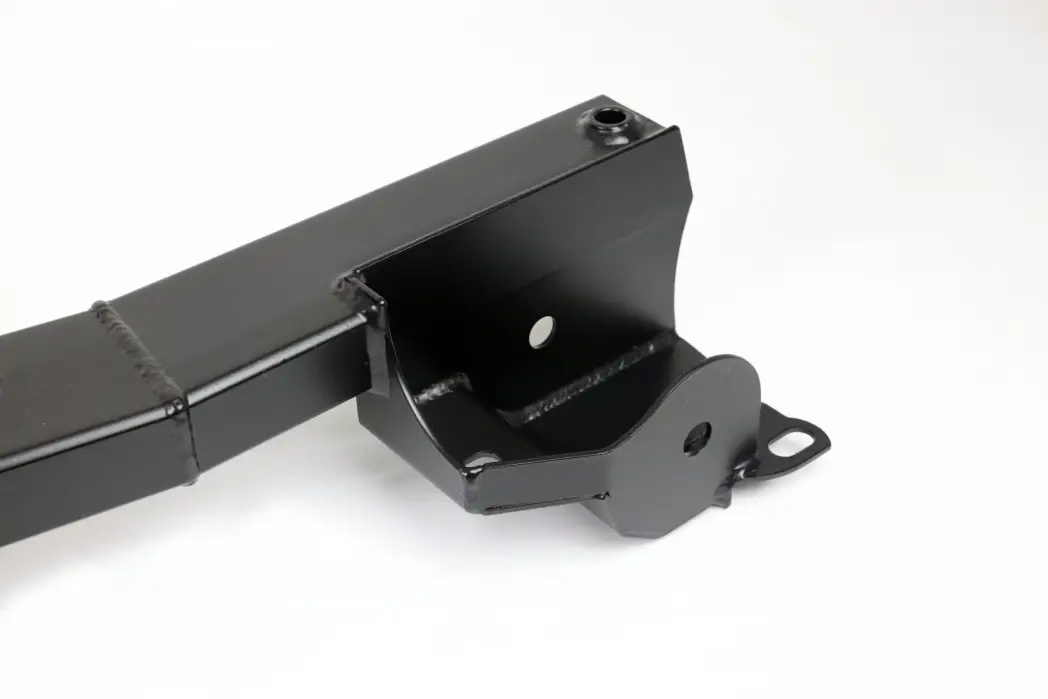

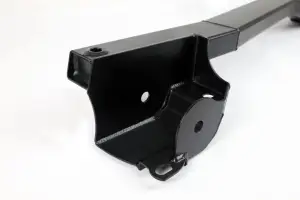

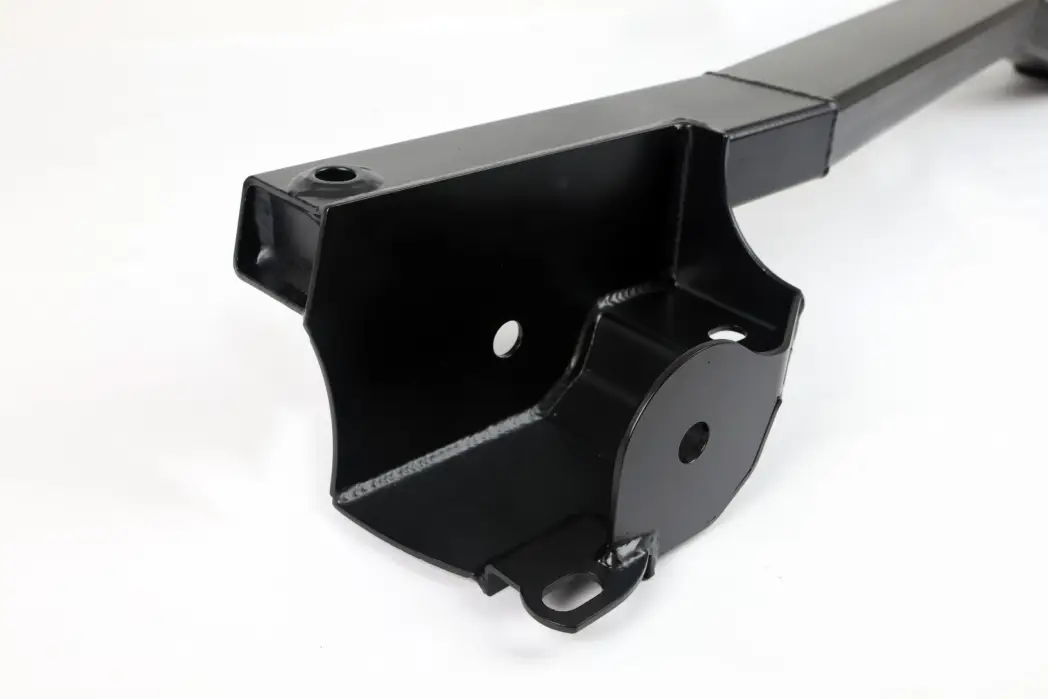

  • The rear of the subframe connector mounts solidly into three existing floor pan bolt locations for maximum strength and completely replaces the original leaf spring pocket

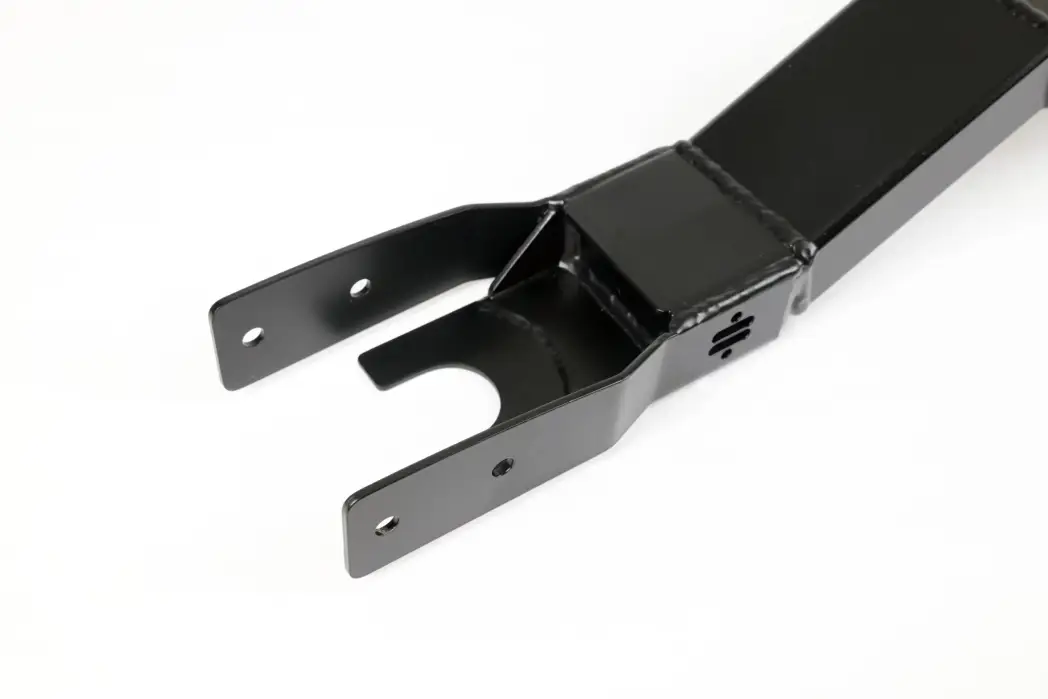

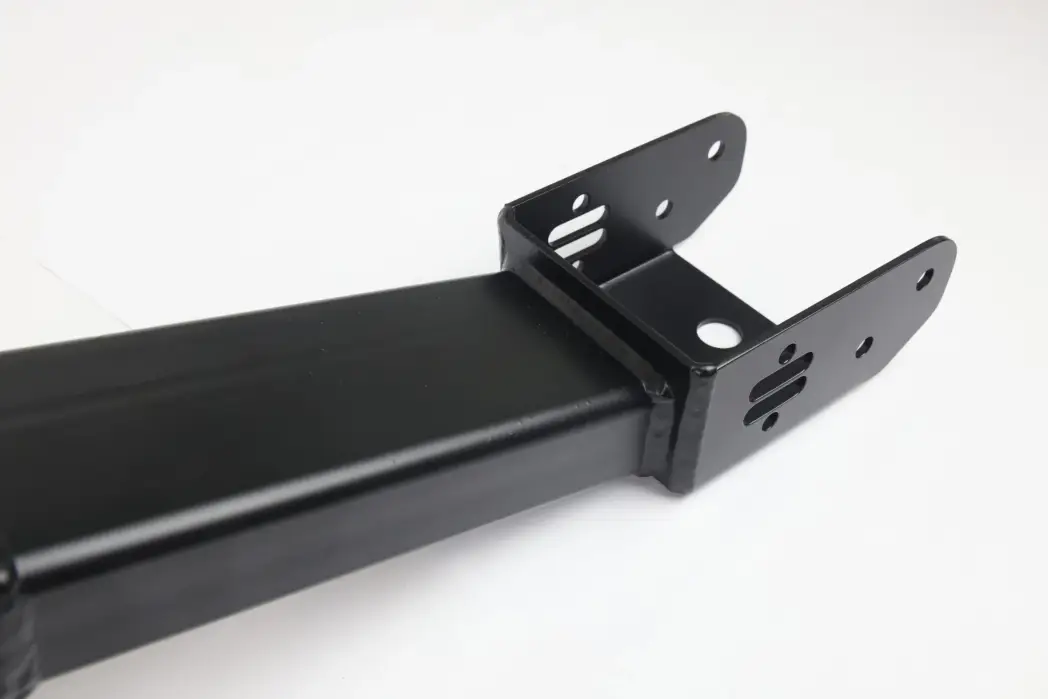

  • The front of the subframe connector bolts through the original subframe and is captured by the body bushing as well to enhance rigidity
  • No fabrication required, direct bolt-on
  • Durable satin black powder coat finish for long-lasting, high-quality appearance

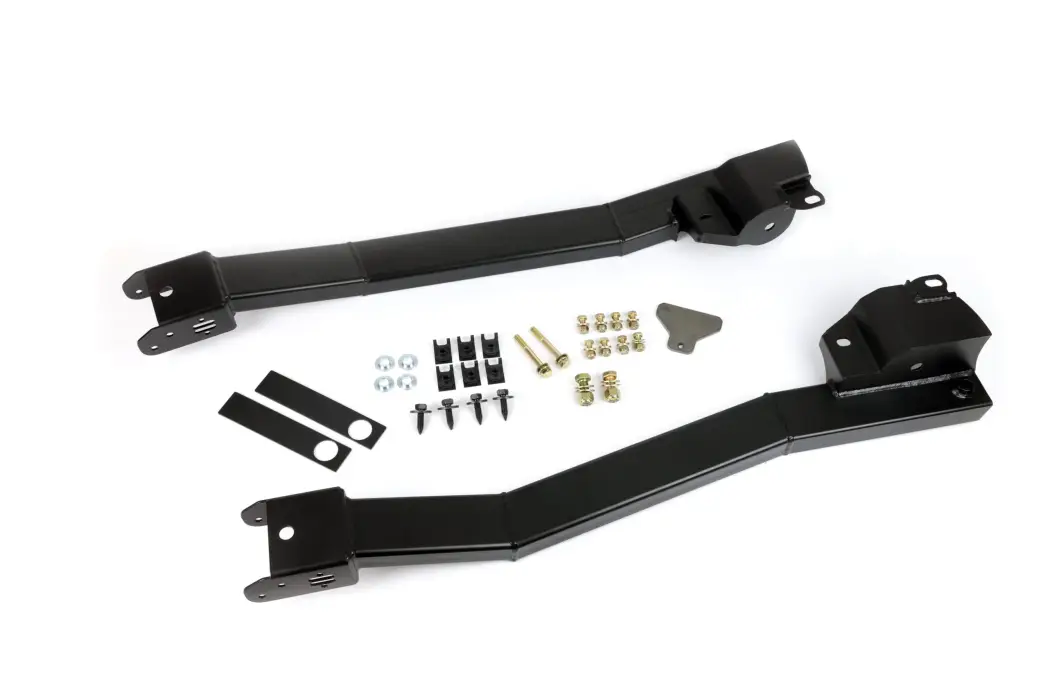

  • Includes hardware

Application List

1974-1981 Chevrolet Camaro
1974-1981 Pontiac Firebird

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 35.0 lbs.
  • W9.0000” x H9.0000” x L49.0000”
  • Free Ground Shipping | Exclusions Apply*
