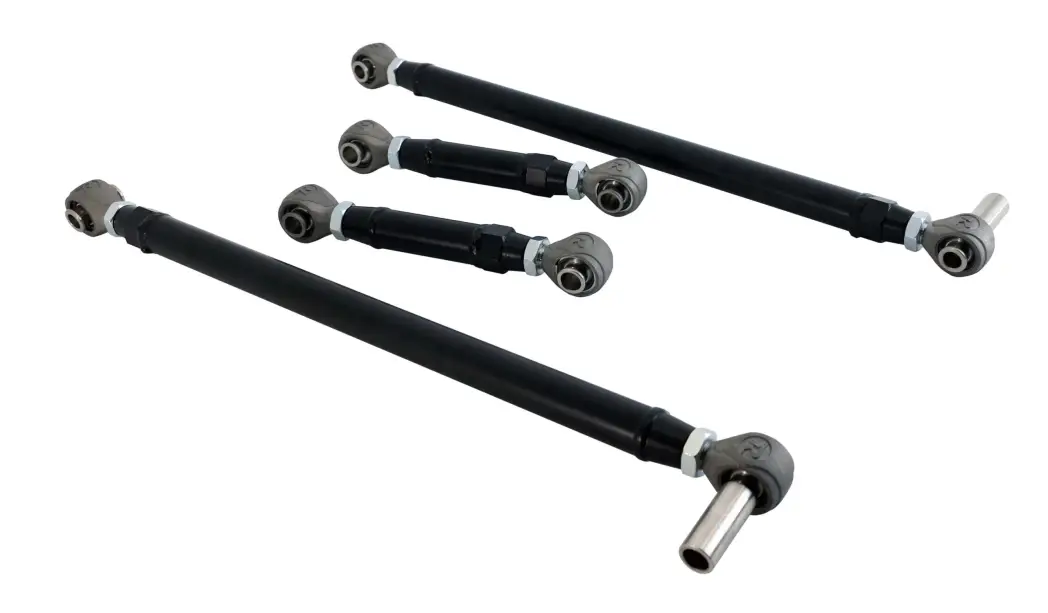

RT11017212 | RideTech Replacement 4-Link bar kit with R-Joints double adjustable (1955-1957 Bel Air, One-Fifty, Two-Ten Series)

1955-1957 Chevrolet Bel Air | 1955-1957 Chevrolet One-Fifty, Two-Ten Series

11017212
Pricing: $1,299.65
Qty:
Free Ground Shipping | Exclusions Apply*

Description

Replacement 4-Link Bars with R-Joints for Ridetech 4-Link System

Application 1955-1957 Chevrolet Bel Air, One-Fifty, Two-Ten Series
Link End Type Both End Adjustable

These kits make it simple to add the patented R-Joint Technology to an older RideTech 4 Link system.  For most applications they are available in “Standard” and “Double Adjustable” configurations and include a pair of the correct lenght upper & lower bars and required spacers.  Choose your application and adjustment type above.

Standard Kits           (NA = Non Adjustable     SA = Single Adjustable       DA = Double Adjustable)

Application Part #   Lower Bars   C-C Upper Bars  C-C Panhard Bar    C-C
55-57 Chevy (1pc & 2pc Frames) Incl. Diagonal Link 11017210   SA – 18.5″ SA – 18.5″ DA – 30.25″
67-69 Camaro (Previous Design – Upper Bars Canted Outward) 11167210   NA – 24.75″ SA – 9.25″
67-69 Camaro (Current Design – Upper Bars Canted Inward) 11167211   NA – 25.06″ SA – 10.15″
70-81 Camaro (Previous Design – Upper Bars Canted Outward) 11177210   NA – 24.75″ SA – 9.25″
70-81 Camaro (Uni Cradle Design – Upper Bars Canted Inward) 11177211   NA – 24.5″ SA – 9.25″
68-72 Nova (Previous Design – Upper Bars Canted Outward) 11267210   NA – 24.75″ SA – 9.25″
64-70 Mustang (Previous Design – Upper Bars Canted Inward) 12087210   NA – 21.75″ SA – 9.50″
64-70 Mustang (Current Design – Upper Bars Canted Outward) 12087211   NA – 21.75″ SA – 11.75″
60-64 Galaxie 12167210   NA – 23.25″ SA – 12″
68-70 Mopar “B” Body 13017210   NA – 21.75″ SA – 10″
70-74 Mopar “E” Body 13027210   NA – 21.25″ SA – 9.5″
73-87 C10 (Previous Design – CoolRide) Incl. Panhard Bar 11367210   SA – 26.5″ SA – 26.5″ SA – 17.5″
73-87 C10 (Current Design – SKW/CO) Incl. Panhard Bar 11367211   SA – 26.5″ SA – 26.5″ SA – 33.5″
88-98 C1500 (Previous Design – CoolRide) Incl. Panhard Bar 11377210   SA – 32.25″ SA – 21.5″ SA – 19.25″
Universal Triagulated 4 Link 11007210   SA – 28.37″ SA – 16.87″
Universal Parallel 4 Link 11007211   SA – 23.62″ SA – 23.62″ SA – 36.12″

Double Adjustable Kits

Application Part #   Lower Bars C-C Upper Bars C-C Panhard Bar  C-C
55-57 Chevy (1pc & 2pc Frames) Incl. Diagonal Link 11017212   DA – 18.5″ DA – 18.5″ DA – 30.25″
67-69 Camaro (Previous Design – Upper Bars Canted Outward) 11167212   DA – 24.75″ DA – 9.25″
67-69 Camaro (Current Design – Upper Bars Canted Inward) 11167213   DA – 25.06″ DA – 10.15″
70-81 Camaro (Previous Design – Upper Bars Canted Outward) 11177212   DA – 24.75″ DA – 9.25″
70-81 Camaro (Uni Cradle Design – Upper Bars Canted Inward) 11177213   DA – 24.5″ DA – 9.25″
68-72 Nova 11267212   DA – 24.75″ DA – 9.25″
64-70 Mustang (Previous Design – Upper Bars Canted Inward) 12087212   DA – 21.75″ DA – 9.50″
64-70 Mustang (Current Design – Upper Bars Canted Outward) 12087213   DA – 21.75″ DA – 11.75″
60-64 Galaxie 12167212   DA – 23.25″ DA – 12″
68-70 Mopar “B” Body 13017212   DA – 21.75″ DA – 10″
70-74 Mopar “E” Body 13027212   DA – 21.25″ DA – 9.5″

Application List

1955-1957 Chevrolet Bel Air
1955-1957 Chevrolet One-Fifty
1955-1957 Chevrolet Two-Ten Series

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 25.0 lbs.
  • W8.0000” x H8.0000” x L36.0000”
  • Free Ground Shipping | Exclusions Apply*
