RT11367210 | RideTech Replacement 4-Link Bar Kit with R-Joints single adjustable (1973-1987 C10 Pickup 2WD | Old)
1973-1987 Chevrolet C10 Pickup 2WD | 1973-1987 GMC C10 Pickup 2WD
11367210
Pricing:
$1,007.75
Description

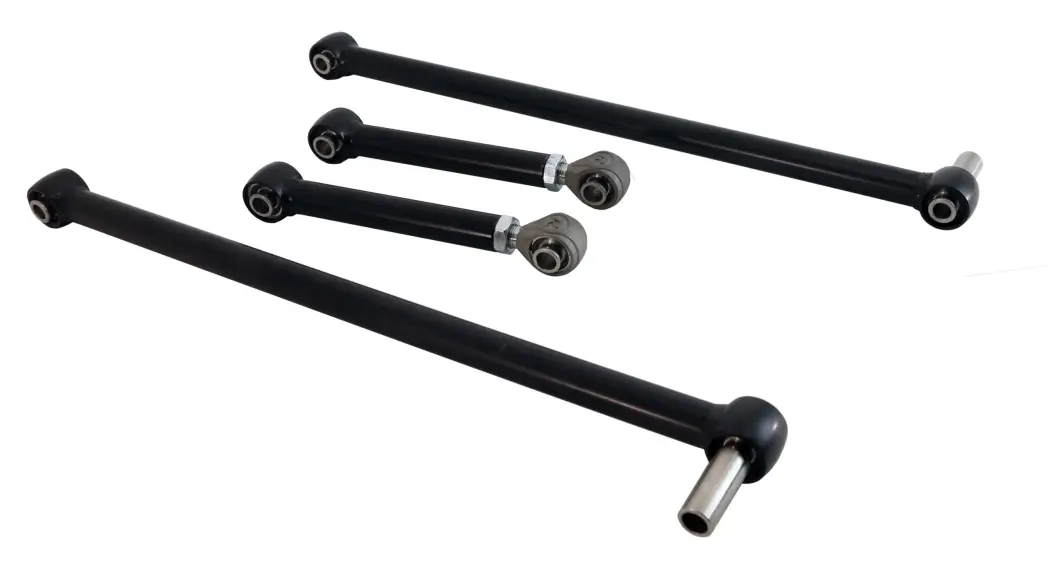

Replacement 4-Link Bars with R-Joints for Ridetech 4-Link System
Application 1973-1987 Chevrolet C10 Pickup (CoolRide Design)
Link End Type One End Adjustable
These kits make it simple to add the patented R-Joint Technology to an older RideTech 4 Link system. For most applications they are available in “Standard” and “Double Adjustable” configurations and include a pair of the correct lenght upper & lower bars and required spacers. Choose your application and adjustment type above.
Standard Kits (NA = Non Adjustable SA = Single Adjustable DA = Double Adjustable)
| Application | Part # | Lower Bars C-C | Upper Bars C-C | Panhard Bar C-C | |
| 55-57 Chevy (1pc & 2pc Frames) Incl. Diagonal Link | 11017210 | SA – 18.5″ | SA – 18.5″ | DA – 30.25″ | |
| 67-69 Camaro (Previous Design – Upper Bars Canted Outward) | 11167210 | NA – 24.75″ | SA – 9.25″ | ||
| 67-69 Camaro (Current Design – Upper Bars Canted Inward) | 11167211 | NA – 25.06″ | SA – 10.15″ | ||
| 70-81 Camaro (Previous Design – Upper Bars Canted Outward) | 11177210 | NA – 24.75″ | SA – 9.25″ | ||
| 70-81 Camaro (Uni Cradle Design – Upper Bars Canted Inward) | 11177211 | NA – 24.5″ | SA – 9.25″ | ||
| 68-72 Nova (Previous Design – Upper Bars Canted Outward) | 11267210 | NA – 24.75″ | SA – 9.25″ | ||
| 64-70 Mustang (Previous Design – Upper Bars Canted Inward) | 12087210 | NA – 21.75″ | SA – 9.50″ | ||
| 64-70 Mustang (Current Design – Upper Bars Canted Outward) | 12087211 | NA – 21.75″ | SA – 11.75″ | ||
| 60-64 Galaxie | 12167210 | NA – 23.25″ | SA – 12″ | ||
| 68-70 Mopar “B” Body | 13017210 | NA – 21.75″ | SA – 10″ | ||
| 70-74 Mopar “E” Body | 13027210 | NA – 21.25″ | SA – 9.5″ | ||
| 73-87 C10 (Previous Design – CoolRide) Incl. Panhard Bar | 11367210 | SA – 26.5″ | SA – 26.5″ | SA – 17.5″ | |
| 73-87 C10 (Current Design – SKW/CO) Incl. Panhard Bar | 11367211 | SA – 26.5″ | SA – 26.5″ | SA – 33.5″ | |
| 88-98 C1500 (Previous Design – CoolRide) Incl. Panhard Bar | 11377210 | SA – 32.25″ | SA – 21.5″ | SA – 19.25″ | |
| Universal Triagulated 4 Link | 11007210 | SA – 28.37″ | SA – 16.87″ | ||
| Universal Parallel 4 Link | 11007211 | SA – 23.62″ | SA – 23.62″ | SA – 36.12″ |
Double Adjustable Kits
| Application | Part # | Lower Bars C-C | Upper Bars C-C | Panhard Bar C-C | |
| 55-57 Chevy (1pc & 2pc Frames) Incl. Diagonal Link | 11017212 | DA – 18.5″ | DA – 18.5″ | DA – 30.25″ | |
| 67-69 Camaro (Previous Design – Upper Bars Canted Outward) | 11167212 | DA – 24.75″ | DA – 9.25″ | ||
| 67-69 Camaro (Current Design – Upper Bars Canted Inward) | 11167213 | DA – 25.06″ | DA – 10.15″ | ||
| 70-81 Camaro (Previous Design – Upper Bars Canted Outward) | 11177212 | DA – 24.75″ | DA – 9.25″ | ||
| 70-81 Camaro (Uni Cradle Design – Upper Bars Canted Inward) | 11177213 | DA – 24.5″ | DA – 9.25″ | ||
| 68-72 Nova | 11267212 | DA – 24.75″ | DA – 9.25″ | ||
| 64-70 Mustang (Previous Design – Upper Bars Canted Inward) | 12087212 | DA – 21.75″ | DA – 9.50″ | ||
| 64-70 Mustang (Current Design – Upper Bars Canted Outward) | 12087213 | DA – 21.75″ | DA – 11.75″ | ||
| 60-64 Galaxie | 12167212 | DA – 23.25″ | DA – 12″ | ||
| 68-70 Mopar “B” Body | 13017212 | DA – 21.75″ | DA – 10″ | ||
| 70-74 Mopar “E” Body | 13027212 | DA – 21.25″ | DA – 9.5″ |
Application List
1973-1987 Chevrolet C10 Pickup 2WD
1973-1987 GMC C10 Pickup 2WD
1973-1987 GMC C10 Pickup 2WD
Details
- 11367210
- 11367210
- Ridetech
- New
Categories
Shipping Information
- Item Requires Shipping
- 25.0 lbs.
- W8.0000” x H8.0000” x L36.0000”
- Free Ground Shipping | Exclusions Apply*
