RT90002896 | RideTech R-Joint XL 1 ¼”-12 RH.  Includes spacers to create 9/16" I.D. and 2-5/8" width

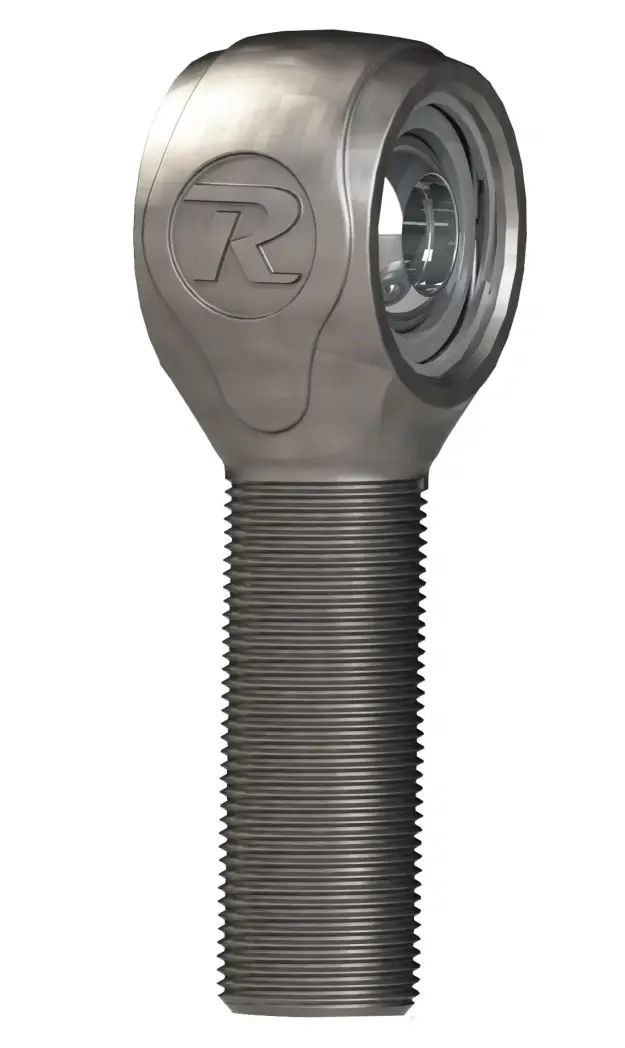

R-Joint XL Rod End with 1 ¼”-12 Right Hand Thread

R-Joint XL rod end with 1 ¼”-12 right hand thread.  Includes spacers to create 9/16″ I.D. and 2-5/8″ width.  Other bolt sizes and width’s also available.

FEATURES:

R-Joints are a revolutionary rod end design that provides low friction, full range articulation, long service life, lateral stability and quiet operation.

Articulates in 3 planes 360 degree axial rotation and 50 degrees of total lateral rotation.
17-4 investment cast stainless steel housing with rolled threads.
Polished stainless ball and RTX10 composite cage provides consistent low friction movement.
Special RTX10 composite cage needs NO lubrication.
Self cleaning design…movement not affected by ANY water, grit, dirt, or debris.
Spring loaded closure keeps mechanism tight and rattle free for LIFE!

R-Joint XL Dimensions and Articulation:

Thread Sizes: 1.25-12 RH
Through Bolt Size: 9/16”
Total Articulation: 50 deg

R-Joint XL Material Specs:

• Ball: 304 Stainless Steel
• Composite: RTX10
• Wave Spring: 17-7 Stainless Steel
• Retainer Ring: 302 Stainless Steel
• Housing: 17-4 Stainless Steel
• Spacers: 303 Stainless Steel
• Housing Manufacturing:

R-Joint XL housing is investment cast in the United States. The Casting then goes through a H900 Solution Anneal heat treatment to remove any crystallization. The heat treatment both increases tensile strength and ductility. All threading and machining is performed post heat treatment.

Composite Yield [starts to deform]: 17,250lbs
Composite Failure: 17,750lbs
Housing Yield [starts to deform]: 95,000lbs
Housing Failure: 1.00 Thread: 109,850lbs
1.25 Thread: 121,765lbs
