BDS577FS | BDS Suspension 6 Inch Lift Kit For Ford F-150 4WD (2009-2013) 2WD | Rear Fox 2.0 Performance Series Shocks
6 Inch Lift Kit For Ford F-150 4WD (2009-2013) 2WD | Rear Fox 2.0 Performance Series Shocks
Description
BDS Suspension developed a 2wd specific 6 inch lift kit suspension system for your Ford F150 2WD truck. Designed to improve stance, performance, and capability, this kit includes everything necessary to set your truck up right with clearance for up to 37" tires.
This kit takes advantage of BDS's tried and true high-clearance design for improved ground clearance, strength, and offroad protection while correcting suspension and steering geometry for great on-road handling characteristics. Up front the kit utilizes high-arched 1/4-inch thick steel crossmembers, top mounted strut spacers, and skidplate designed for offroad protection. Steering geometry is corrected at the new taller ride height with a pair of massive CNC-machined ductile iron steering knuckles. These combined with the provided sway bar relocation brackets, brake line brackets, alignment cam bolts, supplied hardware and more provide a comprehensive front suspension lift ready for use and abuse.
In the rear BDS utilizes high strength cast steel lift blocks and longer u-bolts to lift and level the stance along and NX2 Nitro or optional FOX 2.0 Performance Series shocks.
Features & Benefits
- High clearance crossmembers improve strength and offroad capability
- Heavy duty steering knuckles to correct steering geometry and maintain ESC system compatibility
- Top mounted strut spacers to provide lift and install easily
- Differential skid plate for improved offroad protection
- Rear lift blocks and u-bolts to lift and level the stance
- Standard NX2 Nitro shocks with vehicle-specific valving for better control
- Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road
Recommended Tires & Wheels
(Trimming may be required)
- 35 x 12.5 with 18 x 9 and 4.5 in. Backspace
- 37 x 12.5 with 18 x 9 and 5 in. Backspace
- 37 x 12.5 with 20 x 9 and 5.5 in. Backspace
High Clearance Crossmemebers
BDS maximizes ground clearance with their heavy duty 1/4-inch thick laser cut perfect fit crossmembers. Paired with a front skid plate system that bolts together to create a rigid subframe while adding extra protection.
Heavy Duty Steering Knuckles
BDS corrects steering geometry at the new taller ride height using a pair of high-strength, CNC machined ductile cast iron steering knuckle design to work with replacement tie rod ends to maintain steering angles for proper function and ESC compatibility.
Rear Shock Option
NX2 Nitro Series
- Nitrogen-charged
- Twin-tube design
- 10-stage velocity-sensitive valving
- Dual-welded ends for increased strength
- 1-3/8-inch high-flow piston
- Self-lubricating seals
- Silver powder coat finish
FOX 2.0 Performance Series
- 2-inch Impact extruded aluminum body
- Internal floating piston (IFP) monotube design
- CNC machined 6061-T6 aluminum mounting ends
- Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Important Notes
- Strut compressor required for installation.
- 18" or larger diameter wheels required. Stock 17" & 18" wheels cannot be reinstalled. Stock 20" wheels can be used with up to a 305/60-20 tires.
- E-brake bracket required for factory powersteps (123018)
- The 4" blocks will net a level/tail LOW stance. The 5" blocks will net a level/tail HIGH stance.
- Models with a 2-piece rear driveshaft may require carrier bearing drop shim kit #122405
- Will not fit HD models (7 lug).
- This kit is FMVSS No.126 Compliant
Installation
Est. Install Time :
8-10 hrsDifficulty Level :
Difficult
Specialty Tools Needed :
Coil Spring Compressor, Metric/Standard Socket Wrench Set, Cut-off Tool
Specification
- Front Lift Method : Cross-Member
- Rear Lift Method : Block
- Shocks Included : Yes
- Front Lift Height : 6"
- Rear Lift Height : 5"
Application List
Year | Make | Model | Submodel | Drive Type | Fuel Type | Position | Lift Height |
---|---|---|---|---|---|---|---|
2009 | Ford | F-150 | Flotillera | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | King Ranch | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | Lariat | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | Platinum | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | STX | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | XL | RWD | ALL | ALL | ALL |
2009 | Ford | F-150 | XLT | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | FX2 | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | Harley-Davidson Edition | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | King Ranch | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | Lariat | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | Platinum | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | STX | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | XL | RWD | ALL | ALL | ALL |
2010 | Ford | F-150 | XLT | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | FX2 | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | Harley-Davidson Edition | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | King Ranch | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | Lariat | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | Lariat Limited | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | Platinum | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | STX | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | XL | RWD | ALL | ALL | ALL |
2011 | Ford | F-150 | XLT | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | FX2 | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | Harley-Davidson Edition | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | King Ranch | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | Lariat | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | Platinum | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | STX | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | XL | RWD | ALL | ALL | ALL |
2012 | Ford | F-150 | XLT | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | FX2 | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | King Ranch | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | Lariat | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | Limited | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | Platinum | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | STX | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | XL | RWD | ALL | ALL | ALL |
2013 | Ford | F-150 | XLT | RWD | ALL | ALL | ALL |

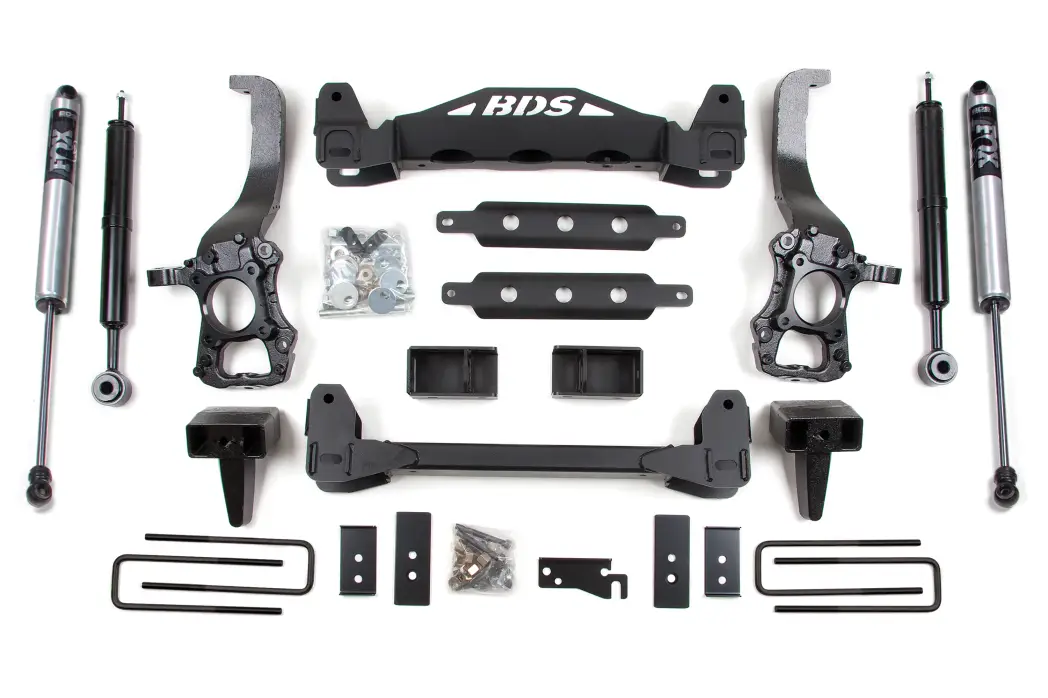

Component List
1 BDS023624 09 Ford F150 2wd Front Box Kit (3of3)
1 BDS023625 2009-2014 Ford F150 4-6in Box Kit (1of4)
1 BDS023626 2009-2014 Ford F150 4-6in Box Kit (2of4)
1 BDS98163 09 Ford F150 6in Strut Kit
2 FOX98224760 Fox 2.0 Shock 33.85 x 20.75 x 2- EB1/EB1
Tires & Wheels
35 x 12.5 with 18 x 9 and 4.5 in. Backspace
37 x 12.5 with 18 x 9 and 5 in. Backspace
37 x 12.5 with 20 x 9 and 5.5 in. Backspace
Details
- BDS577FS
- BDS577FS
- 840416417876
- BDS Suspension
- New
Categories
Shipping Information
- Item Requires Shipping
- 149.0 lbs.
- W24.0000” x H18.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
