FTSK1180DL | Fabtech 3.5 Inch BJ UCA Kit With Dirt LogicSS Resi (2020-2024 Silverado, Sierra 3500 4WD)

2020-2024 Chevrolet Silverado 3500 HD 4WD | 2020-2024 GMC Sierra 3500 HD 4WD

K1180DL
Pricing: $3,399.54
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2020-24 CHEVY SILVERADO 3500HD | GMC SIERRA 3500HD 4WD

This high quality GM 3500HD lift kit offers an increased ride height for enthusiasts looking to run a 35" tall tire with enhanced offroad capabilities. The stance of the vehicle will become more level front to rear for an aggressive look.

The factory GM upper control arms are replaced with Fabtech’s heavy duty ball joint tubular arms. They are constructed with 1.50" OD DOM steel tubing and feature a high travel ball joint that is sizably larger than stock. This provides for increased strength both on and offroad. Fabtech sets the ball joint angle to allow for full travel without bind throughout the travel range.

Fabtech’s forged torsion bar keys replace the factory units and allow for additional ride height adjustment to work in conjunction with the new upper control arms.

The rear receives 2" blocks and U-bolts to help level the stance of the vehicle.

Fabtech offers their top of the line Dirt Logic 2.25 shocks with this quality 3500HD lift kit. They are constructed with a stainless steel body and a NitroSteel® piston rod for maximum corrosion resistance and durability. The front shocks comes with remote aluminum reservoirs to help cool the shock oil for more consistent damping in rugged terrain. These high quality Dirt Logic shocks will provide a superior ride quality both on and offroad with excellent damping for offroad use.

This 3.5" HD lift kit comes with high quality components that add strength and reliability to the vehicle while giving it a commanding presence.

FEATURES

  • Tubular Steel Upper Control Arms
  • Additional 1 degree of caster built in
  • 1.5" OD x .120" wall DOM tubing
  • High travel oversized ball joint
  • 2.25" OD x .250" wall DOM bushing barrels
  • Heavy duty forged torsion bar keys

PART NUMBERS

QTY PART # DESCRIPTION

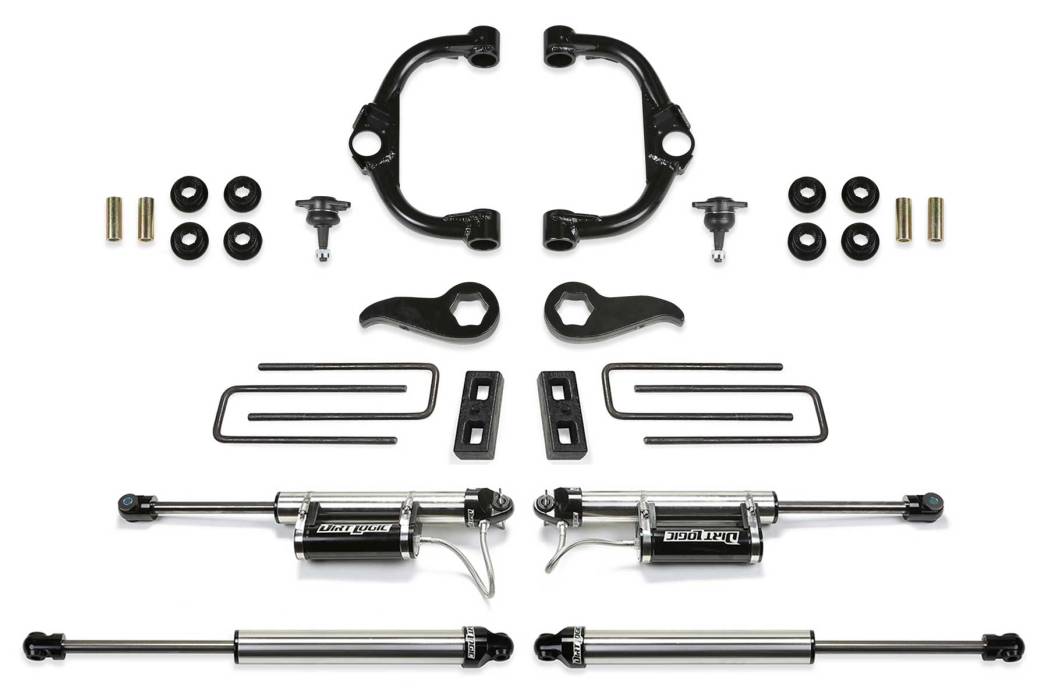

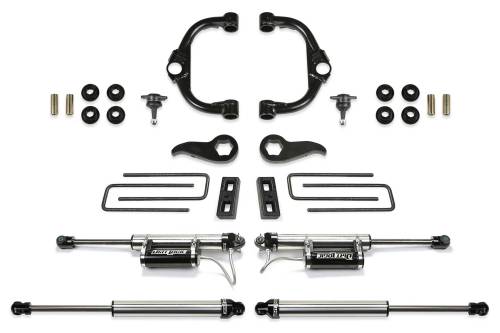

1 FTS21276 COMPONENT BOX
1 FTS755 U-BOLT KIT
1 FTSBK21 REAR BLOCK KIT
1 FTS801532D FRONT DIRT LOGIC 2.25 RESI SHOCK [DRIVER]
1 FTS801532P FRONT DIRT LOGIC 2.25 RESI SHOCK [PASSENGER]
2 FTS810942 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
20. Does not fit standard cab models.
199. Does not fit GMC AT4 or Chevy Trail Boss models.

Application List

2020-2024 Chevrolet Silverado 3500 HD 4WD
2020-2024 GMC Sierra 3500 HD 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 106.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
