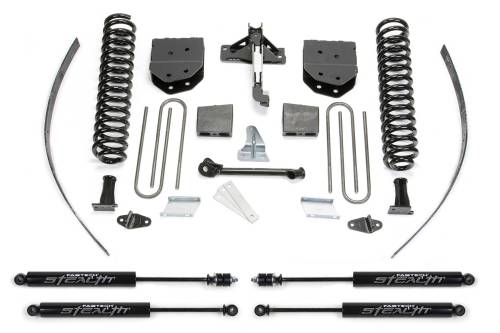

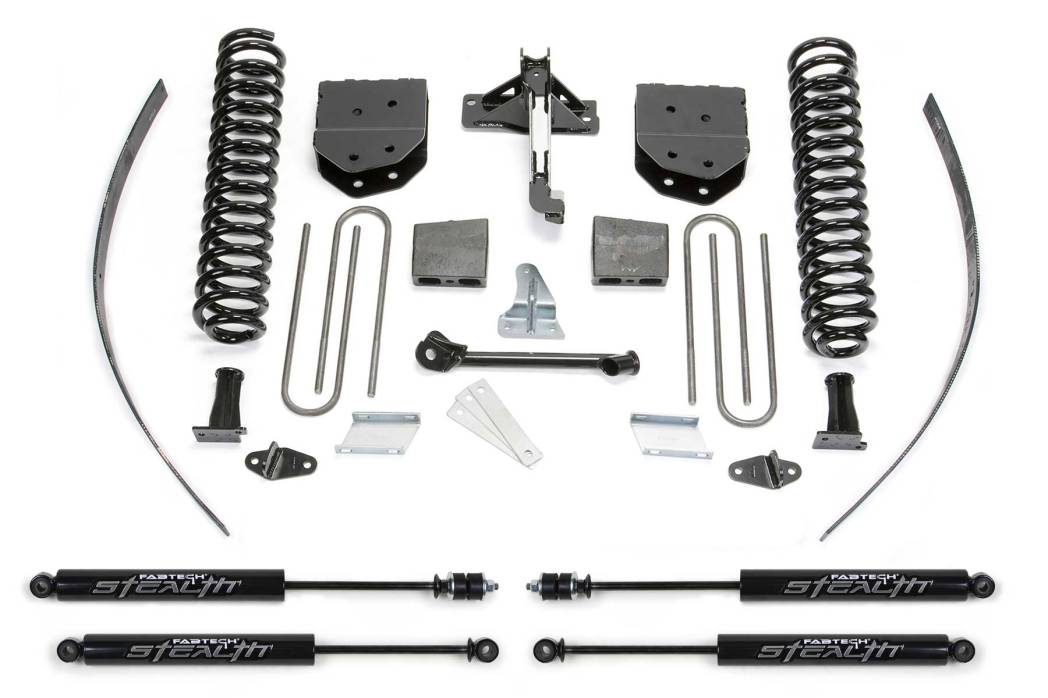

FTSK2122M | Fabtech 8 Inch Basic System With Stealth Shocks (2008-2016 F250 Super Duty 4WD with Factory Overload)

2008-2016 Ford F250 Super Duty 4WD | With Factory Overloads

K2122M
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $2,455.75
Qty:

Description

2008-16 FORD F250 4WD

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block and Add-a-leaf kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

FEATURES

  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Add-a-Leaf
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22025BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22105 REAR BLOCK & ADD-A-LEAF KIT
2 FTS6189 FRONT STEALTH SHOCKS
2 FTS6063 REAR STEALTH SHOCKS

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2008-2016 Ford F250 Super Duty 4WD With Factory Overloads

Tires & Wheels

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 257.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
