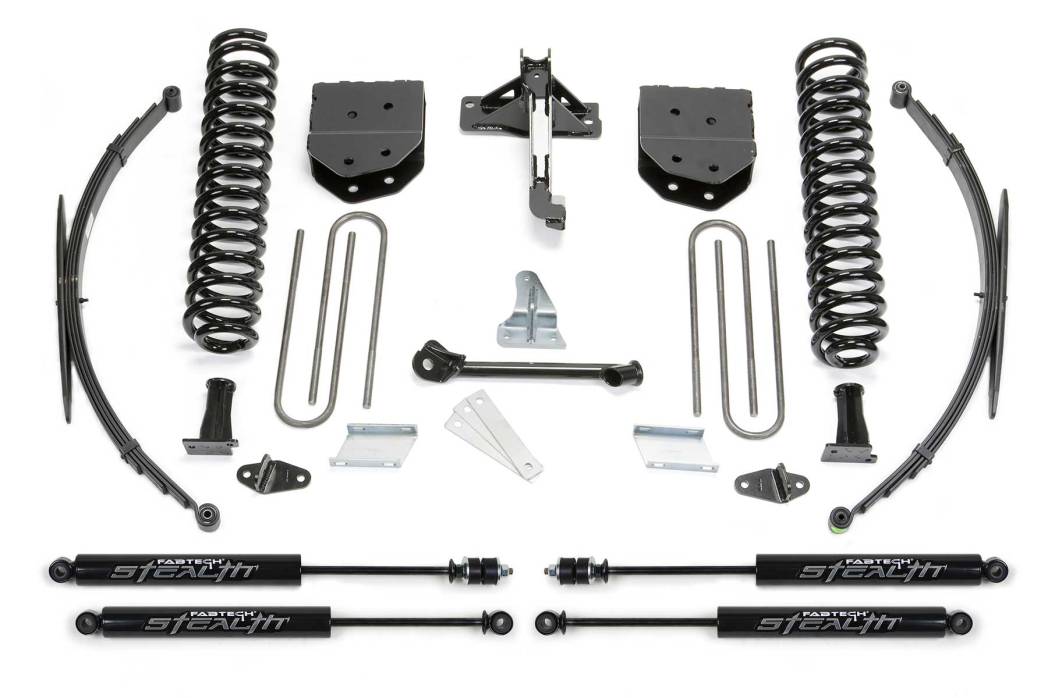

FTSK2127M | Fabtech 8 Inch Basic System With Stealth Shocks and Rear Leag Springs (2008-2016 F250, F350 Super Duty 4WD)

2008-2016 Ford F250 Super Duty 4WD | 2008-2016 Ford F350 Super Duty 4WD

K2127M
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,443.63
Qty:

Description

2008-16 FORD F250/F350 4WD
2011-13 FORD F450 4WD [8 LUG]

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and replacement Leaf Springs in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

FEATURES

  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Leaf Springs

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22025BK COIL BOX KIT
1 FTS22138 COMPONENT BOX
1 FTS22114 REAR LEAF SPRING KIT
2 FTS6189 FRONT STEALTH SHOCKS
2 FTS6063 REAR STEALTH SHOCKS

FOOTNOTES

3. Non dually models only.
27. Front driveline modification may be required to clear exhaust on gas motor.
29. Rear leaf springs may reduce load carrying capacity.

Application List

2008-2016 Ford F250 Super Duty 4WD
2008-2016 Ford F350 Super Duty 4WD
2011-2013 Ford F450 Super Duty 4WD 8 Lug

Tires & Wheels

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 476.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
