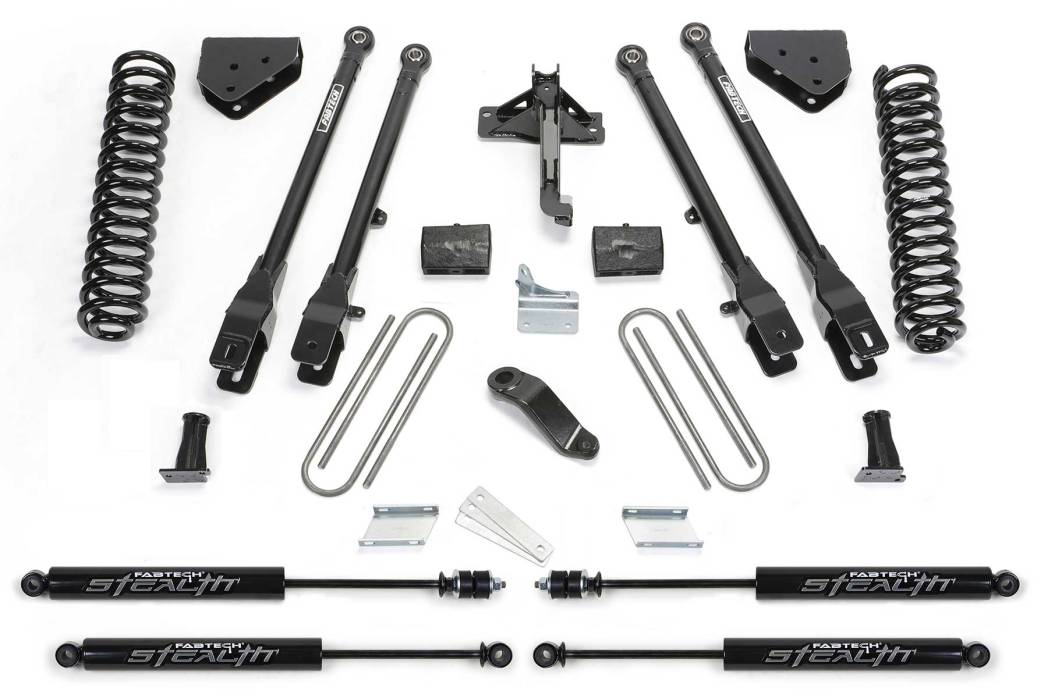

FTSK2132M | Fabtech 6 Inch 4 Link System With Coils and Stealth Shocks (2008-2016 F350, F450 Super Duty 4WD 8 Lug)
2008-2016 Ford F350 Super Duty 4WD | 2011-2013 Ford F450 Super Duty 4WD 8 Lug
Description
2008-16 FORD F350 4WD
2011-13 FORD F450 4WD [8 LUG]
At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a Block & U-bolt kit.
FEATURES
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22024BK | COIL BOX KIT |
1 | FTS22140 | COMPONENT BOX 1 |
1 | FTS22080BK | COMPONENT BOX 2 |
1 | FTS22103 | REAR BLOCK KIT |
2 | FTS6188 | FRONT STEALTH SHOCKS |
2 | FTS6063 | REAR STEALTH SHOCKS |
FOOTNOTES
3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Application List
2011-2013 Ford F450 Super Duty 4WD 8 Lug
Tires & Wheels
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K2132M
- K2132M
- 674866092341
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 290.1 lbs.
- W24.0000” x H12.0000” x L48.0000”
