FTSK2193DL | Fabtech 4 Inch Performance System With Dirt LogicSS 2.5 Coilovers and Rear Shocks DLSS (2015-2020 F150 Pickup 4WD)
2015-2020 Ford F150 Pickup 4wd
Description
2015-20 FORD F150 4WD
Fabtech’s 4” F150 system utilizes their proven heavy duty construction and design features found in their 6” systems but with less lift and at a much lower price. This 4” System allows use of 33" tall tires and features high arched lower control arm crossmembers constructed of 1/4 " thick steel for maximum strength. The Fabtech ductile iron steering knuckles retain the stock track width keeping tires under the fender for a clean appearance. Rear lift is accomplished with a block and u-bolt configuration.
The Performance System features Dirt Logic 2.5 Coilover front shocks and Dirt Logic 2.25 rear shocks for aggressive offroad capabilities with a smooth highway ride.
The 4” System allows use of 33” tires and is ESC (Electronic Stability Control) and Traction Control compliant.
FEATURES
- Heavy Duty 1/4″ Thick, High Arched Crossmember
- Ductile Iron Steering Knuckles
- Front Dirt Logic 2.5 Coilovers
- Rear Block & U-bolt Kit

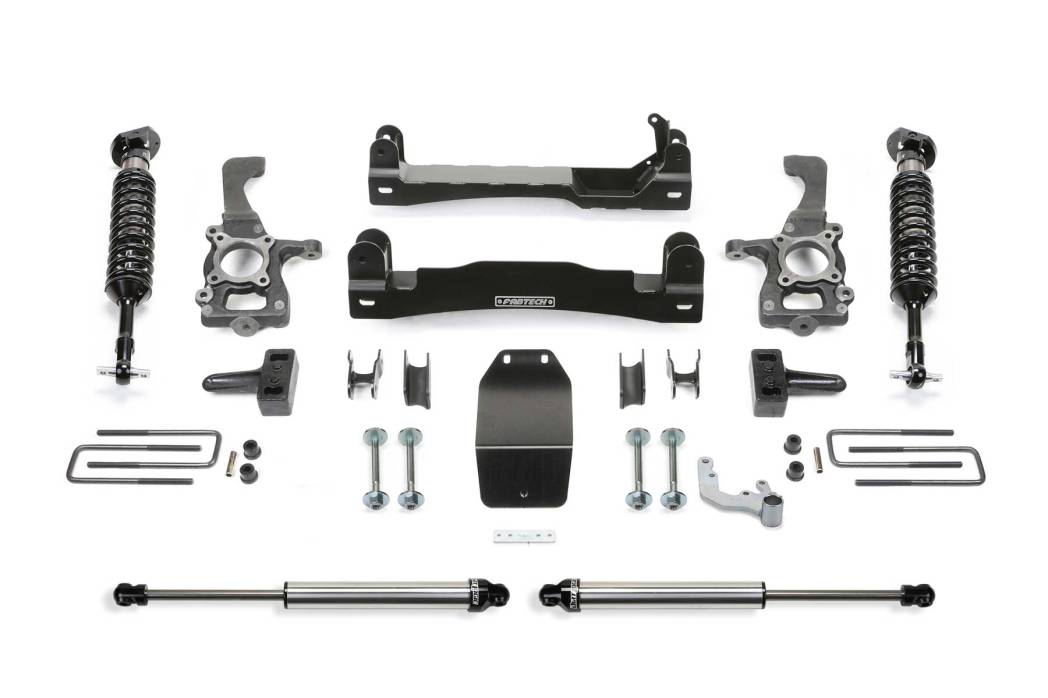

PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22176 | COMPONENT BOX 1 |
1 | FTS22178 | COMPONENT BOX 2 |
1 | FTS22183 | FRONT DIRT LOGIC 2.5 COILOVERS |
2 | FTS810292 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
171. Will not fit diesel models.
Application List
Tires & Wheels
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K2193DL
- K2193DL
- 674866099258
- Fabtech Motorsports
- New
