FTSK2203DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2015-2020 F150 Pickup 4WD)

2015-2020 Ford F150 Pickup 4wd

K2203DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $6,497.96
Qty:

Description

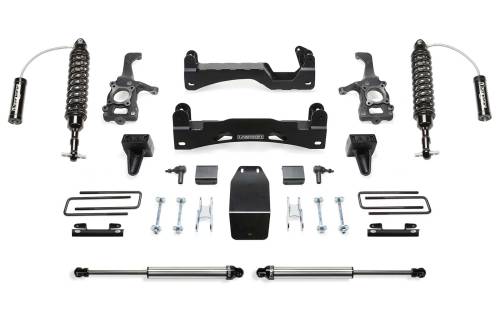

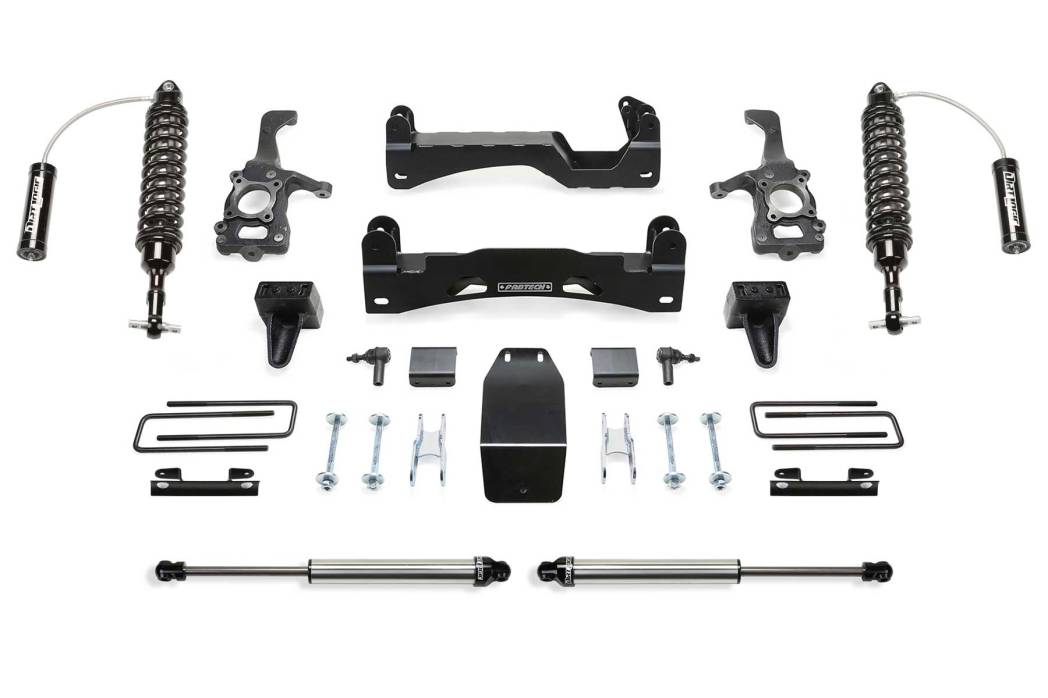

This 6" Performance system includes heavy duty 1/4" thick steel lower control arm crossmembers with an integrated front differential skid plate for protection and increased front suspension strength. This is an important construction feature to properly handle large tires on and offroad. Fabtech’s extended length ductile iron steering knuckles allow use of 18", 20" or 22" wheels.

This 6″ Performance System comes with Dirt Logic 2.5 Resi Coilovers featuring cold wound coil springs in the front and Dirt Logic 2.25 in the rear for aggressive offroad driving.

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Front Dirt Logic 2.5 Resi Coilovers
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22181 COMPONENT BOX 1
1 FTS22180 COMPONENT BOX 2
1 FTS22186 FRONT DIRT LOGIC COILOVER W/RESI
2 FTS810292 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

14. Can not use OEM wheel and tire.
17. Does not fit standard cab models.
123. Will not fit Raptor models.

Application List

2015-2020 Ford F150 Pickup 4wd

Tires & Wheels

Tire Size – 35/13.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 35/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 285/55R22 Wheel Size – 22×9.5 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 325.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
