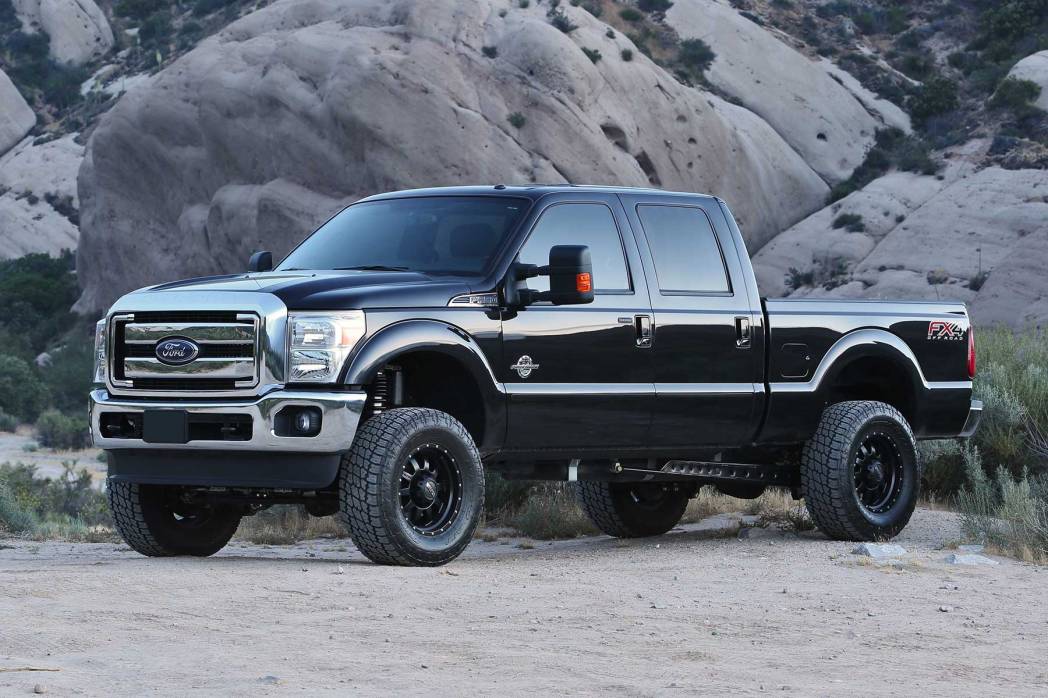

FTSK2204DL | Fabtech 4 Inch Radius Arm System With DLSS Coilovers and Rear Shocks (2011-2016 F250 Super Duty 4WD)

2011-2016 Ford F250 Super Duty 4WD

K2204DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $9,157.70
Qty:

Description

2011-16 FORD F250 4WD

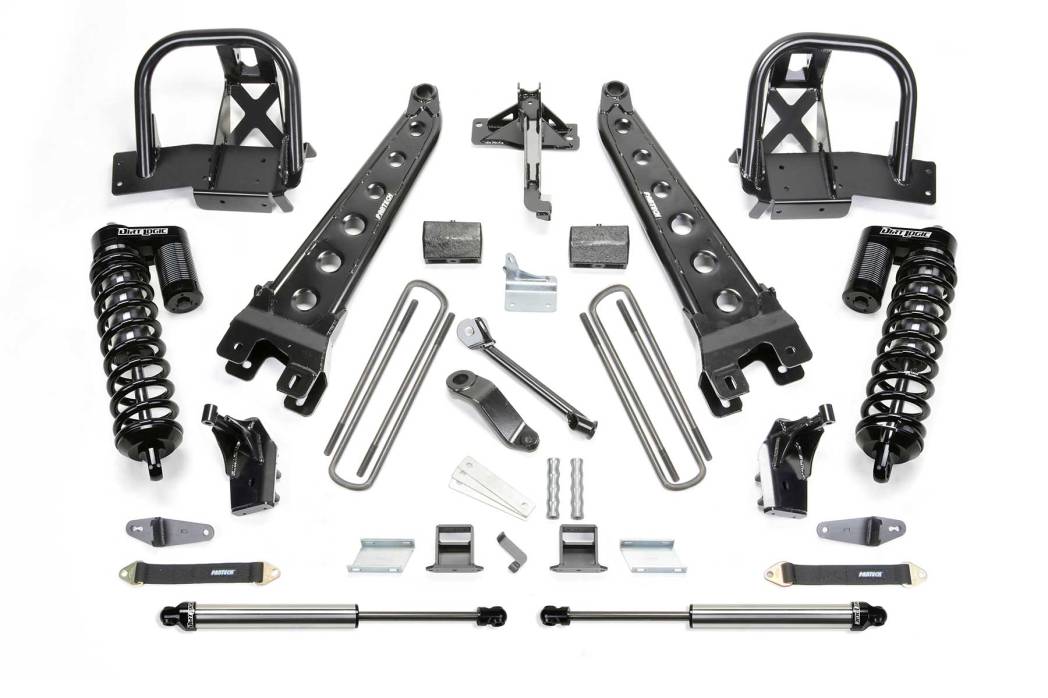

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift is accomplished with Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

FEATURES

  • Fabtech Replacement Radius Arms
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22101 COMPONENT BOX 1
1 FTS22139 COMPONENT BOX 2
1 FTS22143 FRONT COILOVER CONVERSION
2 FTS835222 FRONT DIRT LOGIC 4.0 COILOVER
2 FTS810052 REAR DIRT LOGIC 2.25 NON RESI

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2011-2016 Ford F250 Super Duty 4WD

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 440.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
