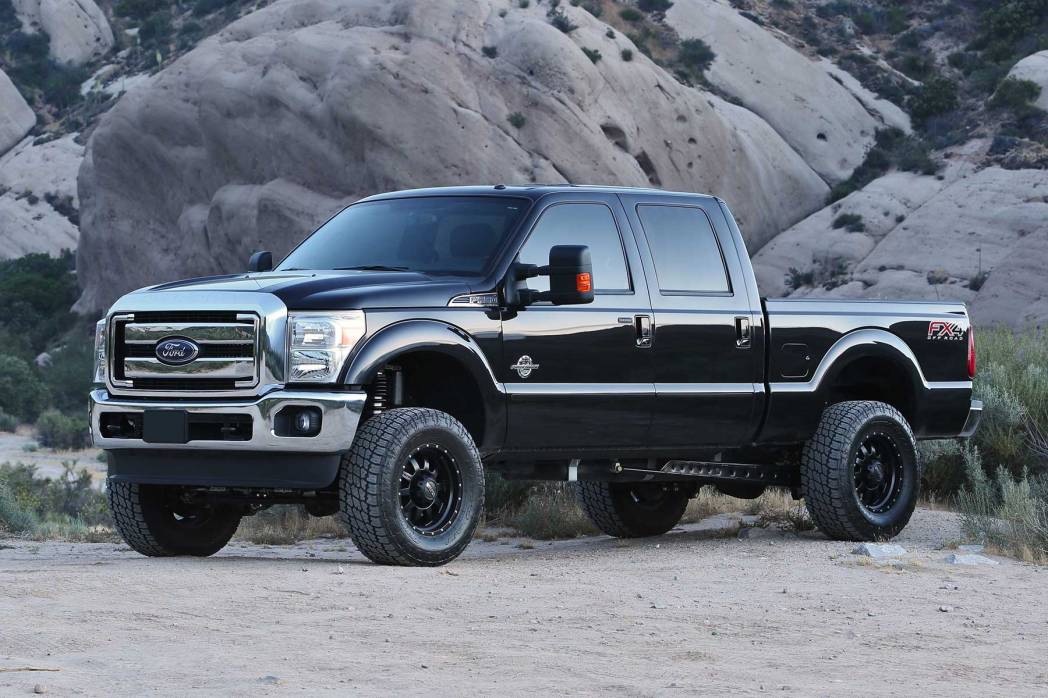

FTSK2206DL | Fabtech 4 Inch Radius Arm System With DLSS Coilovers and Rear Shocks (2011-2016 F350 Super Duty 4WD )
2011-2016 Ford F350 Super Duty 4WD
K2206DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$9,157.70
Description
2011-16 FORD F350 4WD

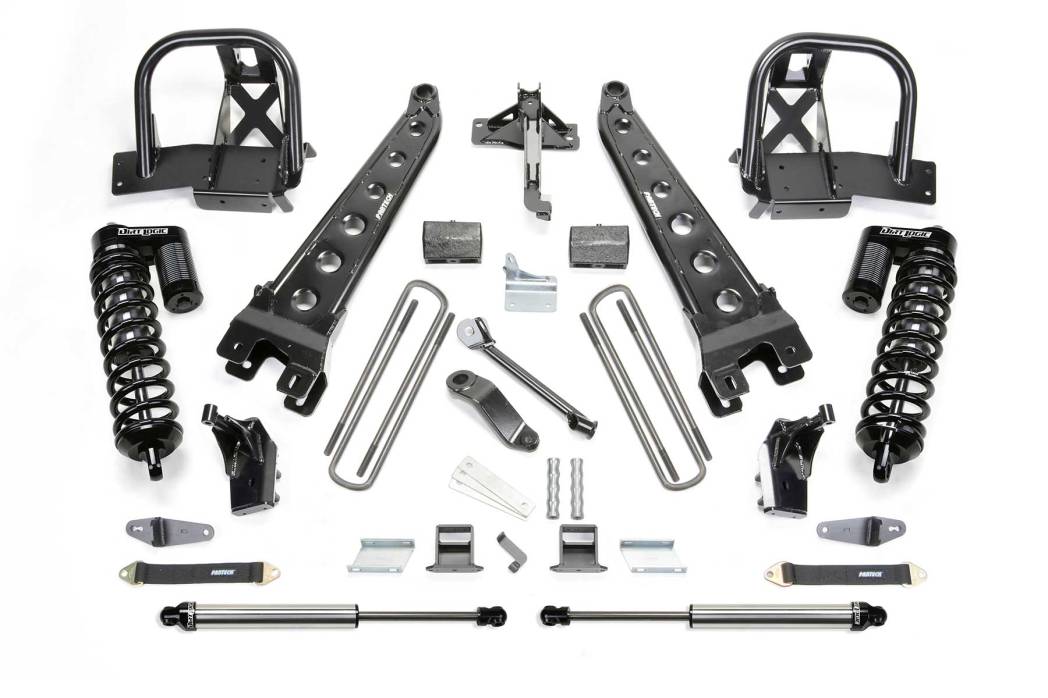

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift is accomplished with Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.
FEATURES
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Coilovers
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22103 | COMPONENT BOX 1 |
1 | FTS22139 | COMPONENT BOX 2 |
1 | FTS22143 | FRONT COILOVER CONVERSION |
2 | FTS835222 | FRONT DIRT LOGIC 4.0 COILOVER |
2 | FTS810052 | REAR DIRT LOGIC 2.25 NON RESI |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Application List
2011-2016 Ford F350 Super Duty 4WD
Tires & Wheels
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Details
- K2206DL
- K2206DL
- 674866102262
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 430.8 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
