FTSK2211 | Fabtech 4 Inch Radius Arm System With Coils and Performance Shocks (2008-2016 F250, F350 Super Duty 4WD)

2008-2016 Ford F250 Super Duty 4WD | 2008-2016 Ford F350 Super Duty 4WD

K2211
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,194.15
Qty:

Description

2008-16 FORD F250/F350 4WD

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

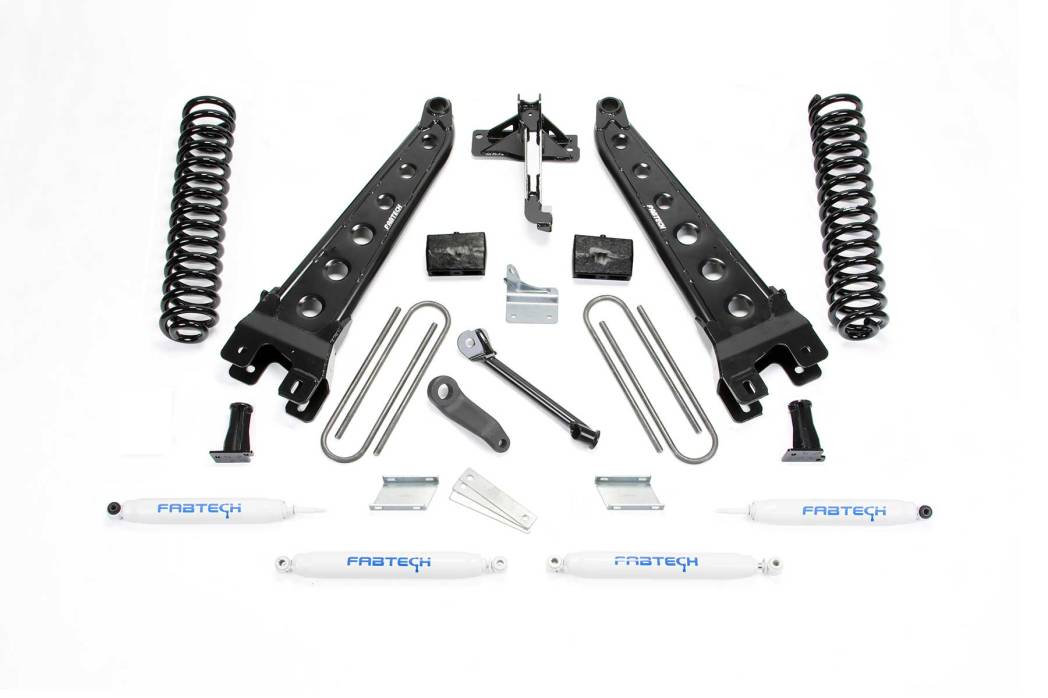

FEATURES

  • Fabtech Replacement Radius Arms
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22207 COIL BOX KIT
1 FTS22209 COMPONENT BOX
1 FTS22211 REAR BOX
2 FTS7236 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2008-2016 Ford F250 Super Duty 4WD
2008-2016 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 234.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
