FTSK2211DL | Fabtech 4 Inch Radius Arm System With Coils and DLSS Shocks (2008-2016 F250, F350 Super Duty 4WD)
2008-2016 Ford F250 Super Duty 4WD | 2008-2016 Ford F350 Super Duty 4WD
K2211DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$4,760.01
Description
2008-16 FORD F250/F350 4WD
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

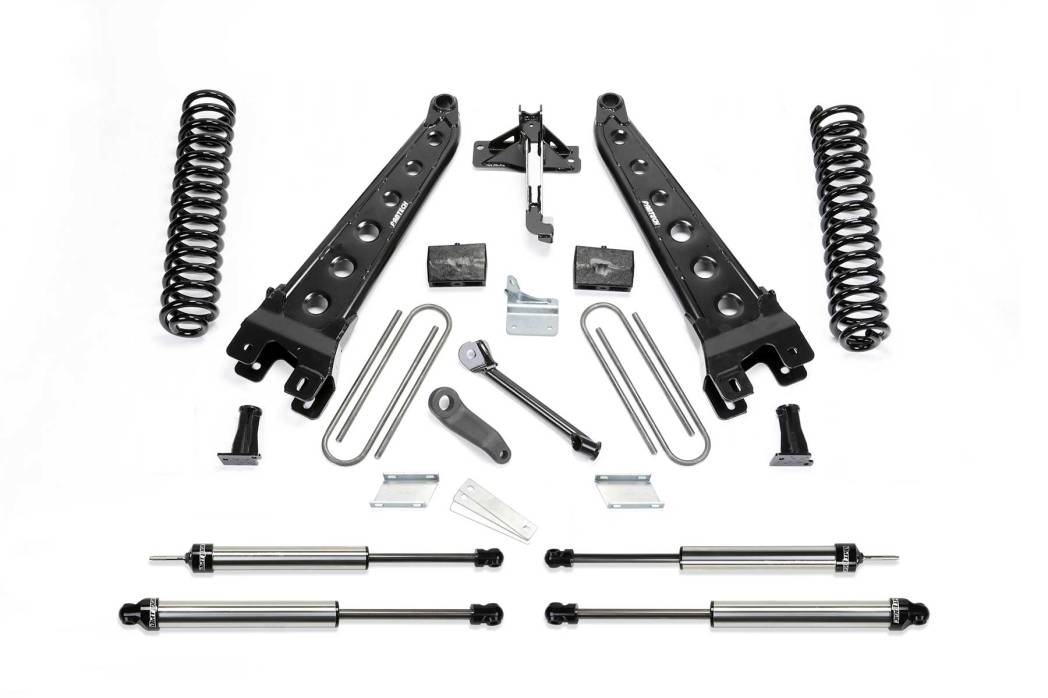

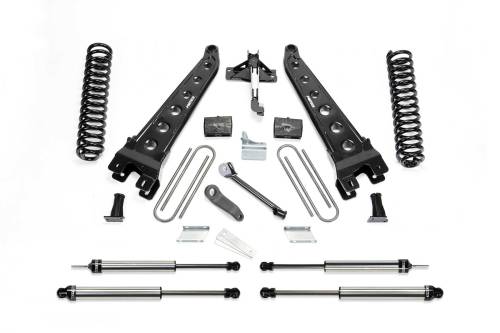

FEATURES
- Fabtech Replacement Radius Arms
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
Part numbers
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22207 | COIL BOX KIT |
1 | FTS22209 | COMPONENT BOX |
1 | FTS22211 | REAR BOX |
2 | FTS810962 | FRONT DIRT LOGIC 2.25 SHOCKS |
2 | FTS810052 | REAR DIRT LOGIC 2.25 SHOCKS |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Application List
2008-2016 Ford F250 Super Duty 4WD
2008-2016 Ford F350 Super Duty 4WD
2008-2016 Ford F350 Super Duty 4WD
Tires & Wheels
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Details
- K2211DL
- K2211DL
- 674866103344
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 249.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
