FTSK2212 | Fabtech 4 Inch 4 Link System With Coils and Performance Shocks(2008-2016 F250, F350 Super Duty 4WD)
2008-2016 Ford F250 Super Duty 4WD | 2008-2016 Ford F350 Super Duty 4WD
Description
2008-16 FORD F250/F350 4WD

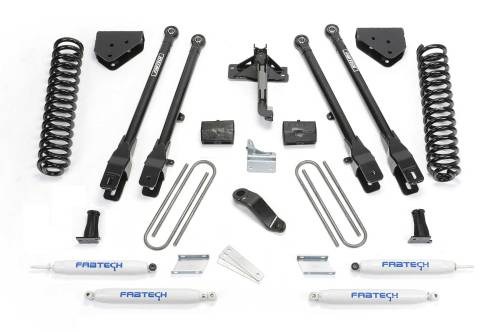

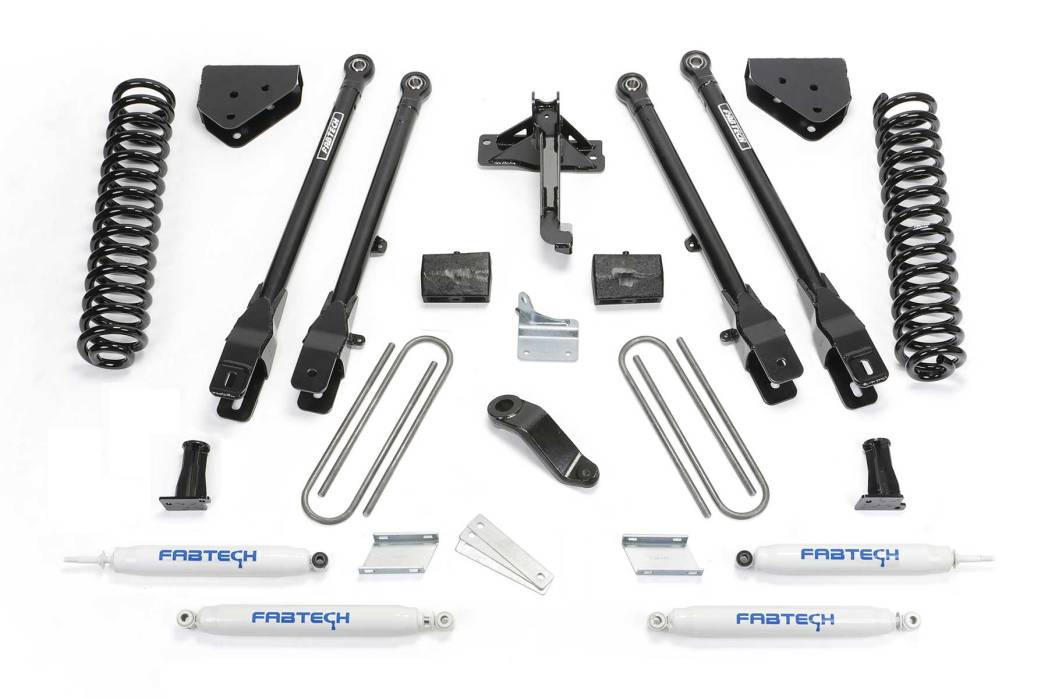

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.
FEATURES
- 2" OD Heavy Wall Links
- Fabtech Heavy Duty 5 Ton Joints®
- Fabtech Front Coil Springs
- Trac Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22207 | COIL BOX KIT |
1 | FTS22210 | COMPONENT BOX 1 |
1 | FTS22080BK | COMPONENT BOX 2 |
1 | FTS22211 | REAR BOX |
2 | FTS7236 | FRONT PERFORMANCE SHOCKS |
2 | FTS7266 | REAR PERFORMANCE SHOCKS |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Application List

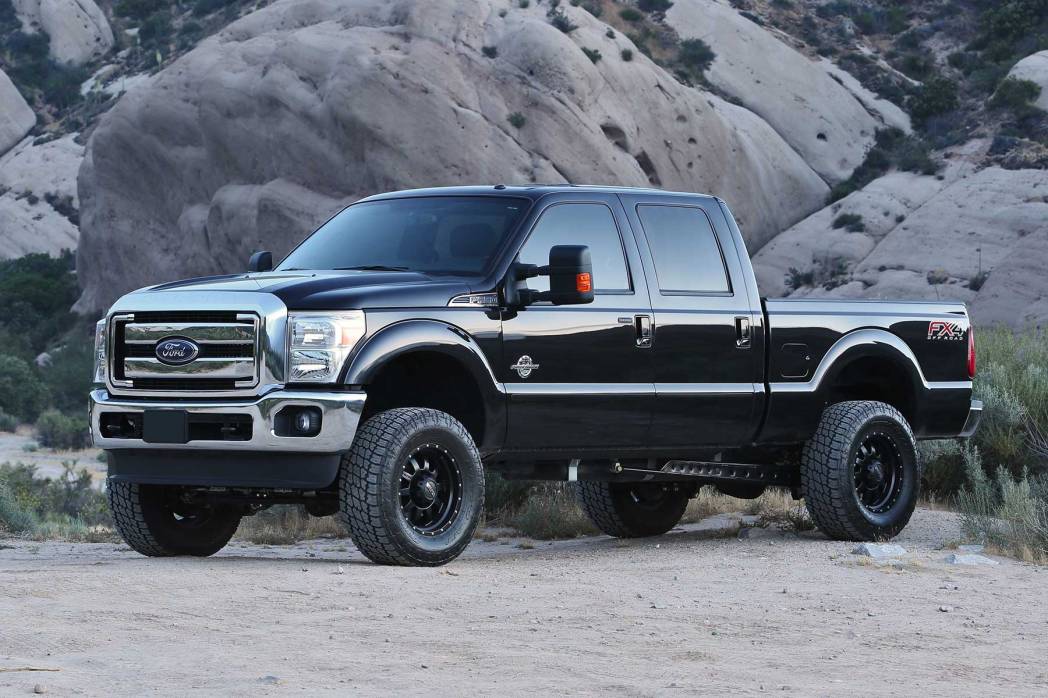

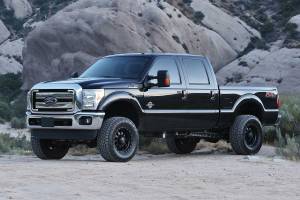

2008-2016 Ford F350 Super Duty 4WD
Tires & Wheels
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Details
- K2212
- K2212
- 674866103351
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 269.8 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
