FTSK2214DL | Fabtech 4 Inch Basic System With Dirt Logic Shocks (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2214DL
Pricing: $3,592.71
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2017-22 FORD F250/F350 4WD

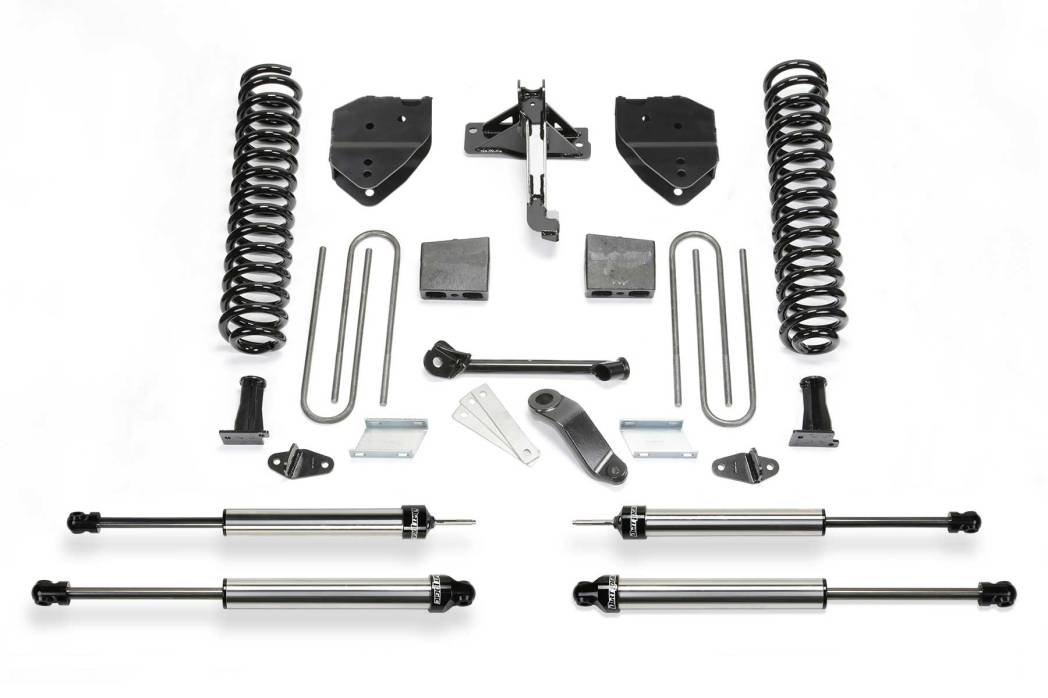

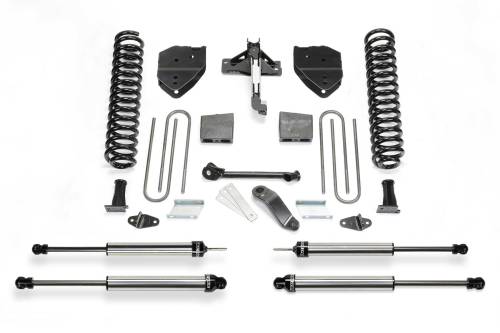

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block and U-bolt kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

FEATURES

  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22207 COIL BOX KIT
1 FTS22213 COMPONENT BOX
1 FTS22214 REAR BOX KIT
2 FTS810962 FRONT DIRT LOGIC 2.25 SHOCK
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

3. Non dually models only.
42. Will not fit gas motors

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 215.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
