FTSK2215DL | Fabtech 4 Inch Radius Arm System With Coils and DLSS Shocks (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2215DL
Pricing: $4,760.01
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2017-22 FORD F250/F350 4WD

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

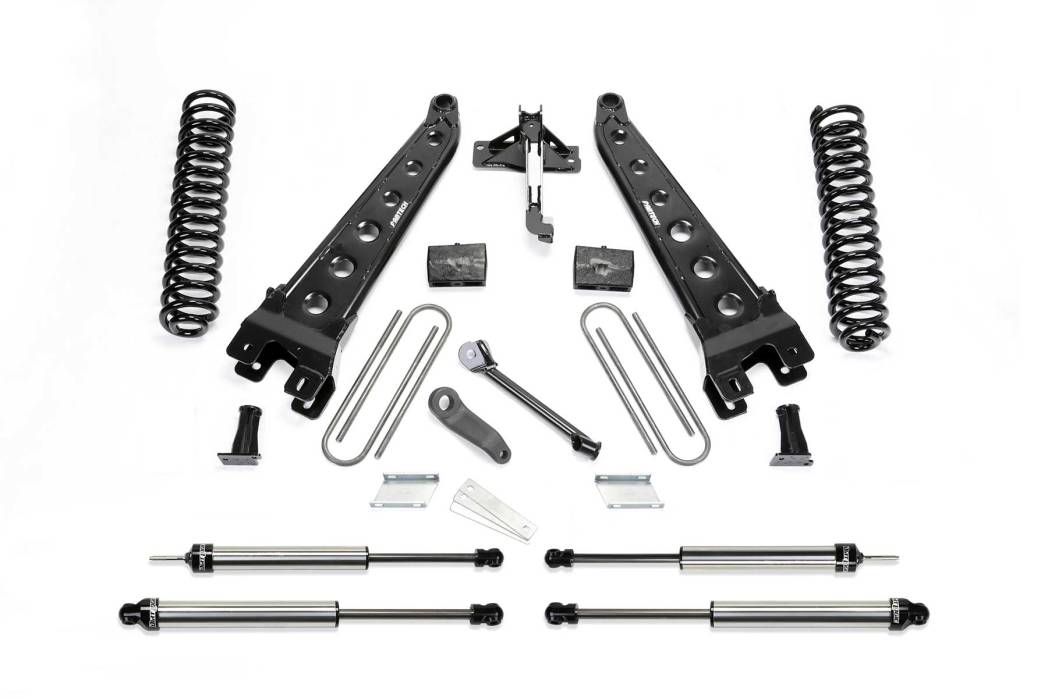

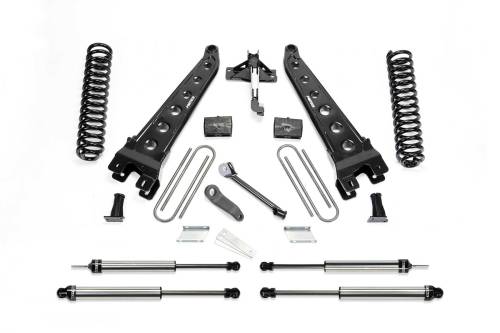

FEATURES

  • Fabtech Replacement Radius Arms
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22207 COIL BOX KIT
1 FTS22215 COMPONENT BOX
1 FTS22214 REAR BOX KIT
2 FTS810962 FRONT DIRT LOGIC 2.25 SHOCK
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

3. Non dually models only.
42. Will not fit gas motors.

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 248.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
