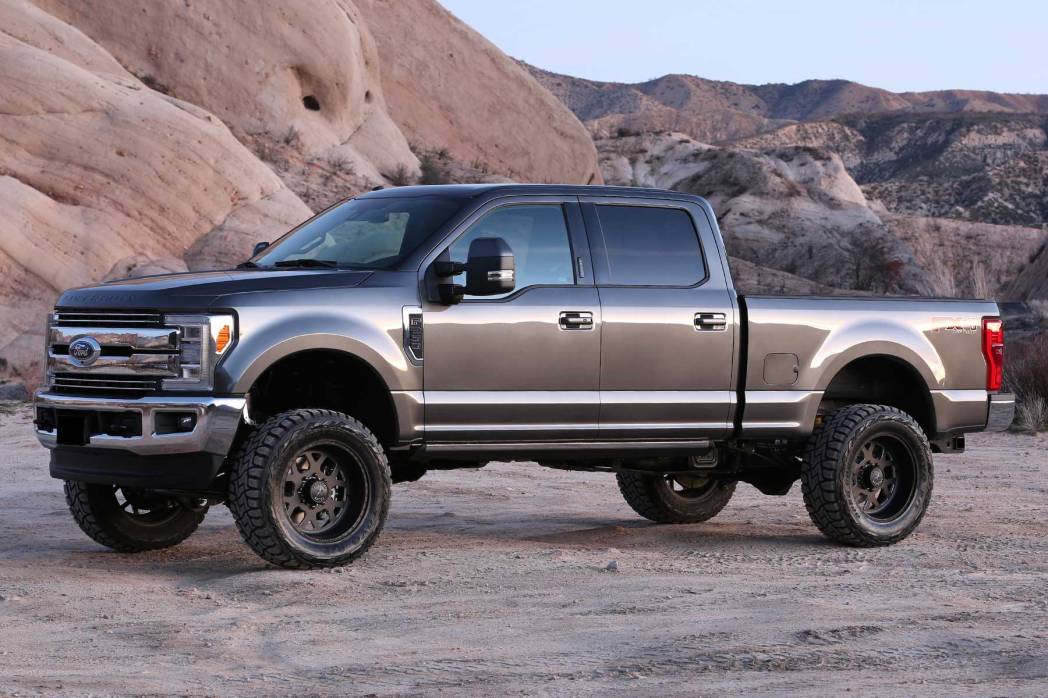

FTSK2216M | Fabtech 4 Inch 4 Link System With Coils and Stealth Shocks (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2216M
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,262.52
Qty:

Description

2017-22 FORD F250/F350 4WD

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.

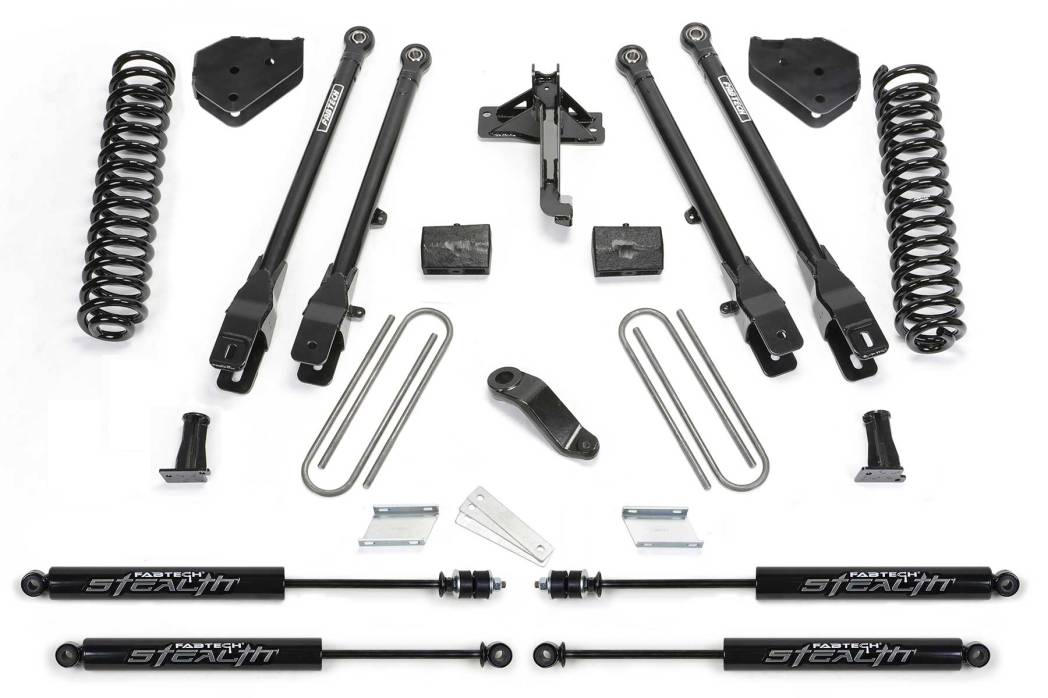

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22207 COIL BOX KIT
1 FTS22221 COMPONENT BOX 1
1 FTS22217 COMPONENT BOX 2
1 FTS22214 REAR BOX KIT
2 FTS6236 FRONT STEALTH SHOCK
2 FTS6063 REAR STEALTH SHOCK

FOOTNOTES

3. NON DUALLY MODELS ONLY.
42. WILL NOT FIT GAS MOTOR.

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 270.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
