FTSK2217M | Fabtech 6 Inch Basic System With Stealth Shocks (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2217M
Pricing: $2,259.19
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2017-22 FORD F250/F350 4WD

This system utilizes the factory Radius Arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech Performance Coil Springs in the front and a Block and U-bolt kit in the rear. Also included are a Trac Bar relocation bracket, Pitman Arm and Sway Bar brackets.

FEATURES

  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

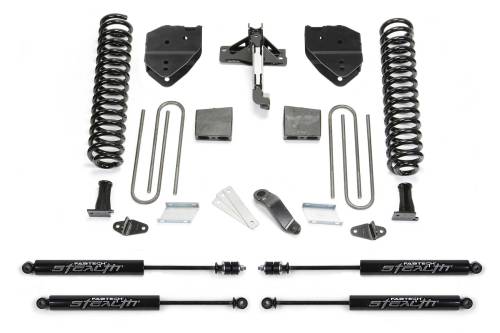

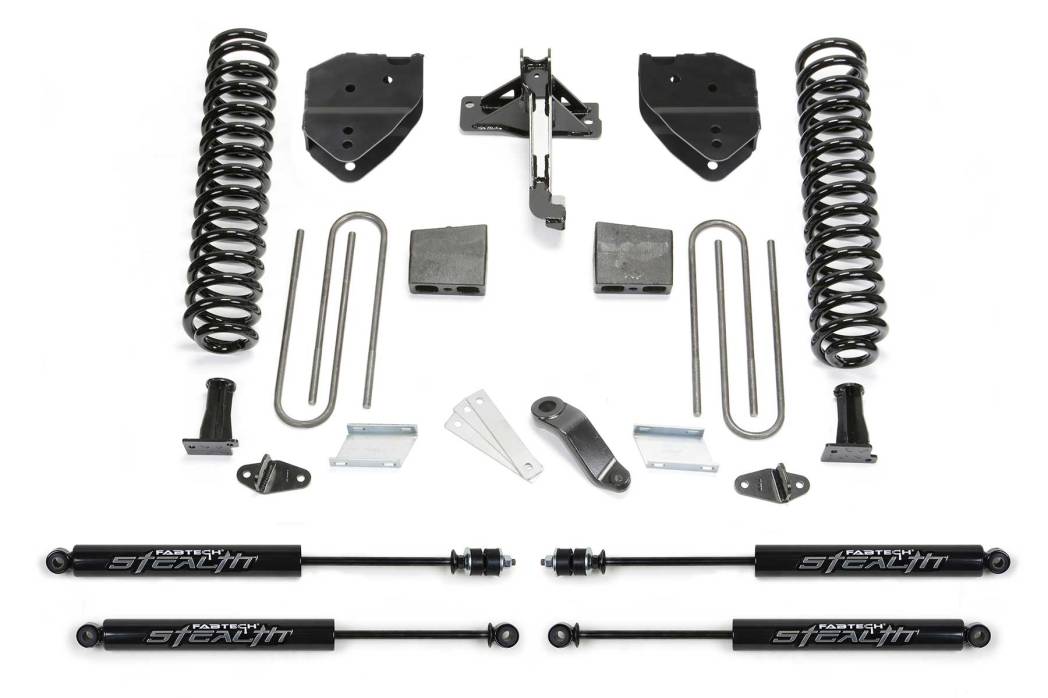

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22024BK COIL BOX KIT
1 FTS22218 COMPONENT BOX
1 FTS22219 REAR BLOCK KIT
2 FTS6188 FRONT STEALTH SHOCKS
2 FTS6063 REAR STEALTH SHOCKS

FOOTNOTES

3. Non dually models only.
42. Will not fit gas motors.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 226.7 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
