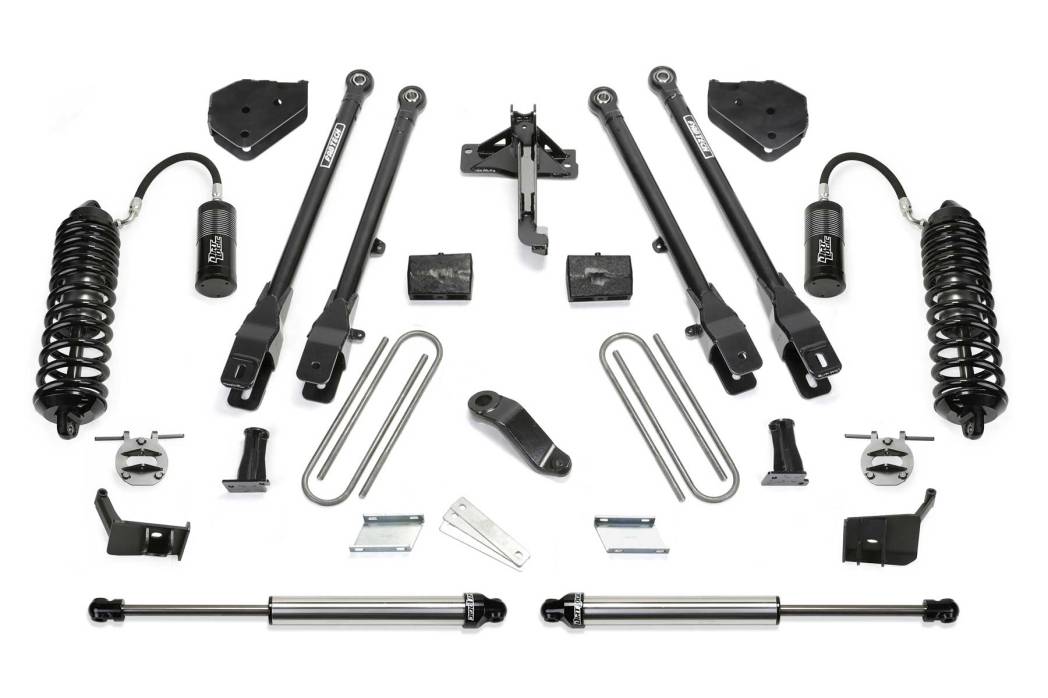

FTSK2228DL | Fabtech 4 Inch 4 Link System With 4.0 and 2.25 (2017-2022 F250, F350 Super Duty 4WD)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD

K2228DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $8,637.47
Qty:

Description

2017-22 FORD F250/F350 4WD

Fabtech’s 4” 4 Link Conversion System for the Ford F250/F350 is designed to provide maximum suspension performance for both on and offroad use. The system replaces the factory Radius Arm suspension with heavy duty 4 Link components for increased strength and functionality. The system will provide near zero caster change throughout the travel range which benefits on road driving. When offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

The front suspension receives the finest shock upgrade on the market with the Dirt Logic 4.0 Coilover conversion. It will provide outstanding damping capacity offroad with a quality on road ride. This Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The Dirt Logic is constructed with a stainless steel body for maximum corrosion resistance. It comes with a giant 4" diameter aluminum remote reservoir that mounts horizontally above the Coilover to allow for full compression travel with oversized tires.

The rear suspension receives a 5" lift block, extended bump stop brackets and Dirt Logic 2.25 shocks for a balanced ride quality.

This 4 Link system with the Dirt Logic 4.0 Coilovers is the pinnacle of all Super Duty suspension systems for owners that demand the best.

System includes a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component has been designed with specific features and benefits that create this quality suspension system. For a greater understanding of each these components, please see below.

FEATURES

  • 2″ OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Track Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS22221 COMPONENT BOX 1
1 FTS22217 COMPONENT BOX 2
1 FTS22309 REAR BLOCK KIT
1 FTS835242D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
1 FTS835242P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

3. Non dually models only.
42. Willnot fit gas motors.
163. Vehicles equipped with 2 piece driveshaft require FTS419.

Application List

2017-2022 Ford F250 Super Duty 4WD
2017-2022 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 360.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
