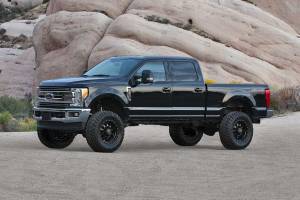

FTSK2243DL | Fabtech 6 Inch Radius Arm System With 2.5 and 2.25 (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2243DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $6,699.24
Qty:

Description

6″ RADIUS ARM SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K2243DL

2017-22 FORD F250/F350 4WD

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift comes from Dirt Logic 2.5 Resi Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

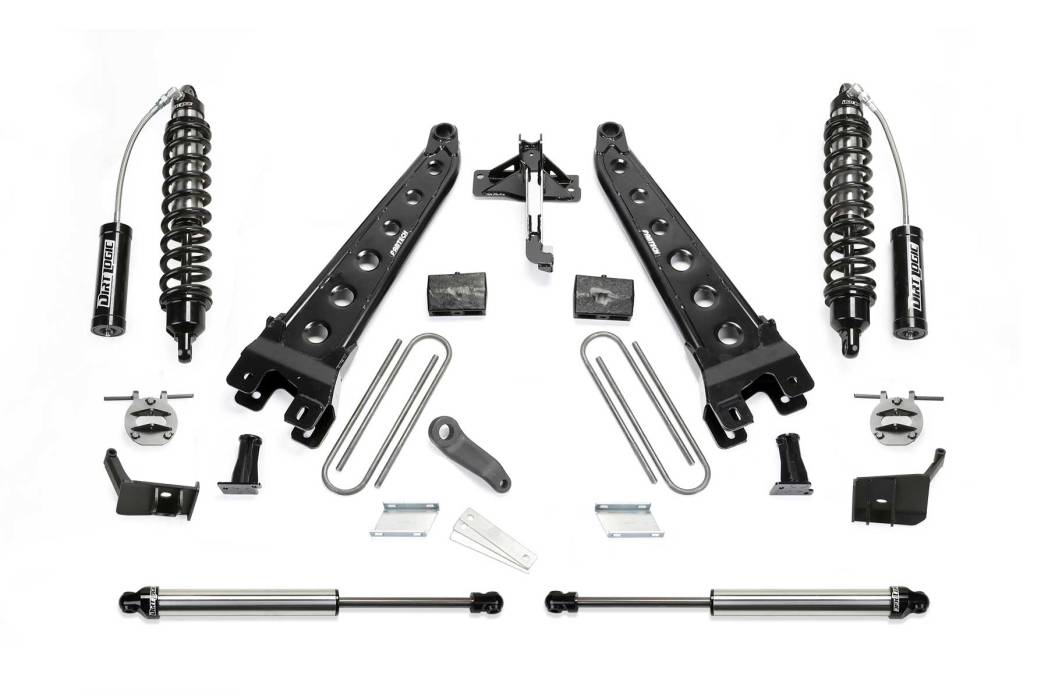

FEATURES

  • Fabtech Replacement Radius Arms
  • Front Dirt Logic 2.5 Resi Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22220 COMPONENT BOX
1 FTS22219 REAR BLOCK KIT
1 FTS22248 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

3. Non dually models only.
42. Will not fit gas motors.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 250.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
