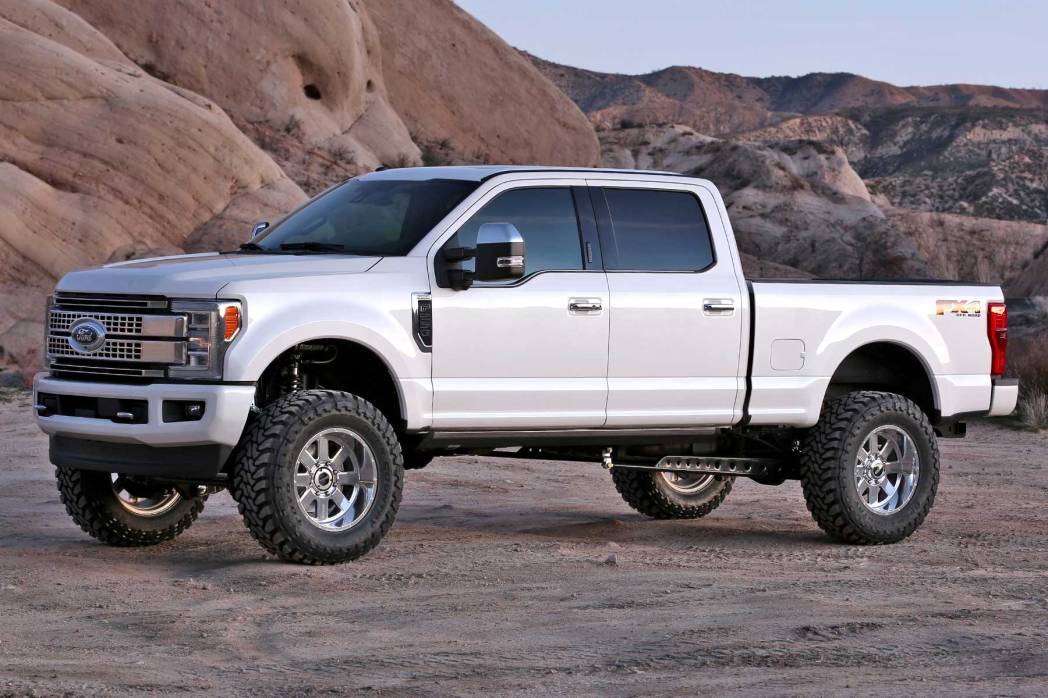

FTSK2244DL | Fabtech 6 Inch 4 Link System With 2.5 and 2.25 (2017-2022 F250, F350 Super Duty 4WD Diesel)

2017-2022 Ford F250 Super Duty 4WD | 2017-2022 Ford F350 Super Duty 4WD | Diesel

K2244DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $7,535.26
Qty:

Description

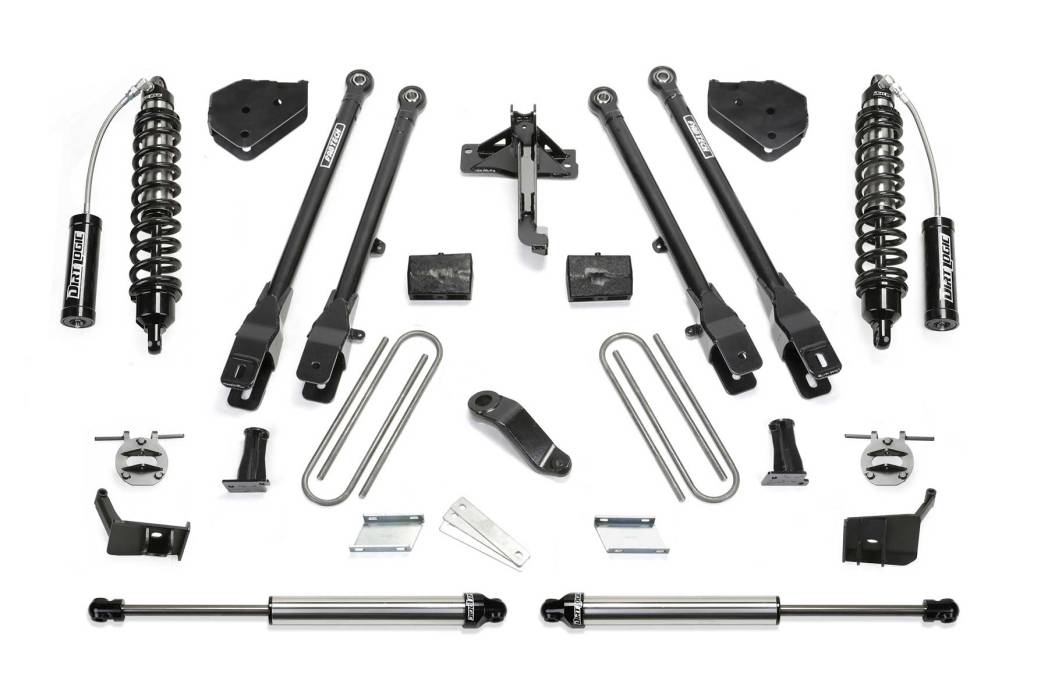

6″ 4 LINK SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K2244DL

2017-22 FORD F250/F350 4WD

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our Front Dirt Logic 2.5 Resi Coilovers. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Front Dirt Logic 2.5 Resi Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22221 COMPONENT BOX 1
1 FTS22222 COMPONENT BOX 2
1 FTS22219 REAR BLOCK KIT
1 FTS22248 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

3. Non dually models only.
42. Will not fit gas motors.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.

Application List

2017-2022 Ford F250 Super Duty 4WD Diesel
2017-2022 Ford F350 Super Duty 4WD Diesel

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 288.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
