FTSK2246DL | Fabtech 2 Inch Uniball UCA System With Dirt Logic 2.5 Resi and 2.25 (2015-2020 F150 Pickup 4WD)

2015-2020 Ford F150 Pickup 4wd

K2246DL
Pricing: $4,936.67
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K2246DL

2015-20 FORD F150 4WD

Obtain increased wheel travel with a mild lift height with this heavy duty Upper Control Arm systems. The tubular Upper Control Arms feature 1.25" OD, .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

The replacement UCA’s have been designed to work in conjunction with Fabtech’s Dirt Logic 2.5 Coilover shocks providing increased wheel travel for a complete front suspension system upgrade. The vehicle’s offroad suspension performance will be greatly increased due to the extensive ride tuning of the Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.

FEATURES

  • Built with same materials as found on Trophy Trucks
  • .120″ Wall 4130 Chromoly Tubing. 1.50″ OD
  • .250″ wall DOM Bushing Barrels
  • PTFE lined 1″ ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

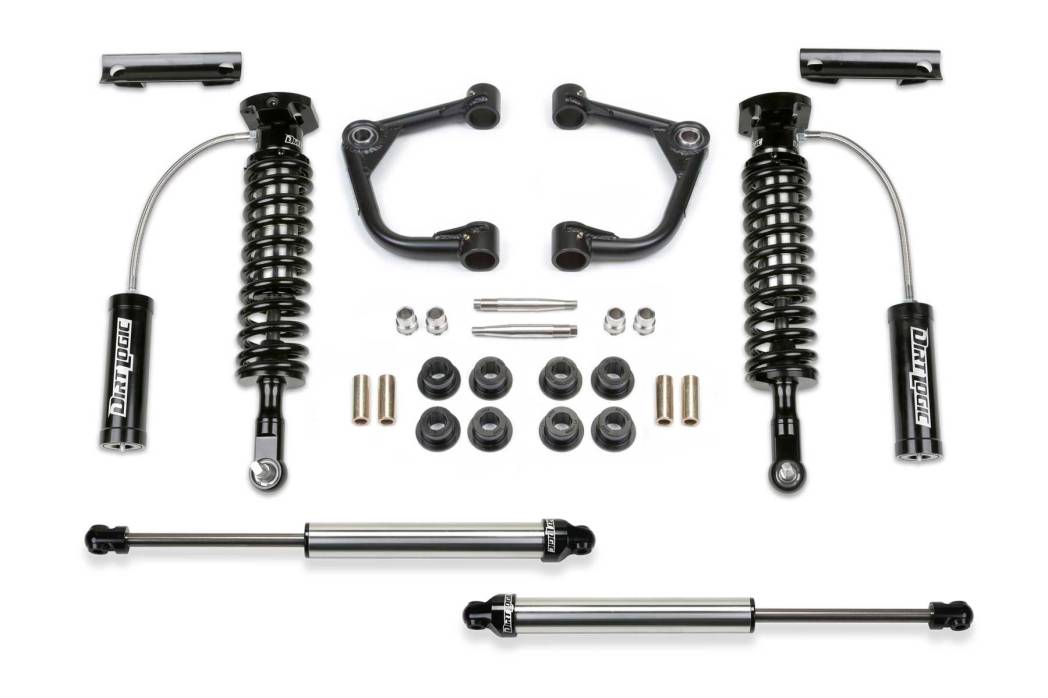

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22182 UNIBALL UPPER CONTROL ARMS
1 FTS22253 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS811332 REAR DIRT LOGIC 2.25 SHOCKS

Application List

2015-2020 Ford F150 Pickup 4wd

Tires & Wheels

Tire Size – 295/70R17 tire w/17×8 wheels w/4 1/2” BS w/minor trimming
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 111.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
