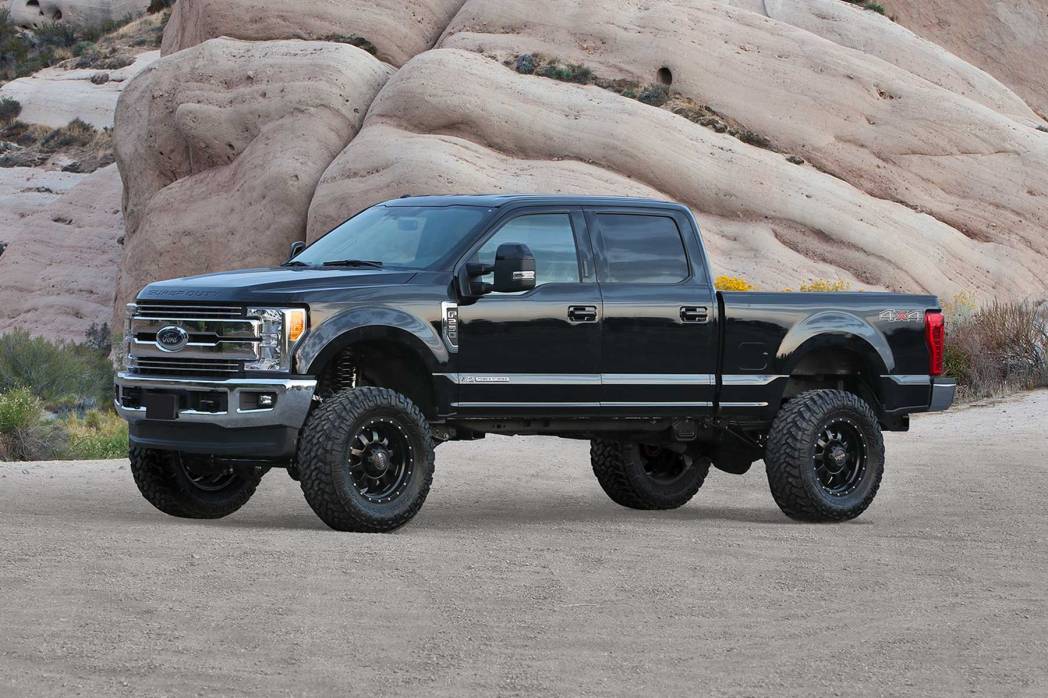

FTSK2256DL | Fabtech 6 Inch Radius Arm System With Coils and DLSS Shocks (2017-2021 F250, F350 Super Duty 4WD Gas)

2017-2021 Ford F250 Super Duty 4WD | 2017-2021 Ford F350 Super Duty 4WD | Gas

K2256DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,760.01
Qty:

Description

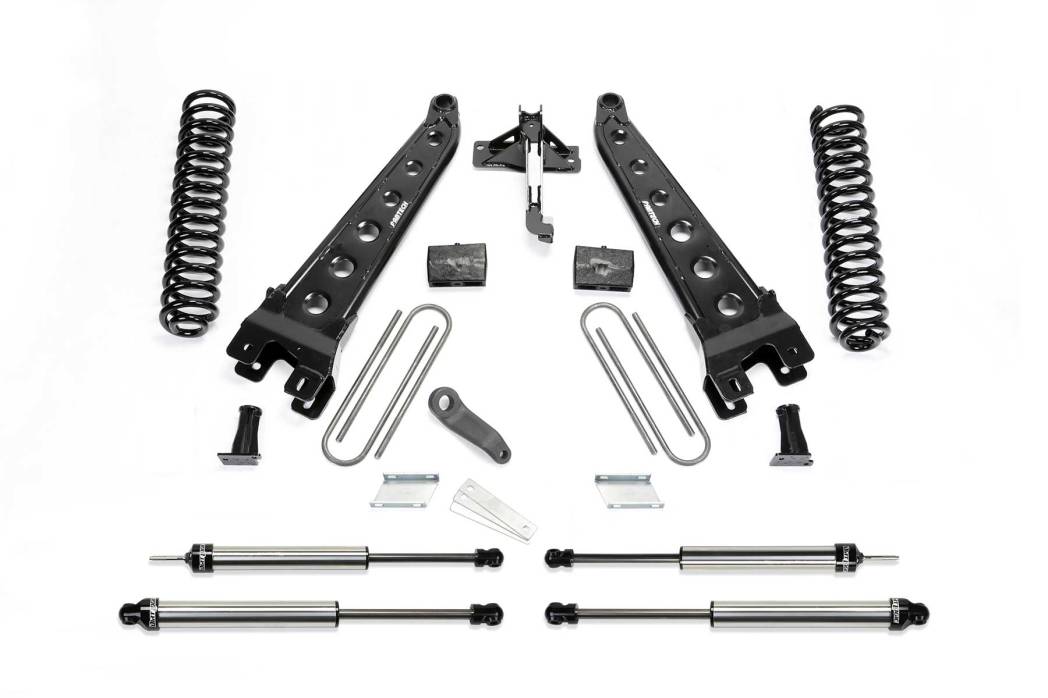

6″ RADIUS ARM SYSTEM W/ DIRT LOGIC 2.25 SHOCKS – K2256DL

2017-21 FORD F250/F350 4WD [GAS]

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front spring lift includes replacement Coil Springs. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift includes a block & u-bolt kit.

FEATURES

  • Fabtech Replacement Radius Arms
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22250 COIL BOX KIT
1 FTS22220 COMPONENT BOX
1 FTS22219 REAR BLOCK KIT
2 FTS810382 FRONT DIRT LOGIC 2.25 SHOCKS
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

3. Non dually models only.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
171. Will not fit diesel motors.
173. Front driveshaft modification is required or order replacement driveshaft (FTS92036).
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.

Application List

2017-2021 Ford F250 Super Duty 4WD Gas
2017-2021 Ford F350 Super Duty 4WD Gas

Tires & Wheels

Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 274.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
