FTSK2257 | Fabtech 6 Inch 4 Link System With Coils and Performance Shocks (2017-2021 F250, F350 Super Duty 4WD Gas)

2017-2021 Ford F250 Super Duty 4WD | 2017-2021 Ford F350 Super Duty 4WD | Gas

K2257
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $4,030.17
Qty:

Description

6″ 4 LINK SYSTEM W/ PERFORMANCE SHOCKS – K2257

2017-21 FORD F250/F350 4WD [GAS]

At the top of our Super Duty line is our famous 4 Link System that provides unsurpassed articulation and wheel travel. Large 2" OD heavy wall links feature race style 1" Uniballs for superior strength. Thick 1/4" steel brackets secure the 4 Links to the frame without cutting or welding. This 4 Link system includes our replacement Coil Springs. The system also includes Billet Sway bar links, Trac Bar relocation bracket, Pitman Arm and more. Rear lift is a block & u-bolt kit.

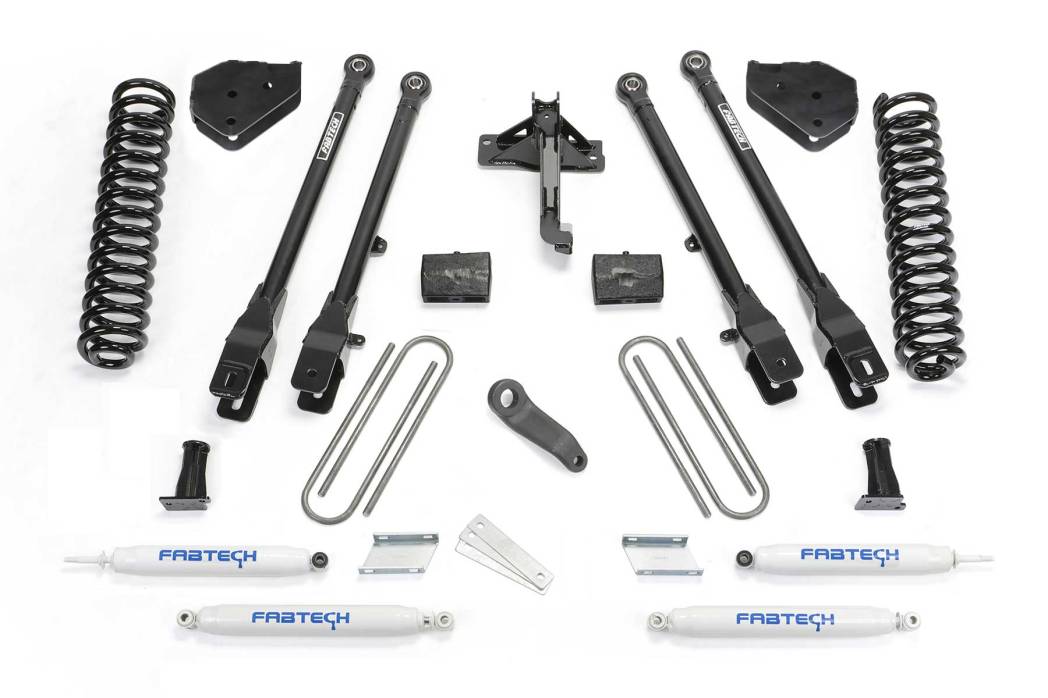

FEATURES

  • 2" OD Heavy Wall Links
  • Fabtech Heavy Duty 5 Ton Joints®
  • Fabtech Front Coil Springs
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22250 COIL BOX KIT
1 FTS22221 COMPONENT BOX 1
1 FTS22222 COMPONENT BOX 2
1 FTS22219 REAR BLOCK KIT
2 FTS7188 FRONT PERFORMANCE SHOCKS
2 FTS7266 REAR PERFORMANCE SHOCKS

FOOTNOTES

3. Non dually models only.
163. Vehicles equipped with 2 piece driveshaft require FTS419.
171. Will not fit diesel motors.
173. Front driveshaft modification is required or order replacement driveshaft (FTS92036).
175. Vehicles w/ factory rear sway bar must order extended sway bar link kit part number FTS22276.

Application List

2017-2021 Ford F250 Super Duty 4WD Gas
2017-2021 Ford F350 Super Duty 4WD Gas

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 296.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
