This system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25" lift block and extended length u-bolts.

Rear shock options include Fabtech’s Performance twin tube shocks.

This high quality system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.

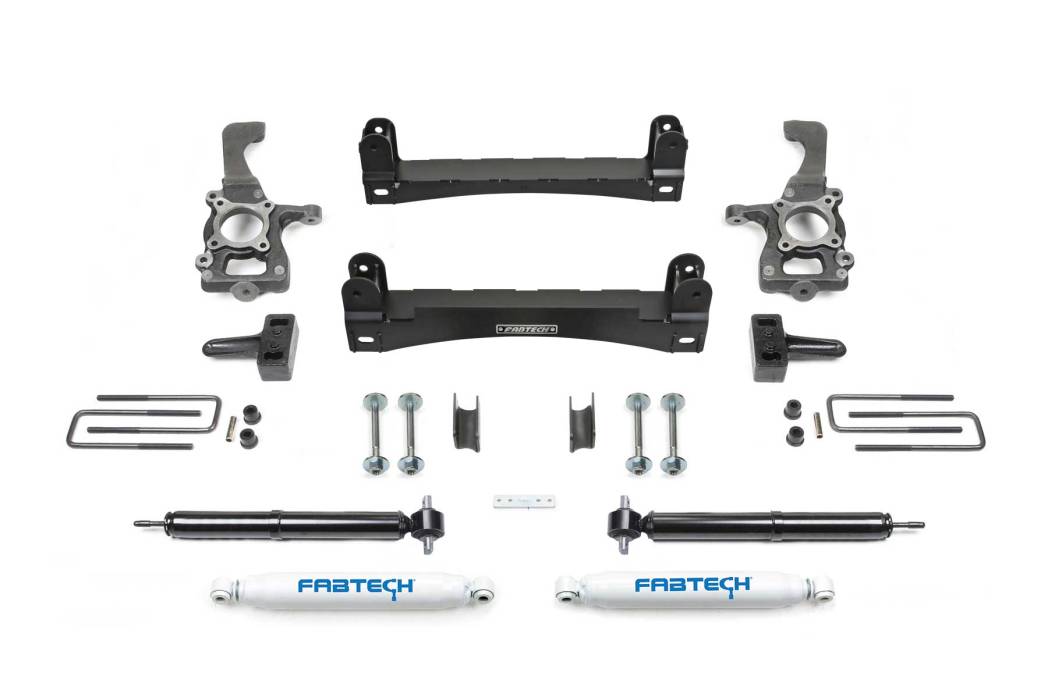

FEATURES

• Heavy Duty 1/4" Thick, High Arched Crossmember
• Ductile Iron Steering Knuckles
• Rear Block & U-bolt Kit

• CROSSMEMBERS 1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
• STEERING KNUCKLES Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds.
• BRAKE LINE BRACKETS Re-positions the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
• SWAY BAR BRACKETS 1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
• REAR LIFT BLOCKS 2.25" Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity.
• REAR U-BOLTS U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
• PERFORMANCE REAR SHOCKS Extended length twin tube shocks provide a good highway ride with the ability to tackle offroad.

PART NUMBERS

FOOTNOTES

14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.
