FTSK2258M | Fabtech 4 Inch Basic System With Rear Stealth Shocks (2015-2023 F150 Pickup 2WD)

2015-2023 Ford F150 Pickup 2WD

K2258M
Pricing: $2,823.66
Qty:
Free Ground Shipping | Exclusions Apply*

Description

4″ BASIC SYSTEM W/REAR STEALTH SHOCKS – K2258M

2015-23 FORD F150 2WD

This system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper Ford electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with a 2.25" lift block and extended length u-bolts.

Rear shock options include Fabtechrsquo;s Stealth monotube shocks.

This high quality system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.

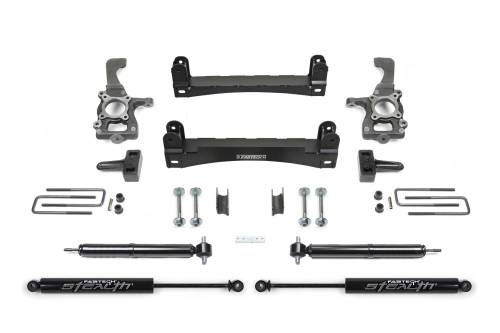

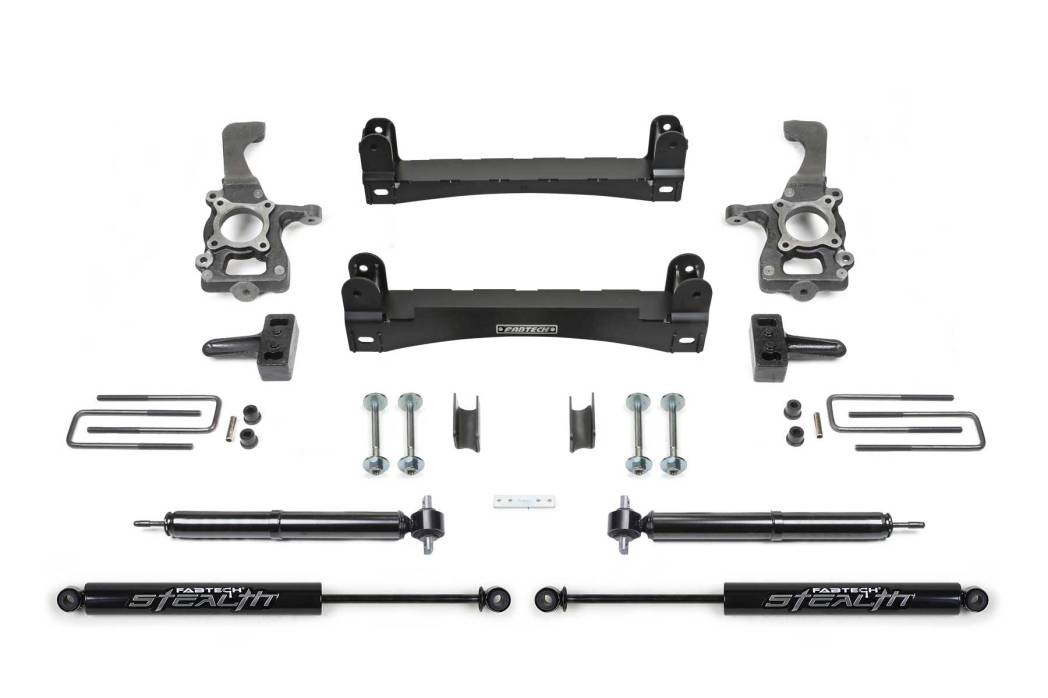

FEATURES

  • Heavy Duty 1/4" Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Rear Block & U-bolt Kit



  • CROSSMEMBERS 1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.
  • STEERING KNUCKLES Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the Ford ESC for proper functionality at all speeds.
  • BRAKE LINE BRACKETS Re-positions the factory Ford brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.
  • SWAY BAR BRACKETS 1/4" thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.
  • REAR LIFT BLOCKS 2.25" Tall rear lift blocks replace the factory blocks without changing the ride quality or load carrying capacity.
  • REAR U-BOLTS U-Bolts that retain the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.
  • STEALTH REAR SHOCKS Extended length monotube shocks have a Nitrocarb piston rod for corrosion resistance and resist rock chipping. Great highway ride with offroad damping capacity.

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22258 COMPONENT BOX 1
1 FTS22259 COMPONENT BOX 2
2 FTS6333 REAR STEALTH SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
20. Does not fit Standard Cab.
123. Will not fit Raptor models.

Application List

2015-2023 Ford F150 Pickup 2WD

Tires & Wheels

Tire Size – 33/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 295/70R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 33/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 295/60R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 225.2 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
