FTSK2260DL | Fabtech 2 Inch Uniball UCA System With Dirt Logic 2.5 and 2.25 (2015-2023 F150 Pickup 2WD)

2015-2023 Ford F150 Pickup 2WD

K2260DL
Pricing: $4,315.82
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2″ UNIBALL UCA SYSTEM W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K2260DL

2015-23 FORD F150 2WD

Obtain increased wheel travel and mild lift height with this heavy duty Upper Control Arm system. The high quality tubular Upper Control Arms feature 1.25" OD. .120" wall thick chromoly tube construction with 1" diameter Stainless Steel Uniballs that attach to the factory spindle without drilling.

These heavy duty UCA’s have been designed to work in conjunction with Fabtech’s legendary Dirt Logic 2.5 Coilover shocks for a complete front suspension system upgrade. The F150’s offroad suspension performance will be greatly enhanced due to the extensive ride tuning of the stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25’s.

This outstanding system does not require drilling or cutting for installation and comes Fabtech’s 5/60 Powertrain warranty.

FEATURES

  • Built with same materials as found on Trophy Trucks
  • .120" Wall 4130 Chromoly Tubing. 1.50" OD
  • .250*quot; wall DOM Bushing Barrels
  • PTFE lined 1" ID Stainless Steel American Uniball
  • 17-4 Stainless Misalignments
  • Heat Treated 17-4 Stainless Steel Tapered Uniball Pins

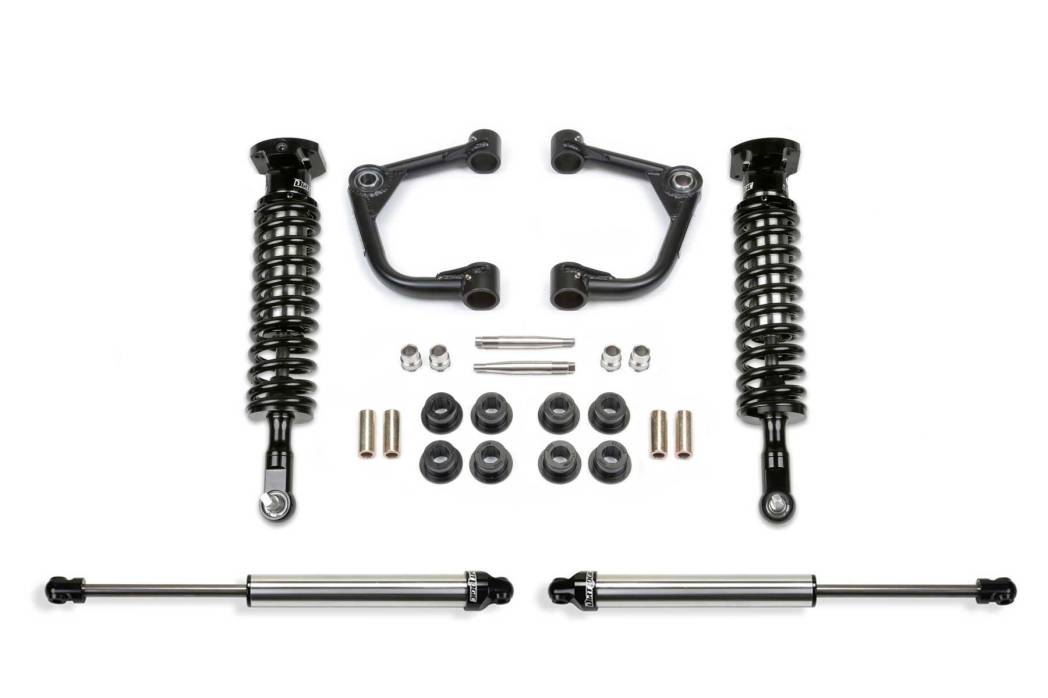

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22182 UNIBALL UPPER CONTROL ARMS
1 FTS22269 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS811382 REAR DIRT LOGIC 2.25 SHOCKS

Application List

2015-2023 Ford F150 Pickup 2WD

Tires & Wheels

Tire Size – 295/70R17 tire w/17×8 wheels w/4 1/2” BS w/minor trimming
Tire Size – 275/65R18 Wheel Size – 18×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 285/55R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 98.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
