FTSK2263 | Fabtech 4 Inch System (2017-2020 Ford Raptor)

2017-2020 Ford Raptor 4WD

K2263
Pricing: $2,810.57
Qty:
Free Ground Shipping | Exclusions Apply*

Description

2017-20 FORD F150 RAPTOR 4WD

Fabtech’s 4" System for the 2017-19 Ford F150 Raptor provides increased suspension height which allows the use of 37" tall tires and retains the factory SVT control arms and Fox Shox.

This 4″ system features heavy duty ductile iron steering knuckles designed to handle 37" tall tires with the vehicle’s ESC (electronic stability control) and Traction Control. Typically 37" tires will cause steering and brake issues on the factory Ford steering knuckles. Fabtech knuckles are designed for the oversized tires and will provide years of trouble free service.

The Raptor SVT control arms are relocated with 1/4" thick steel Crossmembers retaining the travel features of the vehicle for offroad use. The factory Fox Shox are also retained with super stout front and rear shock extensions. To keep the front CV angles proper with the new ride height the front differential is relocated and comes with a 1/4" thick steel skid plate for protection.

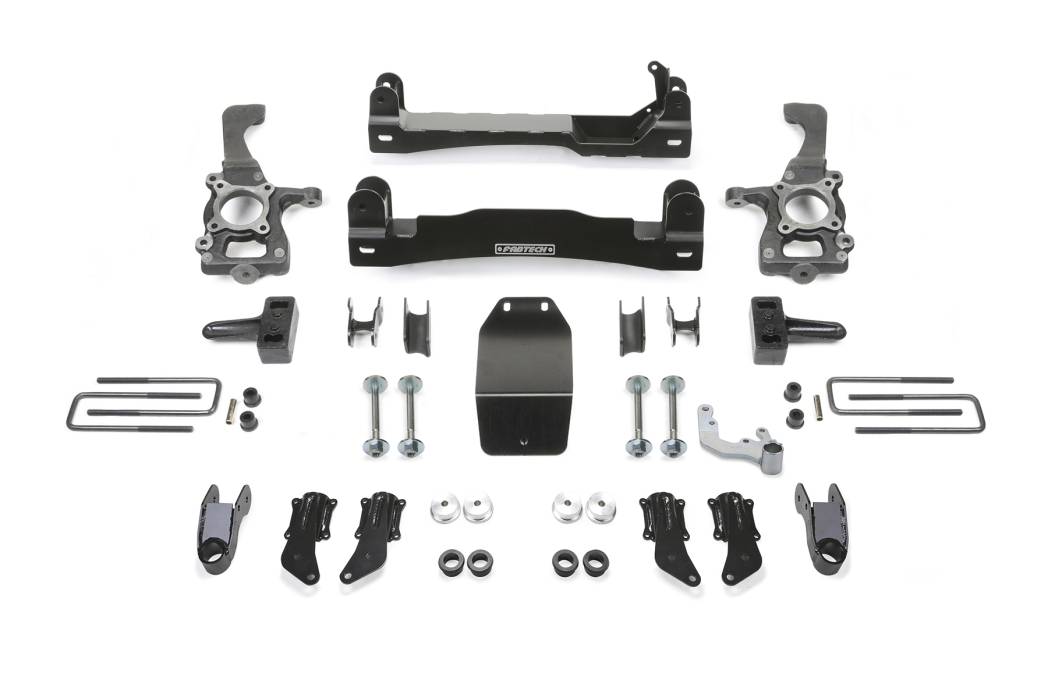

FEATURES

  • Heavy Duty 1/4″ Thick, High Arched Crossmember
  • Ductile Iron Steering Knuckles
  • Heavy Duty 1/4″ Thick Skid Plate
  • Front & Rear Shock Extensions
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22267 COMPONENT BOX 1
1 FTS22268 COMPONENT BOX 2

FOOTNOTES

14. Cannot use OEM wheel and tires.
55. Must use 18″ wheels or larger.

Application List

2017-2020 Ford Raptor 4WD

Tires & Wheels

Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 5in BS w/minor trimming
Tire Size – 37/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 224.8 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping | Exclusions Apply*
