FTSK2270DL | Fabtech 6 Inch Radius Arm System With 4.0 R/R and 2.25 (2011-2016 F250 Super Duty 4WD)
2011-2016 Ford F250 Super Duty 4WD
K2270DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing:
$7,664.03
Description

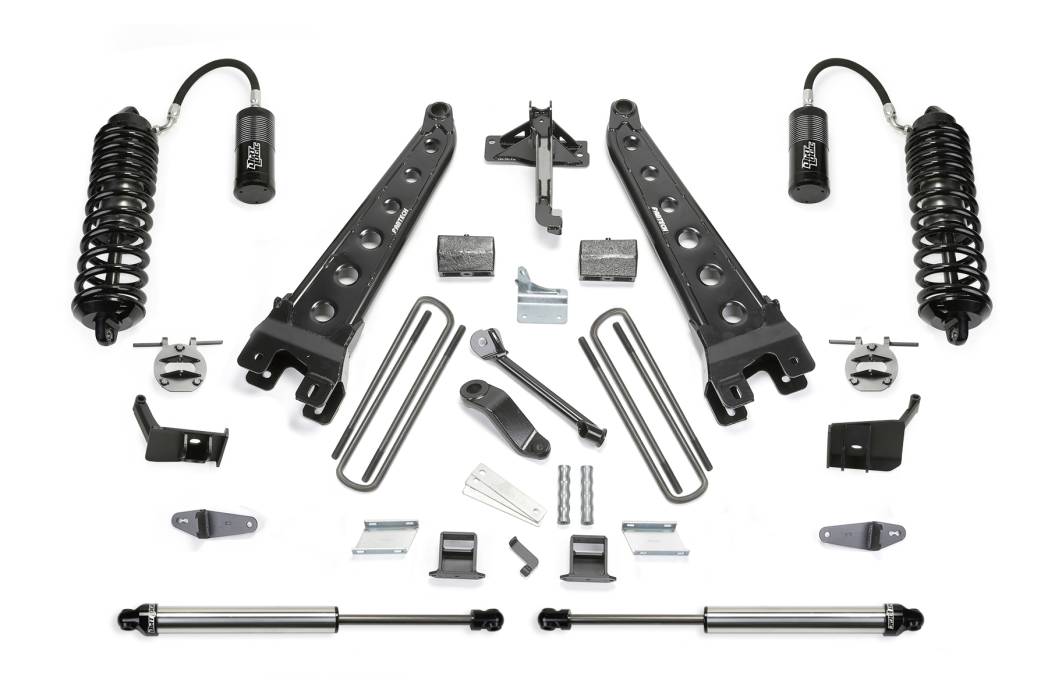

6″ RADIUS ARM SYSTEM W/DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K2270DL
2011-16 FORD F250 4WD
Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Resi Coilovers. Completing this system is a Track Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is a block & u-bolt kit.
FEATURES
- Fabtech Replacement Radius Arms
- Front Dirt Logic 4.0 Resi Coilovers
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22139 | COMPONENT BOX 1 |
1 | FTS22101 | REAR BLOCK KIT |
1 | FTS835234D | FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER) |
1 | FTS835234P | FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER) |
2 | FTS810052 | REAR DIRT LOGIC 2.25 SHOCK |
FOOTNOTES
27. Front drive shaft modification may be required to clear exhaust on gas motors.
Application List
2011-2016 Ford F250 Super Duty 4WD
Tires & Wheels
Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×10 w/ 5in BS w/minor trimming
Details
- K2270DL
- K2270DL
- 674866105034
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 344.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
