FTSK2276DL | Fabtech 8 Inch 4 Link System With 4.0 R/R and 2.25 (2011-2016 F250 Super Duty 4WD without Factory Overload)

2011-2016 Ford F250 Super Duty 4WD | Without Factory Overloads

K2276DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $8,675.41
Qty:

Description

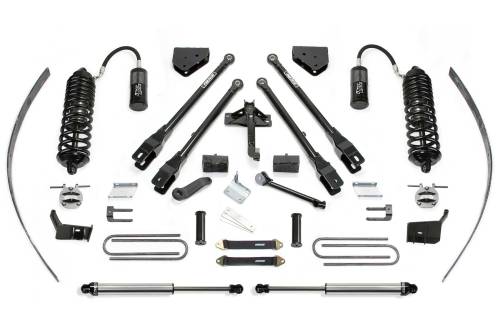

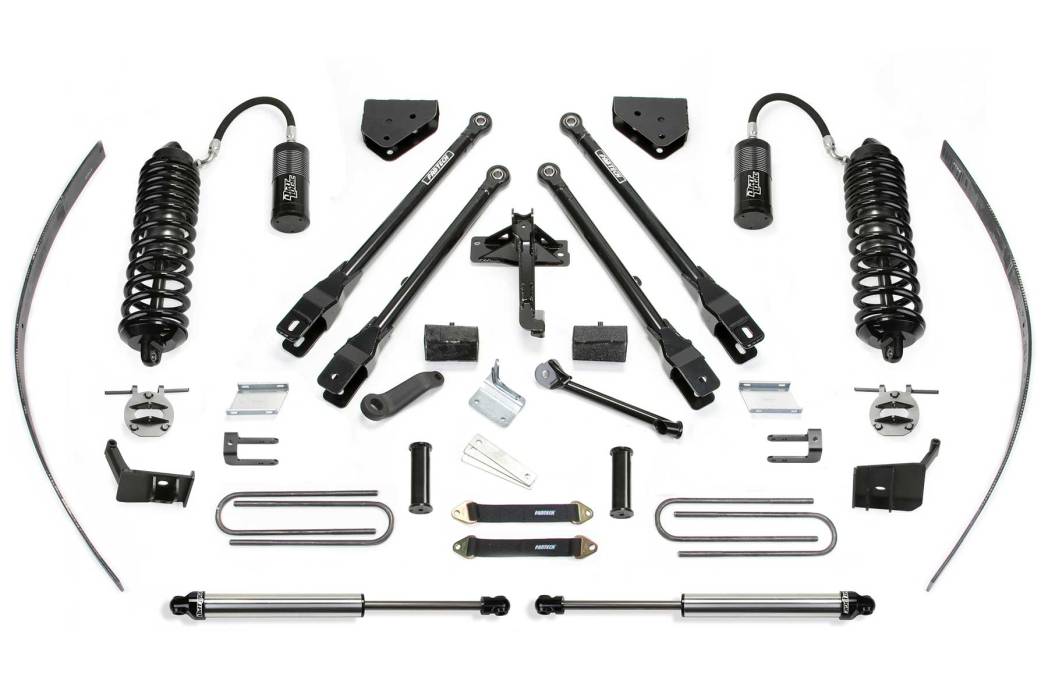

8″ 4 LINK SYSTEM W/ FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K2276DL

2011-16 FORD F250 4WD

Fabtech’s 4 Link Conversion system for the Ford Super Duty has been designed to provide improved on road performance with the ability to tackle the most rugged offroad terrain. This high end system is a bolt on replacement to the factory Radius Arm suspension and comes with everything needed to convert to a 4 Link front suspension.

The system will provide less caster change throughout the travel range which benefits on road driving. Offroad the 4 Link system will provide more articulation than a Radius Arm for increased terrain traversing at all speeds.

Included in this system is the massive Dirt Logic 4.0 Coilover Conversion for outstanding damping capacity offroad with a quality on road ride. The Coilover bolts in place of the factory coil spring without removal of the coil spring bucket. The giant 4" diameter aluminum remote reservoir mounts horizontally above the Coilover to allow for full compression travel with oversized tires. The Dirt Logic 4.0 Coilover is the biggest and baddest on the market for the Ford Super Duty.

Fabtech’s 4 Link System has been proven in over 10 years of service in military applications. High quality components with properly designed suspension geometry is the pinnacle of Super Duty suspension systems. System includes a free 5 year 60,000 mile powertrain warranty.

Each Fabtech component is expertly built in house and has specific design features and benefits as listed below.

FEATURES

  • Fabtech Heavy Duty Link Arms
  • Front Dirt Logic 4.0 Resi Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Add-a-leaf Kit
  • Rear Block & U-bolt Kit

LINK ARMS & BRACKETS

2" OD Heavy wall link arms have 1/4" thick steel brackets on the axle side with adjustable alignment cams to dial in the caster for the new ride height. Fabtech’s legendary 5 Ton joints® are used on the frame pivot side for superior strength. The 5 Ton joints® have been proven in military use for over 10 years and come with a lifetime warranty against wearing out.

The 4 Link Arms attach to 1/4" thick steel frame brackets that integrate into the factory Radius Arm brackets for a solid mounting of the new suspension.

The geometry of the 4 Link arms and frame brackets has been designed to provide an improved highway ride due to reduced caster change and able to tackle rough offroad conditions better than a Radius Arm suspension.

DIRT LOGIC 4.0 CONVERSION

Simplistic super stout 1/4″ thick steel brackets utilize the factory coil bucket to bolt in the massive Dirt Logic 4.0 Coilover. A 4" diameter stainless steel body with 1.25" NitroSteel® piston rod provides maximum corrosion resistance and durability for the most aggressive driving conditions. coil springs handle the weight of the Super Duty while providing 2" of increased wheel travel over stock. The remote aluminum reservoir dissipates heat for consistent damping when driving over extreme terrain at high speed. The ultimate of all coilover shocks.

TRACK BAR BRACKET

1/4" thick steel bracketry repositions the factory track bar to center the axle under the vehicle with the increased lift height. Super stout box style bracket is designed to eliminate deflection when the track bar moves through its full cycle.

DROPPED PITMAN ARM

Forged steel construction with high strength material that exceeds the factory specifications. Designed specifically for the Ford Super Duty to work in conjunction with the factory drag link and Fabtech’s Track Bar bracket for proper steering functionality.

FRONT BUMP STOP BRACKETS

Heavy duty 1/4″ thick steel brackets extend the factory bump stop cushions down to eliminate over cycling of the suspension. The bracket’s semi boxed construction can handle the full impact compression of the massive Super Duty.

SWAY BAR BRACKETS

1/4″ thick steel drop brackets re-position the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

BRAKE LINE BRACKETS

Re-positions the factory brake lines down on the frame for the new travel range without having to open the brake system. Keeps factory fluid system intact.

STEERING STABILIZER BRACKETS

Retains the stock Ford heavy duty steering stabilizer with a 1/4″ thick steel bracket and support brace to help reduce tire shimmy.

DRIVESHAFT SHIM KIT

Allows for incremental rear driveline angle change at the carrier bearing on two piece driveshaft applications to eliminate vibration with the increased ride height.

REAR ADD-A-LEAF

A single leaf is inserted into the spring pack to provide an additional 1.5" of rear lift.

REAR LIFT BLOCKS

Cast iron 5" rear lift blocks provide additional lift without changing the ride quality of the factory rear suspension or load carrying capacity.

REAR SWAY BAR BRACKETS

Brackets reposition the sway bar end links down on the frame for the new ride height allowing for proper sway bar functionality without binding.

REAR U-BOLTS

U-Bolts designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

DIRT LOGIC 2.25 SHOCKS

Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22140 COMPONENT BOX 1
1 FTS22080BK COMPONENT BOX 2
1 FTS22104 REAR BOX KIT
1 FTS835236D FRONT DIRT LOGIC 4.0 RESI COILOVER [DRIVER]
1 FTS835236P FRONT DIRT LOGIC 4.0 RESI COILOVER [PASSENGER]
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

27. Front drive shaft modification may be required to clear exhaust on gas motor.

Application List

2011-2016 Ford F250 Super Duty 4WD Without Factory Overloads

Tires & Wheels

Tire Size – 355/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×10 w/ 4 1/2in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 408.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
