FTSK2287DL | Fabtech 6 Inch Radius Arm System With 4.0 R/R and 2.25 (2011-2016 F350 Super Duty 4WD )

2011-2016 Ford F350 Super Duty 4WD

K2287DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $7,664.03
Qty:

Description

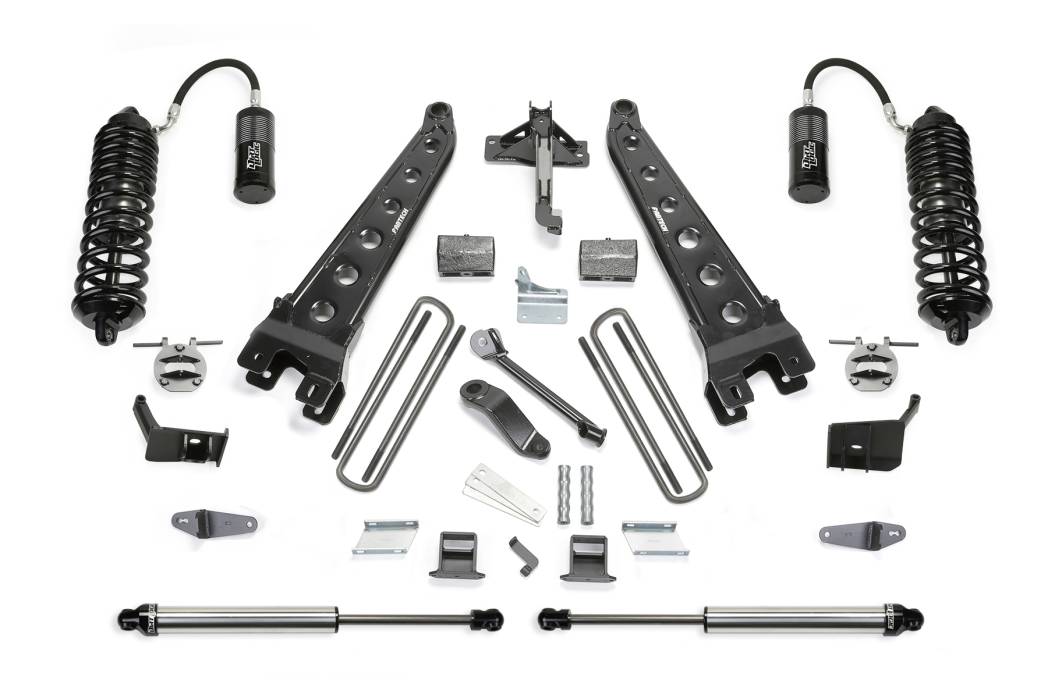

6″ RADIUS ARM SYSTEM W/ FRONT DIRT LOGIC 4.0 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K2287DL

2011-16 FORD F350 4WD

Our patented Radius Arms feature a full tubular structure strengthened by dimple die side plates, with an adjustable alignment cam at the axle to allow caster adjustment. Front lift includes Dirt Logic 4.0 Coilovers. Completing this system is a Trac Bar relocation bracket, Pitman Arm, Sway Bar drops and more. Rear lift is a block & u-bolt kit.

FEATURES

  • Fabtech Replacement Radius Arms
  • Front Dirt Logic 4.0 Coilovers
  • Trac Bar Relocation Bracket
  • Sway Bar Drop Brackets
  • Pitman Arm
  • Rear Block & U-bolt Kit

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22139 COMPONENT BOX
1 FTS22103 REAR BLOCK KIT
1 FTS835234D FRONT DIRT LOGIC 4.0 RESI COILOVER (DRIVER)
1 FTS835234P FRONT DIRT LOGIC 4.0 RESI COILOVER (PASSENGER)
2 FTS810052 REAR DIRT LOGIC 2.25 SHOCK

FOOTNOTES

3. Non dually models only.
27. Front drive shaft modification may be required to clear exhaust on gas motors.

Application List

2011-2016 Ford F350 Super Duty 4WD

Tires & Wheels

Tire Size – 315/70R17 Wheel Size – 17×8 w/ 4 1/2in BS w/minor trimming
Tire Size – 325/65R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 334.6 lbs.
  • W24.0000” x H12.0000” x L48.0000”
