FTSK2373DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Resi Coilovers and Rear DLSS (2021-2023 F150 Pickup 4WD)

2021-2023 Ford F150 Pickup 4WD

K2373DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $6,667.14
Qty:

Description

6″ LIFT KIT W/ FRONT DIRT LOGIC 2.5 RESI COILOVERS & REAR DIRT LOGIC SHOCKS – K2373DL

2021-23 FORD F150 4WD

Fabtech’s world-renowned IFS suspension design for the Ford F150 provides excellent driveability both on and offroad. There is zero bump steer throughout the suspension cycle that helps reduce driver fatigue while improving the overall driveability of the vehicle.

The near-stock track width keeps the tires under the fenders for a clean appearance. Fabtech’s proprietary steering knuckle geometry provides an excellent lock to lock turning radius to maneuver in tight spots.

Heavy-duty 1/4" thick steel crossmembers feature eccentric style alignment cams for easy adjustment. Triple front diff mounts reposition the differential for vibration-free operation at high speed.

The stainless steel Dirt Logic 2.5 Coilovers provide 6" of lift with an outstanding ride quality both on and offroad. They are designed for aggressive offroad use yet have a supple on road feel. Rear Dirt Logic 2.25 shocks aid in damping the vehicle for a balanced ride.

At the rear of the vehicle, the factory 2" block is replaced with a 5" Block and u-bolt system.

Fabtech has addressed all aspects of the suspension for proper wheel travel and lock to lock steering without over cycling. For added confidence, this lift comes with a free 5 year 60,000 mile Powertrain Warranty.

FEATURES

CROSSMEMBERS

1/4" thick steel lower control arm Crossmembers are arched for maximum ground clearance. The welded box design of these Crossmembers provides additional strength to the front suspension.

STEERING KNUCKLES

Fabtech’s extended length ductile iron Steering Knuckles provide zero bump steer throughout the suspension travel. This provides an enhanced driver experience compared to stock. Near stock track width keeps the tires under the fenders for a clean appearance.

DIRT LOGIC 2.5 COILOVERS

Constructed of a stainless steel body with NitroSteel piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

SKID PLATE

A heavy-duty front differential Skid Plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

DIFFERENTIAL MOUNTS

Triple Differential Mounts properly reposition the front diff for the precise CV and driveshaft angle to reduce driveline vibration at high speed.

SWAY BAR MOUNTS

1/4" thick steel drop brackets reposition the front sway bar for the increased ride height. This allows the sway bar link ends to fully cycle without binding throughout the extended travel range.

REAR LIFT BLOCKS

5" tall steel rear lift blocks replace the factory 2" blocks for additional lift without changing the ride quality or load carrying capacity.

REAR U-BOLTS

High quality severe duty U-Bolts are designed to attach the entire rear differential to the vehicle. A critical part that demands the best quality for your vehicle.

REAR DIRT LOGIC 2.25 SHOCKS

The stainless steel body with NitroSteel® piston rod provides maximum corrosion resistance and durability. High quality componentry delivers a superior ride quality both on and offroad. Excellent damping for offroad use.

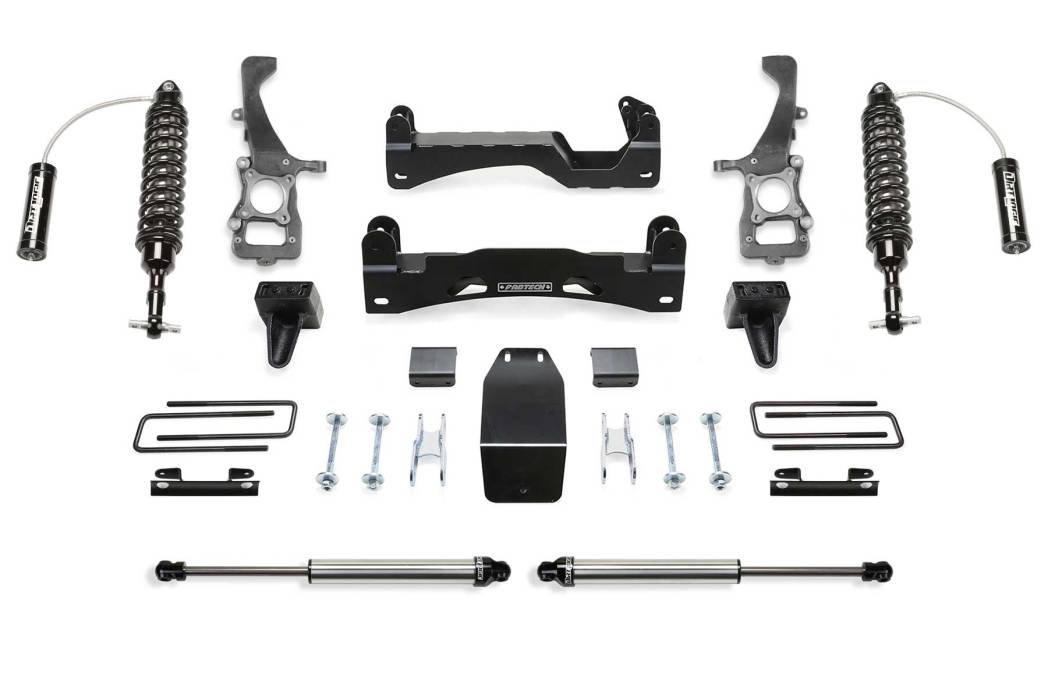

PART NUMBERS

OTY PART # DESCRIPTION
1 FTS22325 COMPONENT BOX 1
1 FTS22326 COMPONENT BOX 2
1 FTS22333 FRONT DIRT LOGIC 2.5 RESI COILOVERS
2 FTS81160 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
47. Fits SuperCrew only.
123. Will not fit Raptor models.
182. Fits gas models only.
213. Does not fit vehicles equipped with Tremor Off-road Package.
227. Does not fit models equipped with CCD (continuously controlled damping) system.
230. Does not fit hybrid models.
257. Does not fit vehicles equipped with Ford onboard scale system.

Application List

2021-2023 Ford F150 Pickup 4WD

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 328.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
