FTSK2405 | Fabtech 4 Inch Basic System With Performance Shocks (2023-2024 F250, F350 Super Duty 4WD Diesel)
2023-2024 Ford F250 Super Duty 4WD | 2023-2024 Ford F350 Super Duty 4WD | Diesel
K2405
Pricing:
$2,138.65
Description
4″ BASIC LIFT KIT – PERFORMANCE SHOCKS – K2405
2023-24 FORD F250/F350 4WD [DIESEL]
This system utilizes the factory radius arms with new heavy duty frame brackets for the budget minded offroader. Lift height is accomplished with Fabtech coil springs in the front and a block and u-bolt kit in the rear. Also included are a track bar relocation bracket, pitman arm and sway bar brackets.

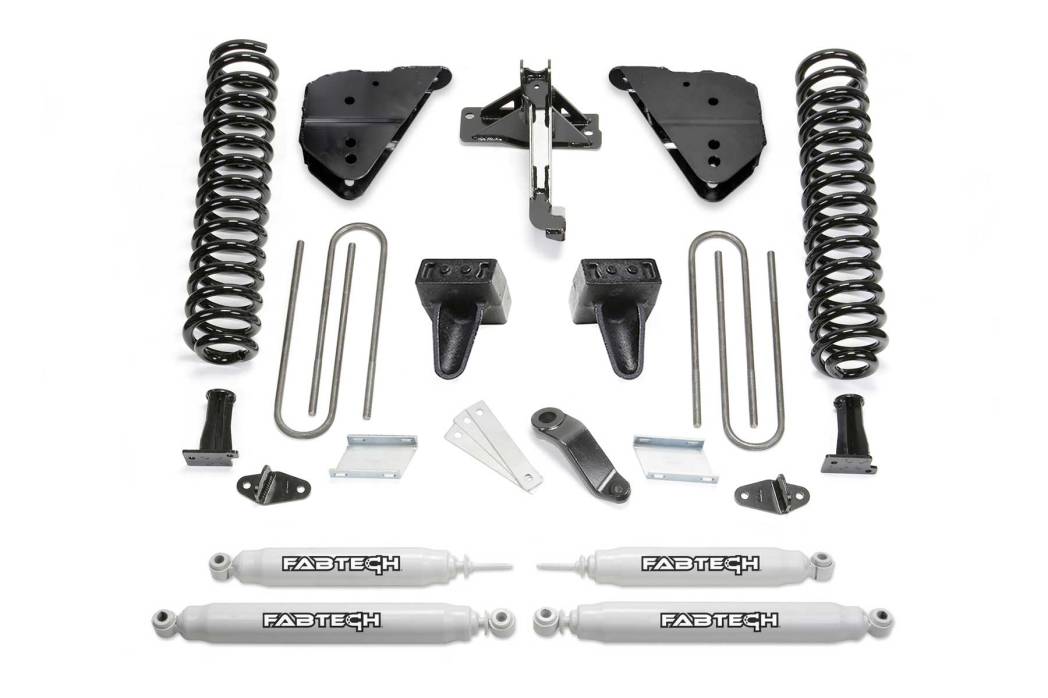

FEATURES
- Fabtech Front Coil Springs
- Track Bar Relocation Bracket
- Sway Bar Drop Brackets
- Pitman Arm
- Rear Block & U-bolt Kit
PART NUMBERS
OTY | PART # | DESCRIPTION |
---|---|---|
1 | FTS22207 | COIL BOX KIT |
1 | FTS22373 | COMPONENT BOX |
1 | FTS22214 | REAR BOX KIT |
2 | FTS7236 | FRONT PERFORMANCE SHOCKS |
2 | FTS7266 | REAR PERFORMANCE SHOCKS |
FOOTNOTES
3. Non dually models only.
42. Will not fit gas motors.
257. Does not fit vehicles equipped with Ford onboard scale system.
Application List
2023-2024 Ford F250 Super Duty 4WD Diesel
2023-2024 Ford F350 Super Duty 4WD Diesel
2023-2024 Ford F350 Super Duty 4WD Diesel
Tires & Wheels
Tire Size – 35/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 35/12.50R18 Wheel Size – 18×9.5 w/ 4 3/4in BS w/minor trimming
Tire Size – 35/12.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Tire Size – 37/12.50R17 Wheel Size – 17×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/12.50R18 Wheel Size – 18×9 w/ 4 3/4in BS w/minor trimming
Tire Size – 37/13.50R20 Wheel Size – 20×9 w/ 5in BS w/minor trimming
Details
- K2405
- K2405
- 674866114630
- Fabtech Motorsports
- New
Categories
Shipping Information
- Item Requires Shipping
- 201.4 lbs.
- W24.0000” x H12.0000” x L48.0000”
- Free Ground Shipping | Exclusions Apply*
