FTSK3086 | Fabtech 6 Inch Basic System With Performance Shocks (2019-2023 Ram 1500 Pickup 4WD New Body)

2019-2023 Dodge Ram 1500 Pickup 4WD | New Body Style

K3086
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $3,341.07
Qty:

Description

6″ BASIC LIFT KIT W/ REAR PERFORMANCE SHOCKS – K3086

2019-23 RAM 1500 4WD

This lift kit is a great choice for Ram owners looking to keep that stock ride yet want big tires and wheels. The factory suspension is relocated with heavy duty bolt on bracketry that will provide years of trouble free service.

The lift kit features Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper factory electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance while the integrated front differential skid plate adds protection to the drivetrain. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for stock load carrying capacity with a great highway ride.

The Basic lift kit includes front coilover spacers that utilize the factory Coilover shocks for a stock like ride and rear Performance twin tube shocks.

FEATURES

CROSSMEMBERS

1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.

STEERING KNUCKLES

Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.

COILOVER SPACERS

Thick wall tubing and 1/4" thick steel is used to build these 6" lift spacers retaining the factory Coilover shocks for a stock ride.

SKID PLATE

A heavy duty front differential skid plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

DIFFERENTIAL MOUNTS

Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range.

SWAY BAR BRACKETS

Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.

REAR COIL SPRING SPACERS

Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.

REAR TRACK BAR BRACKET

The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.

PERFORMANCE SHOCKS

Extended length twin tube shocks provide a good highway ride with the ability to handle offroad use.

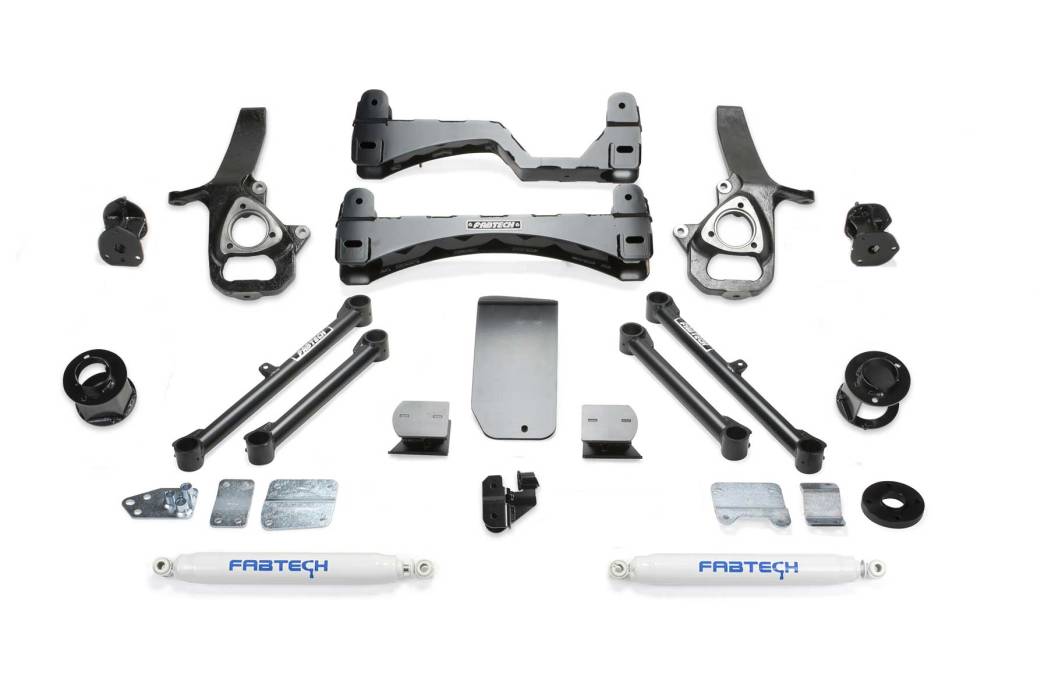

PART NUMBERS

QTY PART # DESCRIPTION
1 FTS23200 COMPONENT BOX 1
1 FTS23201 COMPONENT BOX 2
1 FTS23038 COMPONENT BOX 3
2 FTS7348 REAR PERFORMANCE SHOCKS

FOOTNOTES

14. Can not use OEM wheel and tire.
130. Will not fit factory air suspension.
196. Must use aftermarket 20″ wheels or larger.
200. Does not fit Rebel models.
201. Does not fit vehicles equipped with OEM 22" wheel, and heavy duty bearing option.
203. Does not fit 2019 Ram 1500 classic models.
222. Does not fit models equipped with thermal rear axle.
223. Does not fit models equipped with 2-piece drive shaft.

Tires & Wheels

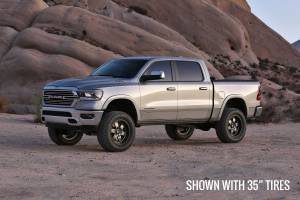

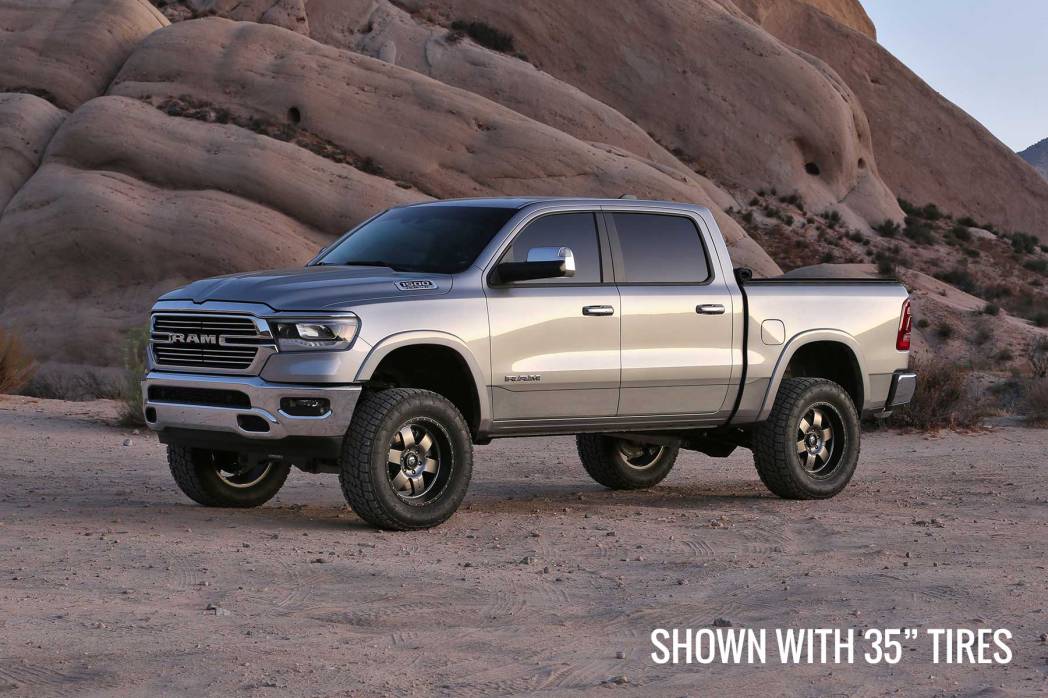

Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming

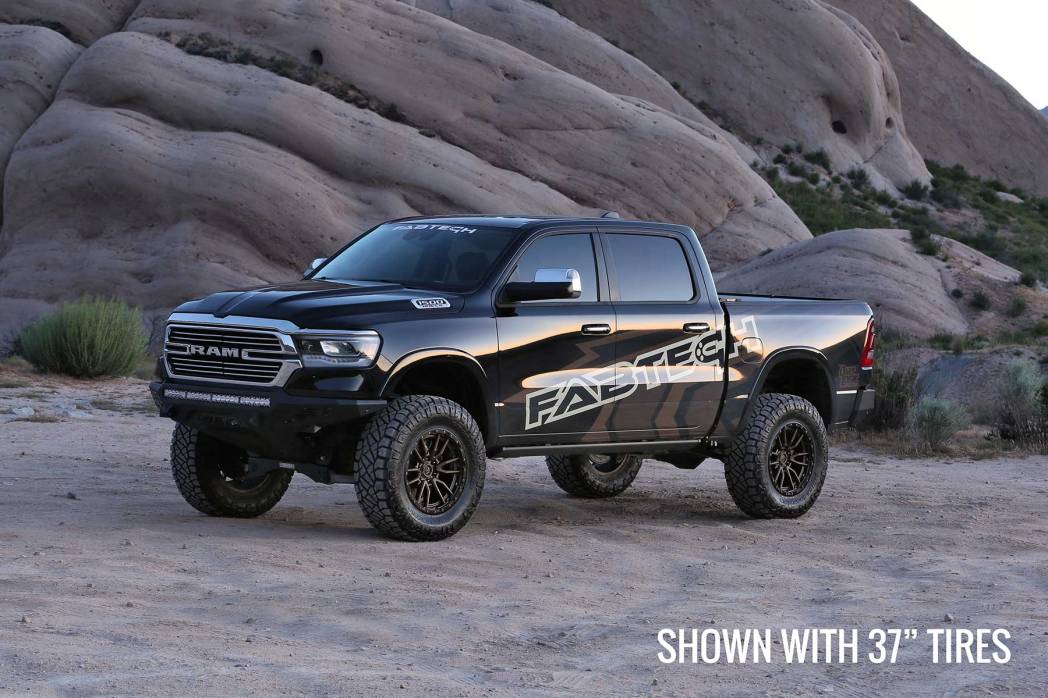

Tire Size – 37/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ cutting

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 267.1 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
