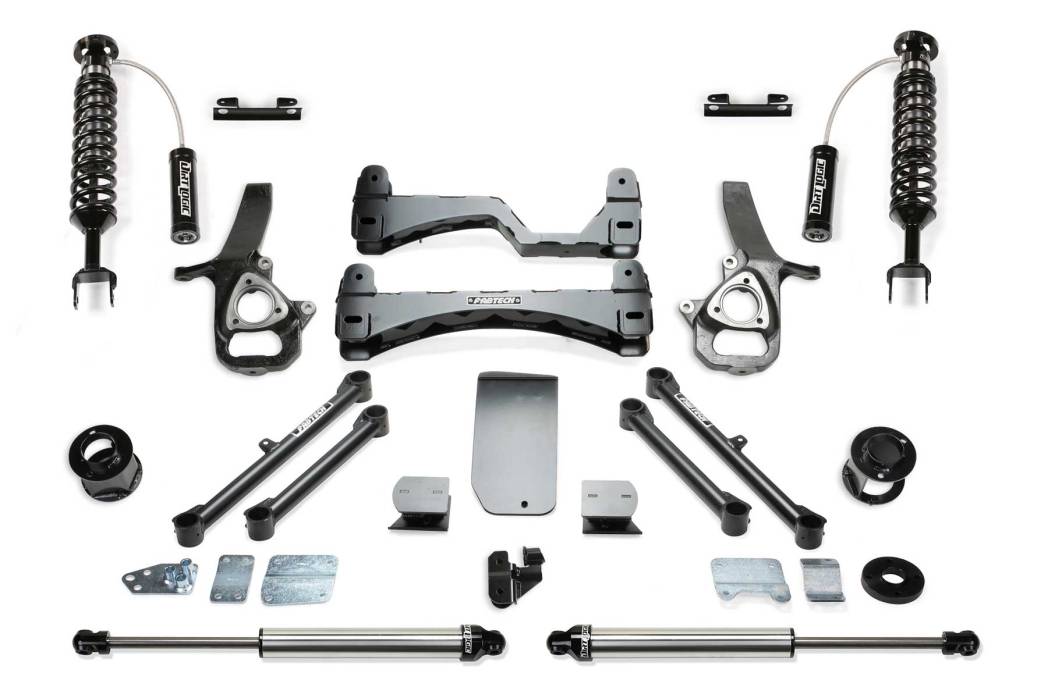

FEATURES

CROSSMEMBERS

1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.

STEERING KNUCKLES

Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.

FRONT DIRT LOGIC 2.5 RESI COILOVERS

Constructed of a stainless steel body and NitroSteel® piston rod these 6" lift Coilovers are the finest quality on the market. They feature aluminum remote reservoirs to help dissipate heat and reduce shock fade. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad.

SKID PLATE

A heavy duty front differential skid plate is constructed of 1/4" thick steel to protect the diff from offroad obstacles.

DIFFERENTIAL MOUNTS

Integrated differential mounts on the crossmembers properly reposition the front diff for the precise CV and driveshaft angle throughout the entire steering and suspension travel range.

SWAY BAR BRACKETS

Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.

REAR COIL SPRING SPACERS

Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.

REAR TRACK BAR BRACKET

The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.

REAR DIRT LOGIC 2.25 SHOCKS

Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.
