FTSK3094DL | Fabtech 6 Inch Performance System With Dirt LogicSS 2.5 Coilovers and Rear Shocks DLSS (2019-2023 Ram 1500 Pickup 2WD New Body)

2019-2023 Dodge Ram 1500 Pickup 2WD | New Body Style

K3094DL
Shipping: Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
Pricing: $5,679.05
Qty:

Description

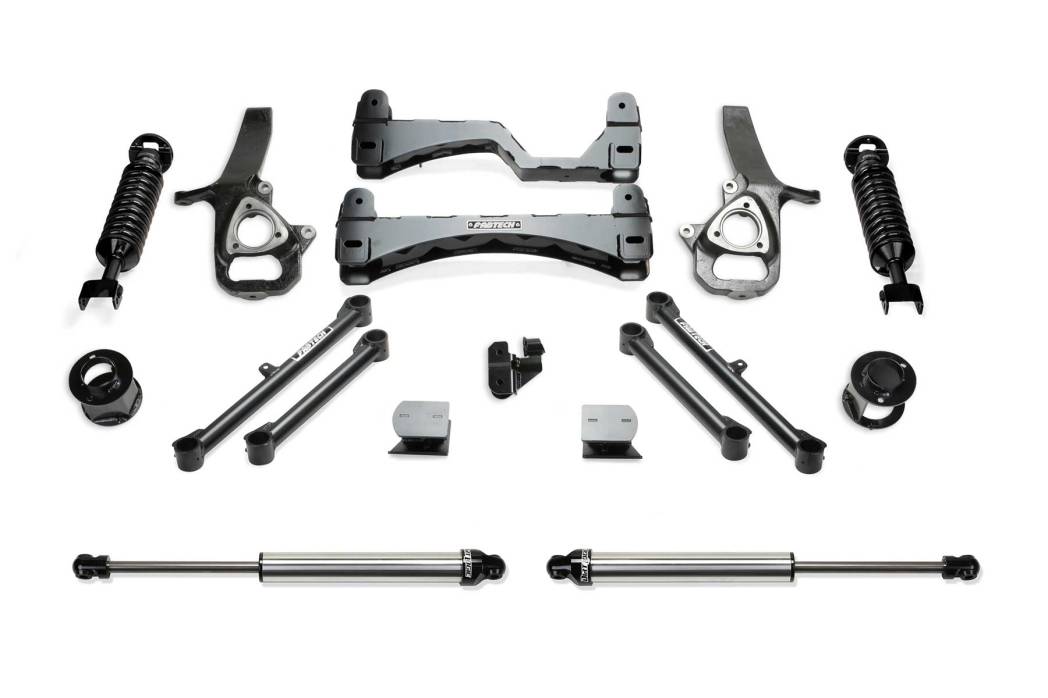

6″ PERFORMANCE LIFT KIT W/ FRONT DIRT LOGIC 2.5 COILOVERS & REAR DIRT LOGIC 2.25 SHOCKS – K3094DL

2019-23 RAM 1500 2WD

This system offers increased ride height utilizing the factory suspension components with heavy duty bracketry. High quality Dirt Logic shocks are included to enhance the damping capacity of the vehicle for offroad use while providing a superior on road ride quality.

The system feature Fabtech’s proven IFS technology with extended length ductile iron steering knuckles for proper electronic stability control functionality. Heavy duty 1/4" thick steel lower control arm crossmembers provide superior ground clearance for adventurous offroad trails. Rear lift is accomplished with steel coil spring spacers that utilize the factory coil springs for proper load capacity and a great highway ride.

The Performance lift kit includes Fabtech’s legendary stainless steel Dirt Logic 2.5 Coilovers and rear Dirt Logic 2.25 shocks for outstanding damping capacity with a superior highway ride.

FEATURES

CROSSMEMBERS

1/4" thick steel lower control arm crossmembers are arched for maximum ground clearance. Four adjustable alignment cams provide a wide range of adjustment. The fully welded box design of these crossmembers provides additional strength to the front suspension.

STEERING KNUCKLES

Extended length ductile iron steering knuckles retain near stock track width keeping the tires under the fenders. These steering knuckles are designed to work in conjunction with the factory ESC for proper functionality at all speeds.

FRONT DIRT LOGIC 2.5 COILOVERS

Constructed of a stainless steel body and NitroSteel® piston rod these 6" lift Coilovers are the finest quality on the market. Extensive ride work was performed to ensure a superior ride on and offroad. Outstanding damping for offroad.

SWAY BAR BRACKETS

Heavy duty drop brackets retain the factory link ends at the correct angle for a positive road feel without creating binding at full droop.

REAR COIL SPRING SPACERS

Steel rear spring spacers utilize the factory coil springs retaining the stock load carrying capacity and ride comfort.

REAR TRACK BAR BRACKET

The bolt on relocation bracket re-centers the rear axle for the new ride height while retaining the factory roll center of the vehicle.

REAR DIRT LOGIC 2.25 SHOCKS

Constructed of a stainless steel body with NitroSteel® piston rod for maximum corrosion resistance and durability. Superior ride quality both on and offroad. Excellent damping for offroad use.

PART NUMBERRS

QTY PART # DESCRIPTION
1 FTS23230 COMPONENT BOX 1
1 FTS23231 COMPONENT BOX 2
1 FTS23157 FRONT DIRT LOGIC 2.5 COILOVERS
2 FTS811442 REAR DIRT LOGIC 2.25 SHOCKS

FOOTNOTES

14. Cannot use OEM wheel and tire.
130. Will not fit factory air suspension.
196. Must use aftermarket 20″ wheels or larger.
200. Does not fit Rebel models.
201. Does not fit vehicles equipped with OEM 22" wheel, and heavy duty bearing option.
203. Does not fit 2019 Ram 1500 classic models.
223. Does not fit models equipped with 2-piece drive shaft.

Application List

2019-2023 Dodge Ram 1500 Pickup 2WD New Body Style

Tires & Wheels

Tire Size – 35/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming
Tire Size – 37/12.50R20 Wheel Size – 20×9 wheels w/ 5” BS w/ minor trimming

Details

Categories

Shipping Information

  • Item Requires Shipping
  • 308.0 lbs.
  • W24.0000” x H12.0000” x L48.0000”
  • Free Ground Shipping Unavailable | Special Handling Is Required (Add To & View In Cart For Details*)
